- RS Stock No.:
- 189-1893
- Mfr. Part No.:
- TS922IPT
- Brand:
- STMicroelectronics
Available to back order for despatch 25/03/2025
Added
Price Each (On a Reel of 4000)
£0.989
(exc. VAT)
£1.187
(inc. VAT)
Units | Per unit | Per Reel* |
4000 + | £0.989 | £3,956.00 |
*price indicative |
- RS Stock No.:
- 189-1893
- Mfr. Part No.:
- TS922IPT
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details

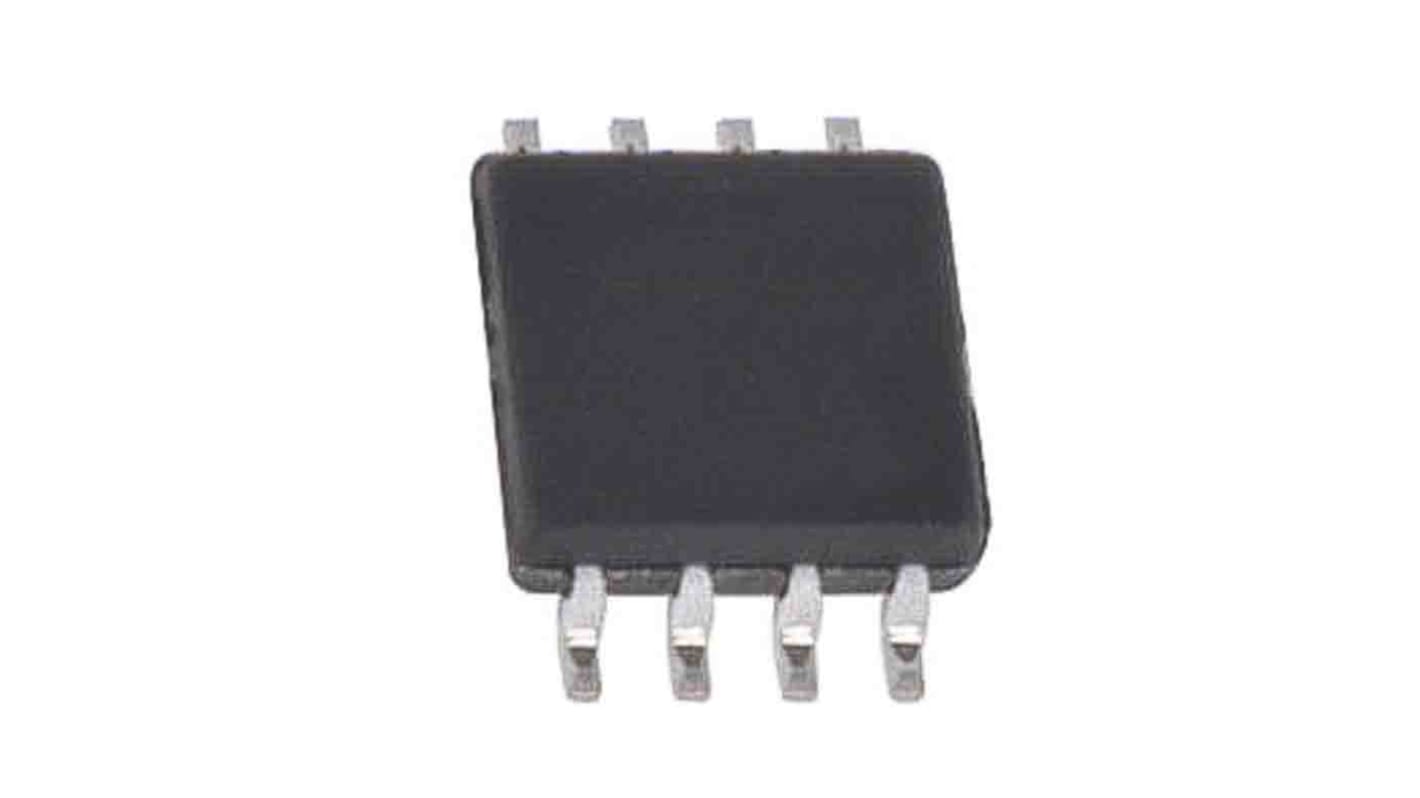

The TS922 and the TS922A devices are rail-to-rail dual BiCMOS operational amplifiers optimized and fully specified for 3 V and 5 V operations. These devices have high output currents which allow low-load impedances to be driven. Very low noise, low distortion, low offset, and a high output current capability make these devices an excellent choice for high quality, low voltage, or battery operated audio systems. The devices are stable for capacitive loads up to 500 pF.
Rail-to-rail input and output
Low noise: 9 nV/√Hz
Low distortion
High output current: 80 mA (able to drive 32 Ω loads)
High-speed: 4 MHz, 1 V/μs
Operating from 2.7 to 12 V
Low input offset voltage: 900 μV max. (TS922A)
ESD internal protection: 2 kV
Latch-up immunity
Low noise: 9 nV/√Hz
Low distortion
High output current: 80 mA (able to drive 32 Ω loads)
High-speed: 4 MHz, 1 V/μs
Operating from 2.7 to 12 V
Low input offset voltage: 900 μV max. (TS922A)
ESD internal protection: 2 kV
Latch-up immunity
Specifications
Attribute | Value |
---|---|
Amplifier Type | Dual Operational |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Number of Channels per Chip | 2 |
Pin Count | 8 |
Typical Single Supply Voltage | 2.7 → 12 V |
Typical Gain Bandwidth Product | 4MHz |
Output Type | Rail to Rail |
Typical Slew Rate | 1.3V/µs |
Maximum Operating Frequency | 1 kHz |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Offset Voltage | 3mV |
Output Current | 80 mA |
Typical Voltage Gain | 200 V/mV |
Maximum Input Voltage | 12 V |
Rail to Rail | Rail to Rail Input/Output |
Dimensions | 4.5 x 3.1 x 1.05mm |
Height | 1.05mm |
Input Offset Current | 30nA |
Length | 4.5mm |
Input Voltage Range | 2.7 → 12 V |
Width | 3.1mm |
Minimum Input Voltage | 2.7 V |
Typical Input Voltage Noise Density | 9nV/√Hz |
