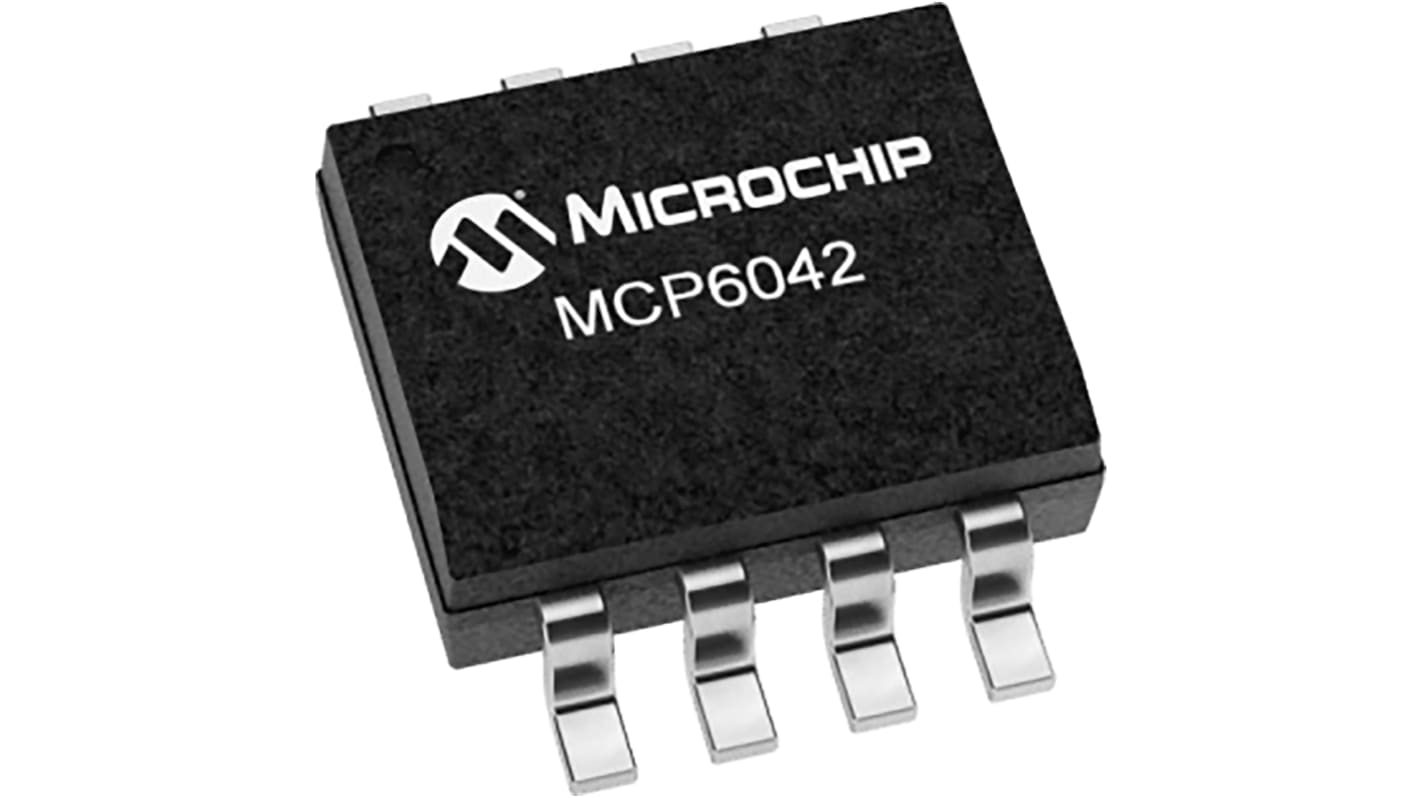

MCP6042T-I/SN Microchip, CMOS, Op Amp, 14kHz, 8-Pin SOIC
- RS Stock No.:
- 177-2870
- Mfr. Part No.:
- MCP6042T-I/SN
- Brand:
- Microchip
Subtotal (1 reel of 3300 units)*
£1,881.00
(exc. VAT)
£2,244.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3300 + | £0.57 | £1,881.00 |
*price indicative
- RS Stock No.:
- 177-2870
- Mfr. Part No.:
- MCP6042T-I/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Amplifier Type | CMOS | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 2 | |
| Pin Count | 8 | |
| Typical Gain Bandwidth Product | 14kHz | |
| Output Type | Rail to Rail | |
| Typical Slew Rate | 3V/ms | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Input Voltage | 6 V | |
| Typical Voltage Gain | 115 dB | |
| Offset Voltage | ±3mV | |
| Output Current | ±30 mA | |
| Typical Input Voltage Noise Density | 170nV/√Hz | |
| Minimum Input Voltage | 1.4 V | |
| Input Offset Current | 1pA | |
| Dimensions | 4.9 x 3.9 x 1.5mm | |
| Input Voltage Range | 1.4 → 6 V | |
| Width | 3.9mm | |
| Height | 1.5mm | |
| Length | 4.9mm | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Amplifier Type CMOS | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Power Supply Type Single | ||
Number of Channels per Chip 2 | ||
Pin Count 8 | ||
Typical Gain Bandwidth Product 14kHz | ||
Output Type Rail to Rail | ||
Typical Slew Rate 3V/ms | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Maximum Input Voltage 6 V | ||
Typical Voltage Gain 115 dB | ||
Offset Voltage ±3mV | ||
Output Current ±30 mA | ||
Typical Input Voltage Noise Density 170nV/√Hz | ||
Minimum Input Voltage 1.4 V | ||
Input Offset Current 1pA | ||
Dimensions 4.9 x 3.9 x 1.5mm | ||
Input Voltage Range 1.4 → 6 V | ||
Width 3.9mm | ||
Height 1.5mm | ||
Length 4.9mm | ||
The MCP6042 dual operational amplifier (op amp) has a gain bandwidth product of 14 kHz with a low typical operating current of 600 nA and an offset voltage that is less than 3 mV. The MCP6042 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6042 operates with a single supply voltage that can be as low as 1.4V, while drawing less than 1.0 of quiescent current per amplifier. The MCP6042 is available in standard 8-lead PDIP, SOIC and MSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment and wearable products.
Low Quiescent Current: 600 nA/amplifier (typical)
Rail-to-Rail Input/Output
Gain Bandwidth Product: 14 kHz (typical)
Wide Supply Voltage Range: 1.4V to 6.0V
Unity Gain Stable
Available in Single, Dual, and Quad
Chip Select (CS) with MCP6043
Available in SOIC and MSOP packages
Rail-to-Rail Input/Output
Gain Bandwidth Product: 14 kHz (typical)
Wide Supply Voltage Range: 1.4V to 6.0V
Unity Gain Stable
Available in Single, Dual, and Quad
Chip Select (CS) with MCP6043
Available in SOIC and MSOP packages
