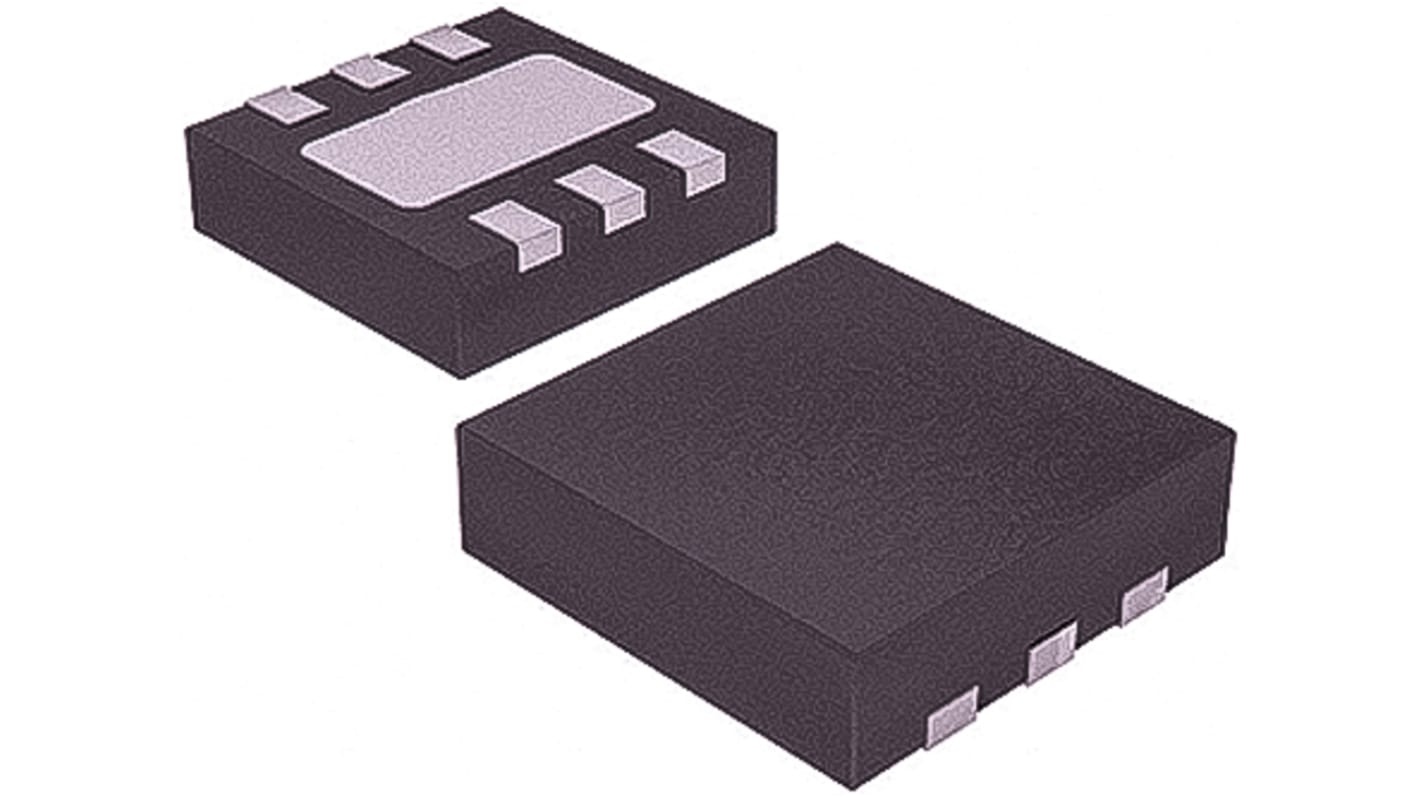

TSU111IQ1T STMicroelectronics, Low Power, Op Amp, RRIO, 11.5kHz, 5 V, 6-Pin DFN

View all Op Amps

Subtotal (1 reel of 3000 units)*

£2,886.00

(exc. VAT)

£3,462.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.962£2,886.00

*price indicative

RS Stock No.:
162-3611
Mfr. Part No.:
TSU111IQ1T
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Amplifier Type

Low Power

Mounting Type

Surface Mount

Package Type

DFN

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

6

Typical Single Supply Voltage

5 V

Typical Gain Bandwidth Product

11.5kHz

Output Type

CMOS

Typical Slew Rate

2.7V/ms

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Typical Voltage Gain

135 dB

Offset Voltage

235µV

Output Current

41 mA, 45 mA

Maximum Input Voltage

5.5 V

Rail to Rail

Rail to Rail Input/Output

Length

1.2mm

Typical Input Voltage Noise Density

220nV/√Hz

Minimum Input Voltage

1.5 V

Dimensions

1.2 x 1.3 x 0.36mm

Height

0.36mm

Width

1.3mm

Input Voltage Range

1.5 → 5.5 V

Input Offset Current

0.05nA

The TSU111 operational amplifier (op amp) offers an ultra low-power consumption of 900 nA typical and 1.2 μA maximum when supplied by 3.3 V. Combined with a supply voltage range of 1.5 V to 5.5 V, these features allow the TSU111 to be efficiently supplied by a coin type Lithium battery or a regulated voltage in low-power applications. The high accuracy of 150 μV max and 11.5 kHz gain bandwidth make the TSU111 ideal for sensor signal conditioning, battery supplied, and portable applications

Submicro ampere current consumption: Icc = 900 nA typ at 25 °C
Low offset voltage: 150 μV max at 25 °C, 235 μV max over full temperature range (-40 to 85 °C)
Low noise over 0.1 to 10 Hz bandwidth: 3.6 μVpp
Low supply voltage: 1.5 V - 5.5 V
Rail-to-rail input and output
Gain bandwidth product: 11.5 kHz typ
Low input bias current: 10 pA max at 25 °C
High tolerance to ESD: 4 kV HBM
