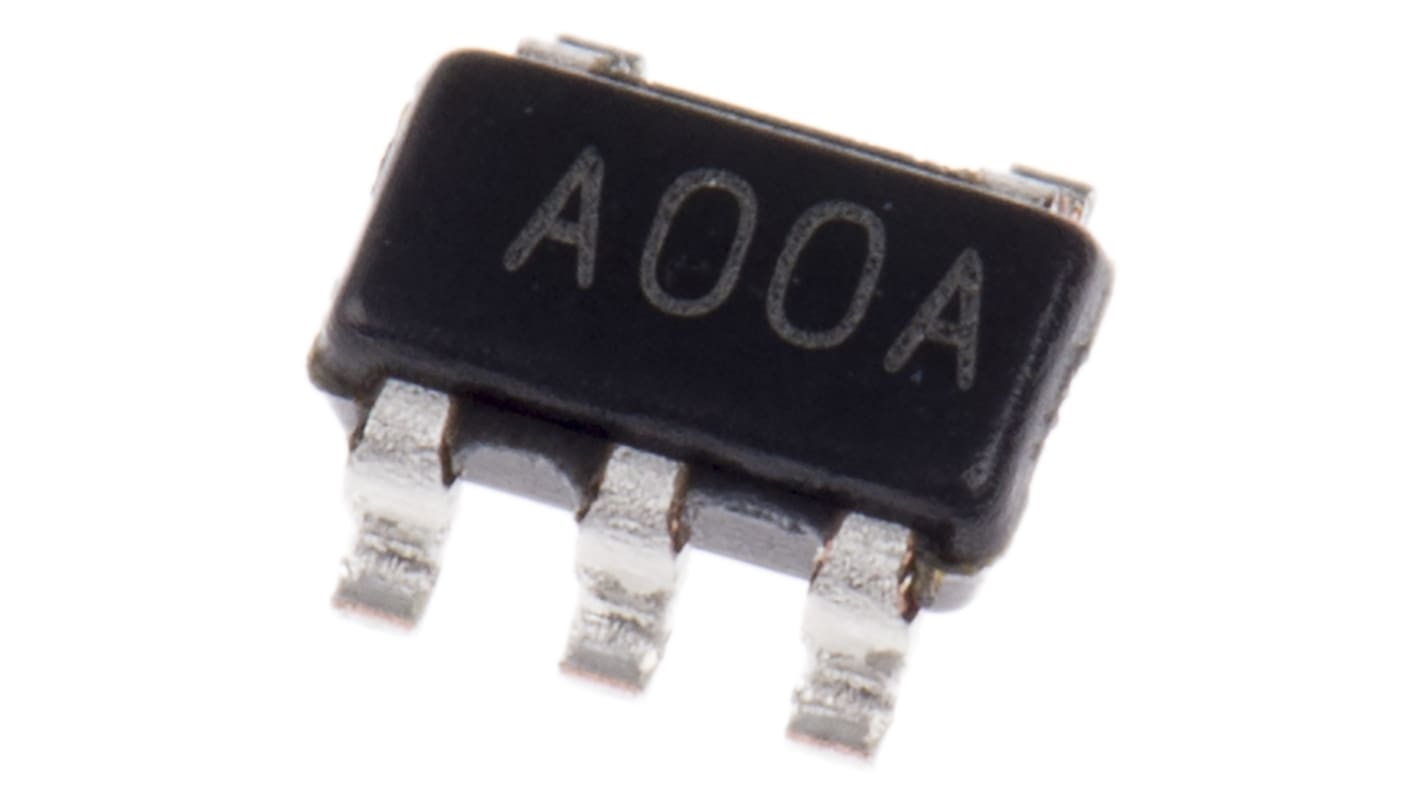

LMC7101AIM5/NOPB Texas Instruments, Precision, Op Amp, RRIO, 1MHz, 5 → 12 V, 5-Pin SOT-23
- RS Stock No.:
- 121-8859
- Mfr. Part No.:
- LMC7101AIM5/NOPB
- Brand:
- Texas Instruments
Available to back order for despatch 19/03/2025
Added
Price Each (On a Reel of 1000)
£1.059
(exc. VAT)
£1.271
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1000 + | £1.059 | £1,059.00 |
| *price indicative | ||
- RS Stock No.:
- 121-8859
- Mfr. Part No.:
- LMC7101AIM5/NOPB
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
CMOS Operational Amplifiers, LMC/LPC Series
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 5 → 12 V |
| Typical Gain Bandwidth Product | 1MHz |
| Typical Slew Rate | 1V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Rail to Rail | Rail to Rail Input/Output |
| Typical Voltage Gain | 110.6 dB |
| Dimensions | 2.92 x 1.6 x 1.02mm |
| Height | 1.02mm |
| Typical Input Voltage Noise Density | 37nV/√Hz |
| Length | 2.92mm |
| Width | 1.6mm |
