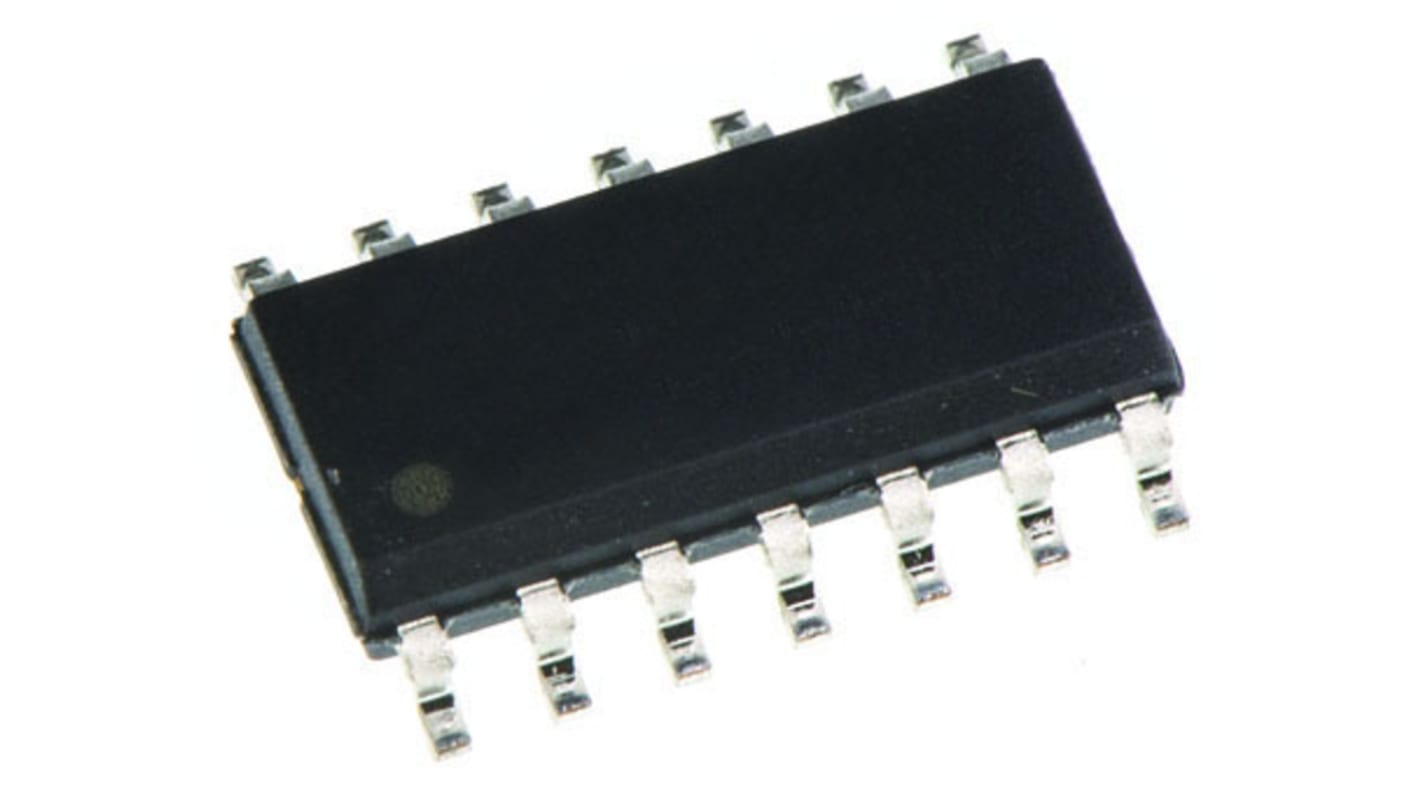

TL074ID Texas Instruments, Op Amp, 3MHz, 14-Pin SOIC
- RS Stock No.:
- 857-935
- Mfr. Part No.:
- TL074ID
- Brand:
- Texas Instruments
153 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£0.78
(exc. VAT)
£0.94
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £0.78 |
| 50 - 99 | £0.74 |
| 100 - 249 | £0.67 |
| 250 - 499 | £0.60 |
| 500 + | £0.57 |
- RS Stock No.:
- 857-935
- Mfr. Part No.:
- TL074ID
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
JFET Input Op Amp, TL070 & TL080 Families
A range of well-established high-performance JFET input, bipolar output operational amplifiers from Texas Instruments featuring low input bias currents and high slew rates. These op amps have low noise and low distortion and are suitable for a wide variety of audio and signal processing applications. The high input impedance makes them an ideal choice where circuit loading must be minimized. Offset adjustment and external compensation options are available with the single TL071 and TL081 devices.
• Low input bias and offset currents
• Wide supply voltage range: ±5 to ±15V
• Low noise: 18nV/√Hz typical at 1 kHz
• High Slew Rate: 13 V/μs typical
• Low Total Harmonic Distortion: 0.003% typical
• Single, Dual and Quad devices available
• Wide supply voltage range: ±5 to ±15V
• Low noise: 18nV/√Hz typical at 1 kHz
• High Slew Rate: 13 V/μs typical
• Low Total Harmonic Distortion: 0.003% typical
• Single, Dual and Quad devices available
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Gain Bandwidth Product | 3MHz |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| Typical Slew Rate | 13V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Rail to Rail | No |
| Typical Voltage Gain | 106 dB |
| Height | 1.58mm |
| Typical Input Voltage Noise Density | 18nV/√Hz |
| Length | 8.65mm |
| Width | 3.91mm |
| Dimensions | 8.65 x 3.91 x 1.58mm |
