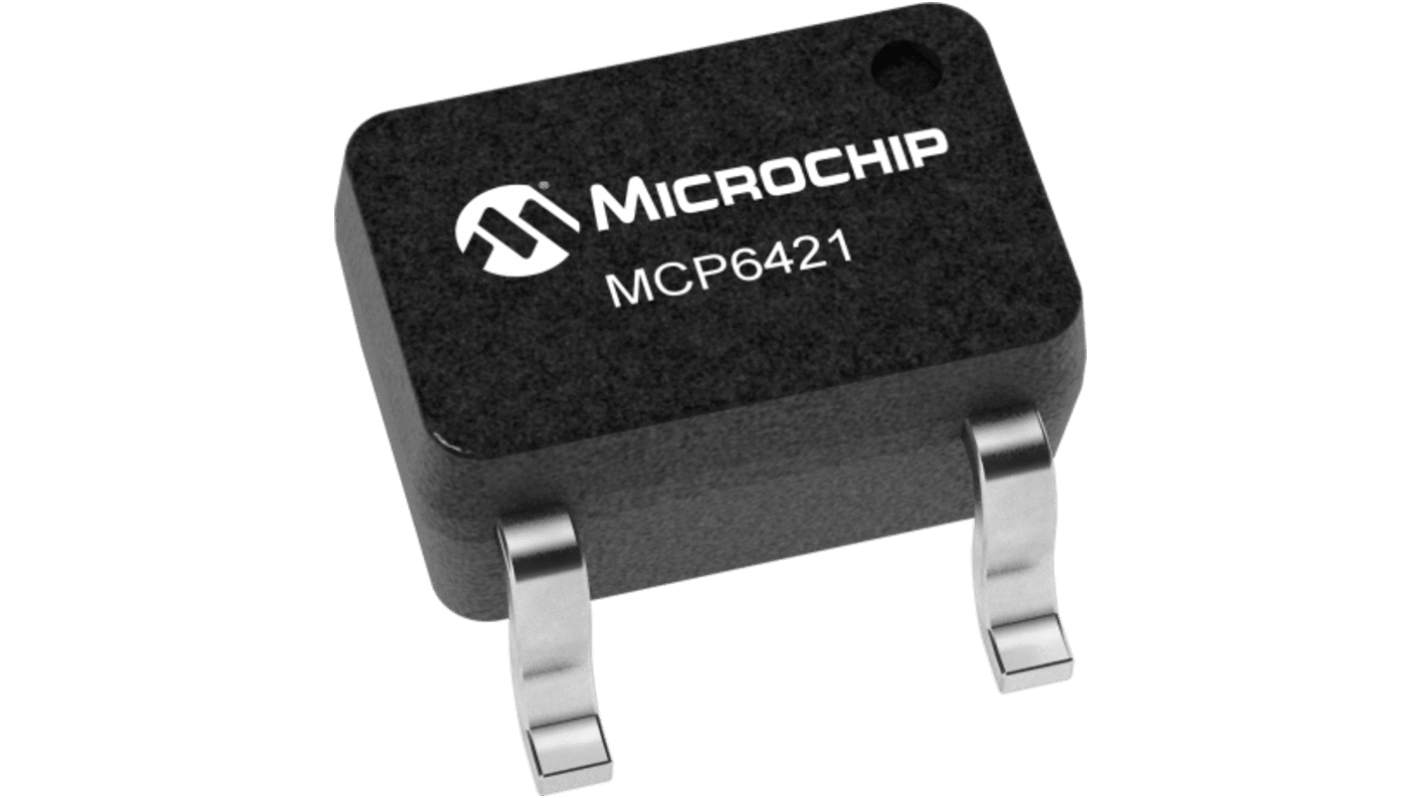

MCP6421T-E/LTY Microchip, Rail to Rail I/O, Op Amps, RRIO, 90kHz, 1.8 → 5.5 V, 5-Pin SC-70
- RS Stock No.:
- 649-457
- Mfr. Part No.:
- MCP6421T-E/LTY
- Brand:
- Microchip
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 649-457
- Mfr. Part No.:
- MCP6421T-E/LTY
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Amplifier Type | Rail to Rail I/O | |
Mounting Type | Through Hole | |
Package Type | SC-70 | |
Power Supply Type | Single | |
Number of Channels per Chip | 1 | |
Pin Count | 5 | |
Typical Single Supply Voltage | 1.8 → 5.5 V | |
Typical Gain Bandwidth Product | 90kHz | |
Rail to Rail | Rail to Rail Input/Output | |
Select all | ||
---|---|---|
Brand Microchip | ||
Amplifier Type Rail to Rail I/O | ||
Mounting Type Through Hole | ||
Package Type SC-70 | ||
Power Supply Type Single | ||
Number of Channels per Chip 1 | ||
Pin Count 5 | ||
Typical Single Supply Voltage 1.8 → 5.5 V | ||
Typical Gain Bandwidth Product 90kHz | ||
Rail to Rail Rail to Rail Input/Output | ||
- COO (Country of Origin):
- TH
The Microchip 90 kHz operational amplifiers function with a single supply voltage as low as 1.8V, draw a maximum quiescent current of 5.5 microamperes per amplifier, and feature low input offset voltage up to plus or minus 1.0 millivolt, along with full rail-to-rail input and output operation.
Rail-to-Rail Input and Output
Unity Gain Stable
No Phase Reversal
Unity Gain Stable
No Phase Reversal
