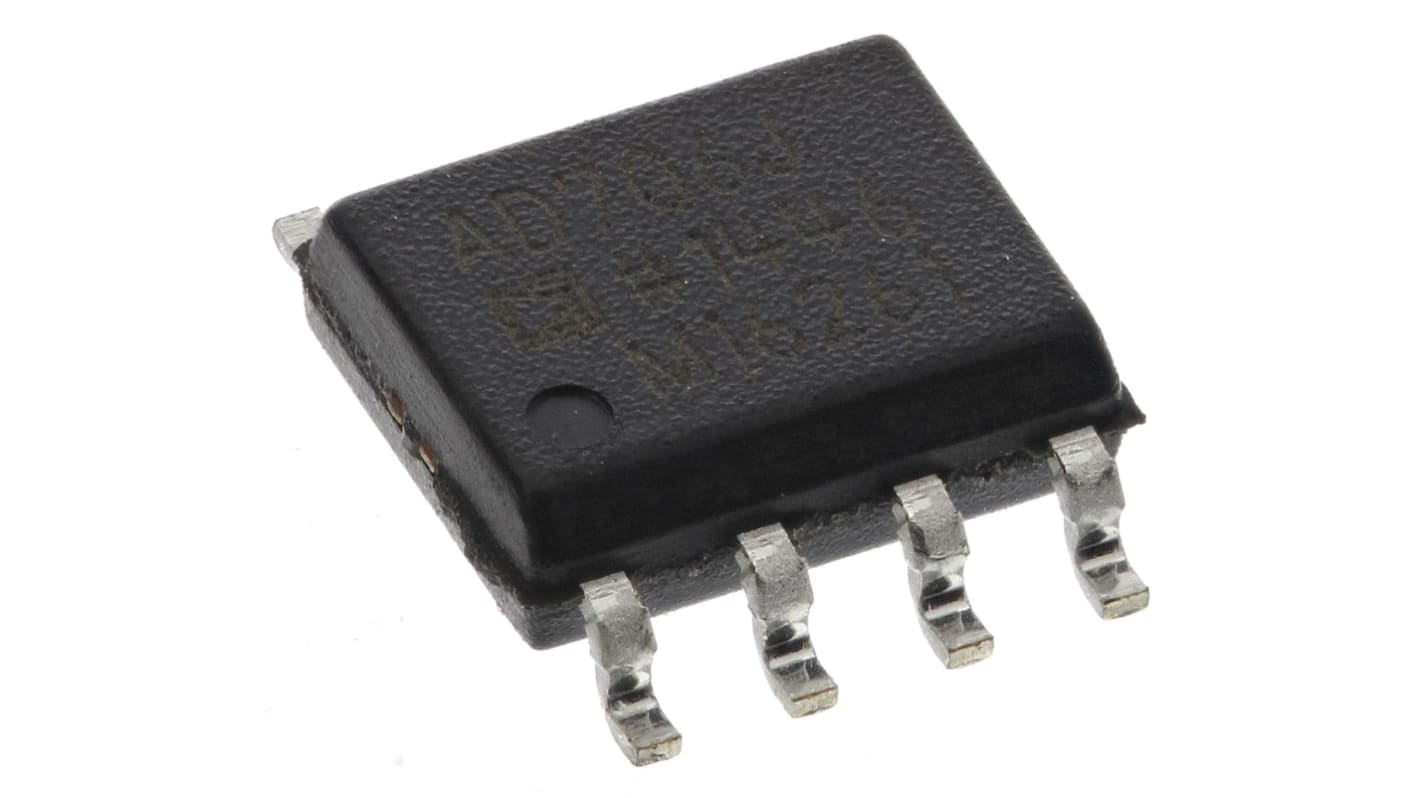

AD706JRZ Analog Devices, Operational Amplifier, 800 kHz, 8-Pin 18V SOIC
- RS Stock No.:
- 195-098
- Mfr. Part No.:
- AD706JRZ
- Brand:
- Analog Devices
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 195-098
- Mfr. Part No.:
- AD706JRZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 800kHz | |
| Maximum Supply Voltage | 18V | |
| Minimum Supply Voltage | 2V | |
| Input Bias Current | 250 pA | |
| Vos - Input Offset Voltage | 150 μV | |
| Slew Rate | 0.15V/μs | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Height | 1.5mm | |
| Series | Operational Amplifier | |
| Automotive Standard | No | |
| Input Offset Current | 250 pA | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 800kHz | ||
Maximum Supply Voltage 18V | ||
Minimum Supply Voltage 2V | ||
Input Bias Current 250 pA | ||
Vos - Input Offset Voltage 150 μV | ||
Slew Rate 0.15V/μs | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Length 5mm | ||
Standards/Approvals No | ||
Height 1.5mm | ||
Series Operational Amplifier | ||
Automotive Standard No | ||
Input Offset Current 250 pA | ||
Precision Op Amps, Analog Devices
Operational Amplifiers, Analog Devices
