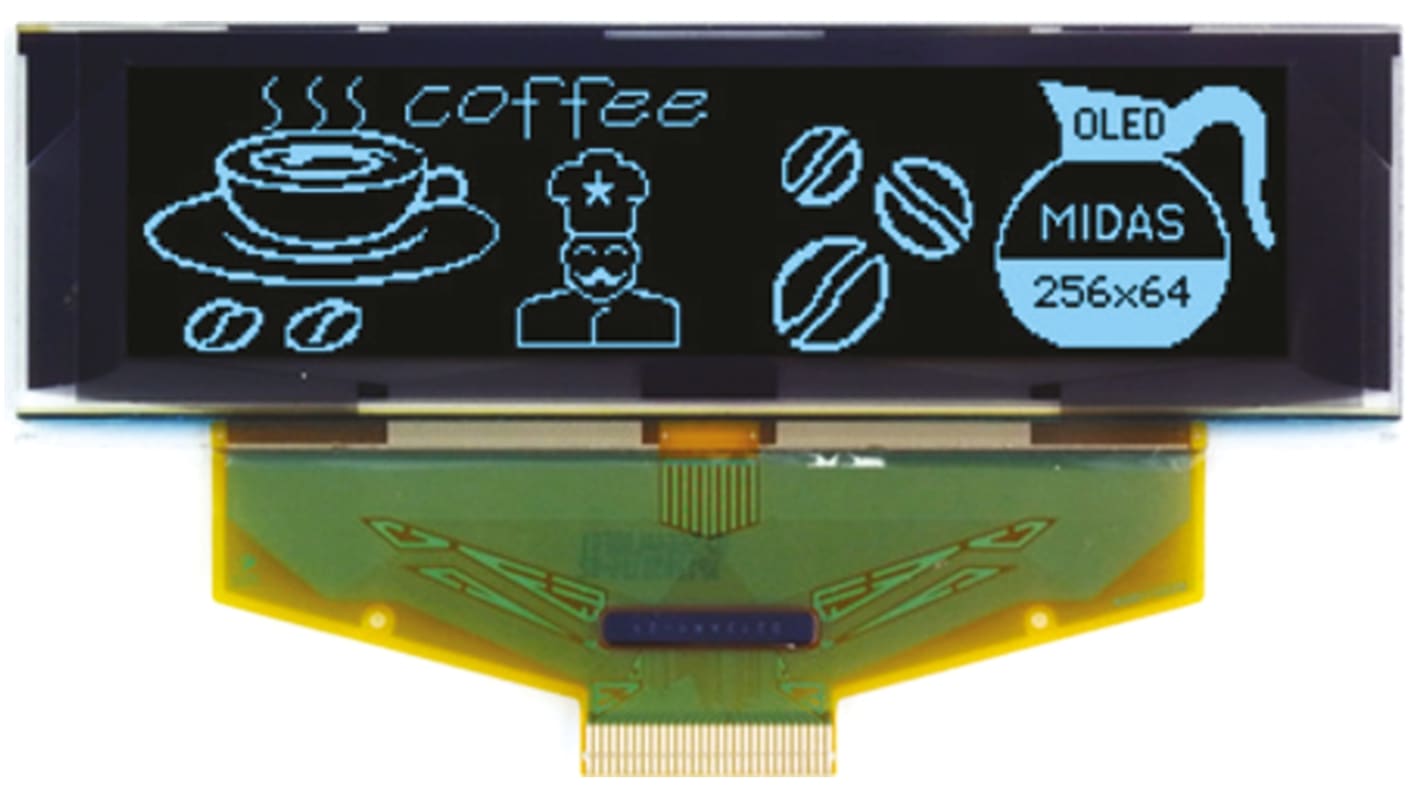

Midas 2.80in Blue Passive matrix OLED Display 256 x 64 TAB Multi Interface

  • RS Stock No. 823-5951
  • Mfr. Part No. MCOT256064AA-BM
  • Brand Midas
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Midas Graphic OLED Displays, TAB

A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours.

Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 2000:1
Operating temperature range: -30 to 70°C
Operating life: 60,000 hours at 25°C
Interface type: Parallel/Serial (823-5948 has I2C only)

Note

Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer’s data for details.

Midas Graphic PMOLED Displays

Specifications
Attribute Value
Diagonal Display Size 2.80in
Viewing Area Dimensions 71.104 x 19.264mm
Matrix Type Passive
Display Colours Blue
Resolution 256 x 64
Contrast Ratio >2000:1
Driver Mounting TAB
Interface Ports Multi
Dimensions 84.0 x 25.8 x 2mm
Depth 2mm
Height 25.8mm
Maximum Operating Temperature +85°C
Operating Temperature Range -30 → +85°C
Viewing Area Width 71.104mm
Minimum Operating Temperature -30°C
Width 84.0mm
Viewing Area Height 19.264mm
Available to back order for despatch 27/05/2020
Price Each
£ 33.54
(exc. VAT)
£ 40.25
(inc. VAT)
Units
Per unit
1 - 4
£33.54
5 - 9
£32.54
10 - 24
£31.56
25 - 49
£30.62
50 +
£29.70
