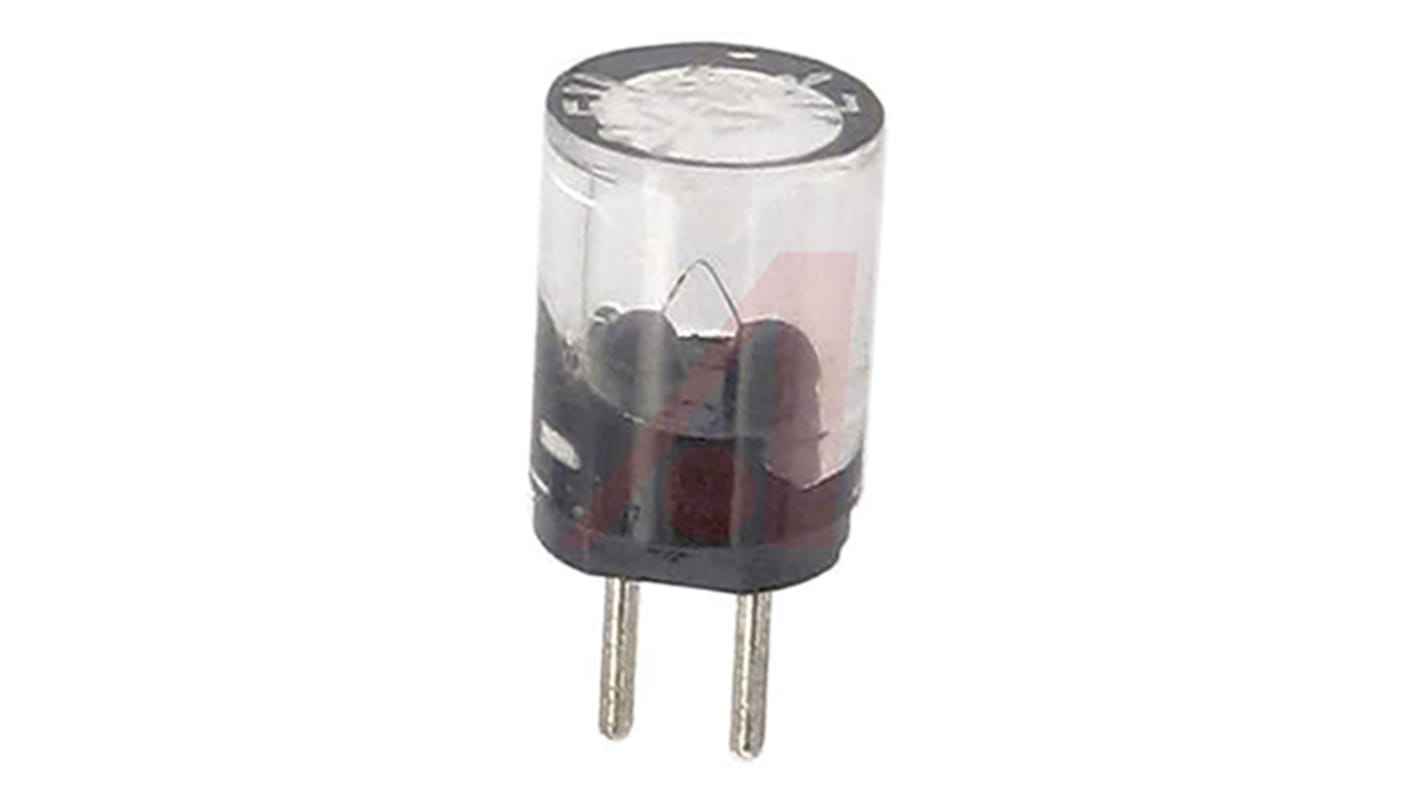

Littelfuse Non-Resettable Fuse, Radial 500mA, 125 V ac, 125V dc
- RS Stock No.:
- 878-3251
- Distrelec Article No.:
- 133-04-847
- Mfr. Part No.:
- 0273.500H
- Brand:
- Littelfuse
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.27
(exc. VAT)
£11.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 91 unit(s) shipping from 27 November 2026
- Plus 100 unit(s) shipping from 29 January 2027
- Plus 100 unit(s) shipping from 12 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.27 |
| 10 - 19 | £8.80 |
| 20 - 24 | £7.88 |
| 25 - 49 | £7.09 |
| 50 + | £6.42 |
*price indicative
- RS Stock No.:
- 878-3251
- Distrelec Article No.:
- 133-04-847
- Mfr. Part No.:
- 0273.500H
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Current Rating | 500mA | |
| Product Type | Non-Resettable Fuse | |
| Lead Orientation | Radial | |
| Voltage | 125V ac, 125V ac | |
| Fuse Speed | FF | |
| Body Material | Tin Plated Copper | |
| Length | 25.4mm | |
| Lead Length | 4.32mm | |
| Height | 8.89mm | |
| Fuse Characteristics | Fast Acting | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Breaking Capacity | 10kA | |
| Diameter | 6.35mm | |
| Standards/Approvals | UL | |
| Series | 273 | |
| Lead Diameter | 635μm | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Current Rating 500mA | ||
Product Type Non-Resettable Fuse | ||
Lead Orientation Radial | ||
Voltage 125V ac, 125V ac | ||
Fuse Speed FF | ||
Body Material Tin Plated Copper | ||
Length 25.4mm | ||
Lead Length 4.32mm | ||
Height 8.89mm | ||
Fuse Characteristics Fast Acting | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Breaking Capacity 10kA | ||
Diameter 6.35mm | ||
Standards/Approvals UL | ||
Series 273 | ||
Lead Diameter 635μm | ||
- COO (Country of Origin):
- MX
Littelfuse MICRO Series Fuses
The MICRO series from Littelfuse were originally developed for the U.S space program to provide reliability in a compact design.
The Littelfuse MICRO series has plug–in or radial lead styles available and a complete range of ampere ratings from 0.002A to 5A to suit a wide variety of design needs.
Features:
High breaking capacity
Plug-in with short or long leads options
All fuses have Thermoplaste Polyamide bodies
