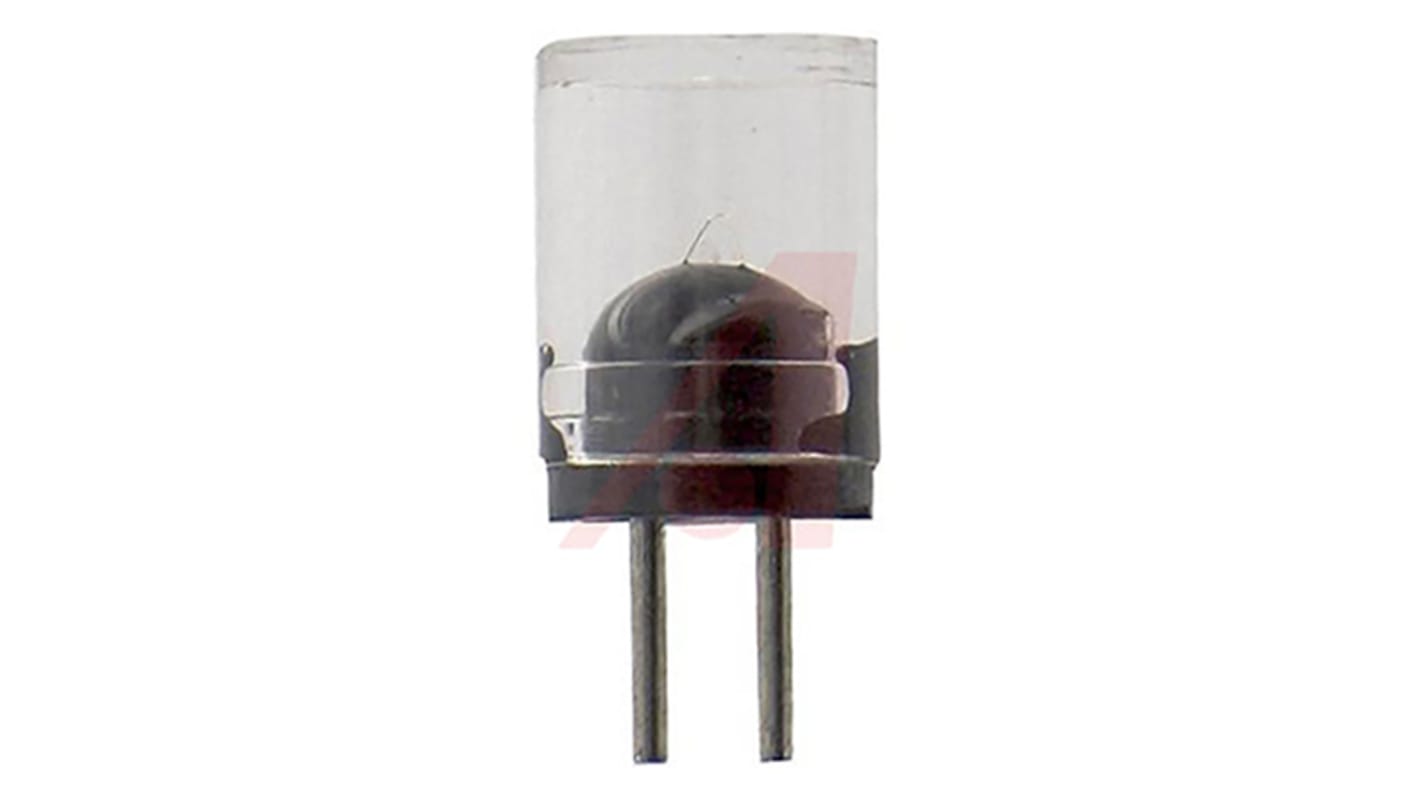

Littelfuse Non-Resettable Fuse, Radial 1.5A, 125 V ac, 125V dc
- RS Stock No.:
- 878-1435
- Mfr. Part No.:
- 027301.5H
- Brand:
- Littelfuse
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 878-1435
- Mfr. Part No.:
- 027301.5H
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Current Rating | 1.5A | |
| Product Type | Non-Resettable Fuse | |
| Lead Orientation | Radial | |
| Voltage | 125V ac, 125V ac | |
| Fuse Speed | FF | |
| Body Material | Tin Plated Copper | |
| Lead Length | 4.32mm | |
| Length | 1in | |
| Height | 8.89mm | |
| Minimum Operating Temperature | -55°C | |
| Fuse Characteristics | Fast Acting | |
| Maximum Operating Temperature | 85°C | |
| Breaking Capacity | 10kA | |
| Diameter | 6.35mm | |
| Standards/Approvals | UL | |
| Series | 273 | |
| Lead Diameter | 0.025in | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Current Rating 1.5A | ||
Product Type Non-Resettable Fuse | ||
Lead Orientation Radial | ||
Voltage 125V ac, 125V ac | ||
Fuse Speed FF | ||
Body Material Tin Plated Copper | ||
Lead Length 4.32mm | ||
Length 1in | ||
Height 8.89mm | ||
Minimum Operating Temperature -55°C | ||
Fuse Characteristics Fast Acting | ||
Maximum Operating Temperature 85°C | ||
Breaking Capacity 10kA | ||
Diameter 6.35mm | ||
Standards/Approvals UL | ||
Series 273 | ||
Lead Diameter 0.025in | ||
Littelfuse MICRO Series Fuses
The MICRO series from Littelfuse were originally developed for the U.S space program to provide reliability in a compact design.
The Littelfuse MICRO series has plug–in or radial lead styles available and a complete range of ampere ratings from 0.002A to 5A to suit a wide variety of design needs.
Features:
High breaking capacity
Plug-in with short or long leads options
All fuses have Thermoplaste Polyamide bodies
