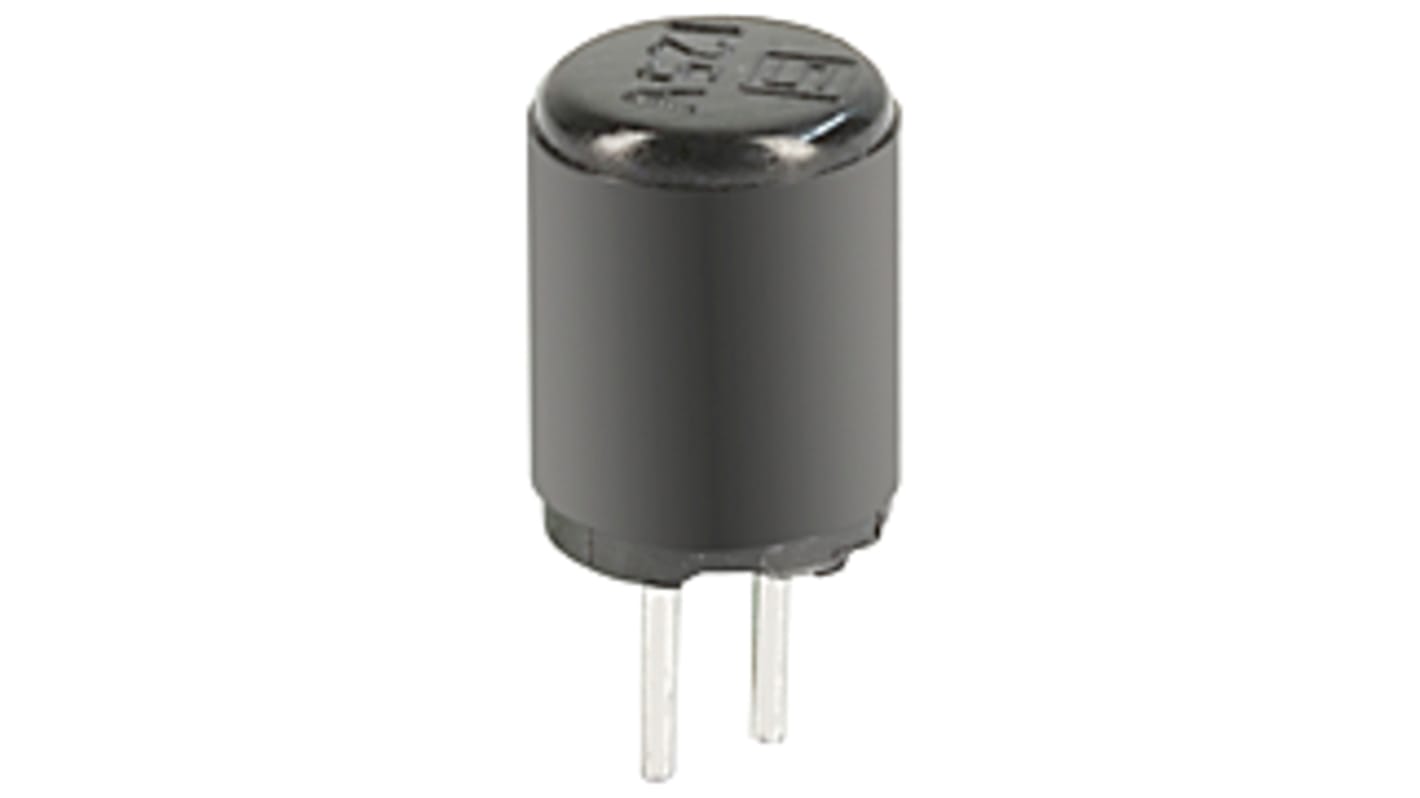

Schurter Non-Resettable Fuse 5 A, 125 V ac/dc
- RS Stock No.:
- 865-7840
- Mfr. Part No.:
- 0034.4228
- Brand:
- Schurter
Subtotal (1 pack of 10 units)*
£15.90
(exc. VAT)
£19.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 820 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.59 | £15.90 |
*price indicative
- RS Stock No.:
- 865-7840
- Mfr. Part No.:
- 0034.4228
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | Non-Resettable Fuse | |
| Current Rating | 5 A | |
| Voltage | 125 V ac/dc | |
| Fuse Speed | F | |
| Body Material | Thermoplastic | |
| Lead Length | 8.8mm | |
| Length | 18.8mm | |
| Width | 4.3 mm | |
| Height | 8.8mm | |
| Fuse Characteristics | Fast Acting | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Breaking Capacity | 100A | |
| Diameter | 6.4 mm | |
| Standards/Approvals | UL, RoHS | |
| Series | MSF 125 | |
| Lead Diameter | 0.62mm | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type Non-Resettable Fuse | ||
Current Rating 5 A | ||
Voltage 125 V ac/dc | ||
Fuse Speed F | ||
Body Material Thermoplastic | ||
Lead Length 8.8mm | ||
Length 18.8mm | ||
Width 4.3 mm | ||
Height 8.8mm | ||
Fuse Characteristics Fast Acting | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Breaking Capacity 100A | ||
Diameter 6.4 mm | ||
Standards/Approvals UL, RoHS | ||
Series MSF 125 | ||
Lead Diameter 0.62mm | ||
- COO (Country of Origin):
- CH
Schurter MSF Quick Acting F
Schurter MSF series sub miniature fuses are directly solder able on printed circuit boards. The MSF series has a thermoplastic body and tin-plated copper terminals. All fuses are highly reliable and extremely good quality.
Quick Acting F
6.4mm
Various models available
All fuses have Thermoplaste Polyamide bodies
