Schurter Non-Resettable Fuse 630mA, 125V ac/dc
- RS Stock No.:
- 777-7511
- Mfr. Part No.:
- 3404.0008.11
- Brand:
- Schurter
Bulk discount available
Subtotal (1 unit)*
£0.76
(exc. VAT)
£0.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 257 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.76 |
| 10 - 24 | £0.69 |
| 25 - 49 | £0.61 |
| 50 - 99 | £0.58 |
| 100 + | £0.53 |
*price indicative
- RS Stock No.:
- 777-7511
- Mfr. Part No.:
- 3404.0008.11
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | Non-Resettable Fuse | |
| Current Rating | 630mA | |
| Voltage | 125V ac/dc | |
| Fuse Speed | F | |
| Body Material | Thermoplastic | |
| Width | 3.1mm | |
| Height | 2.6mm | |
| Minimum Operating Temperature | 125°C | |
| Fuse Characteristics | Fast Acting | |
| Package Type | Plastic Bag | |
| Breaking Capacity | 100A | |
| Maximum Operating Temperature | -40°C | |
| Depth | 7.4mm | |
| Standards/Approvals | REACH, UL 248-14, CE, RoHS, CSA | |
| Series | OMF 125 | |
| Terminal Material | Copper | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type Non-Resettable Fuse | ||
Current Rating 630mA | ||
Voltage 125V ac/dc | ||
Fuse Speed F | ||
Body Material Thermoplastic | ||
Width 3.1mm | ||
Height 2.6mm | ||
Minimum Operating Temperature 125°C | ||
Fuse Characteristics Fast Acting | ||
Package Type Plastic Bag | ||
Breaking Capacity 100A | ||
Maximum Operating Temperature -40°C | ||
Depth 7.4mm | ||
Standards/Approvals REACH, UL 248-14, CE, RoHS, CSA | ||
Series OMF 125 | ||
Terminal Material Copper | ||
- COO (Country of Origin):
- CH

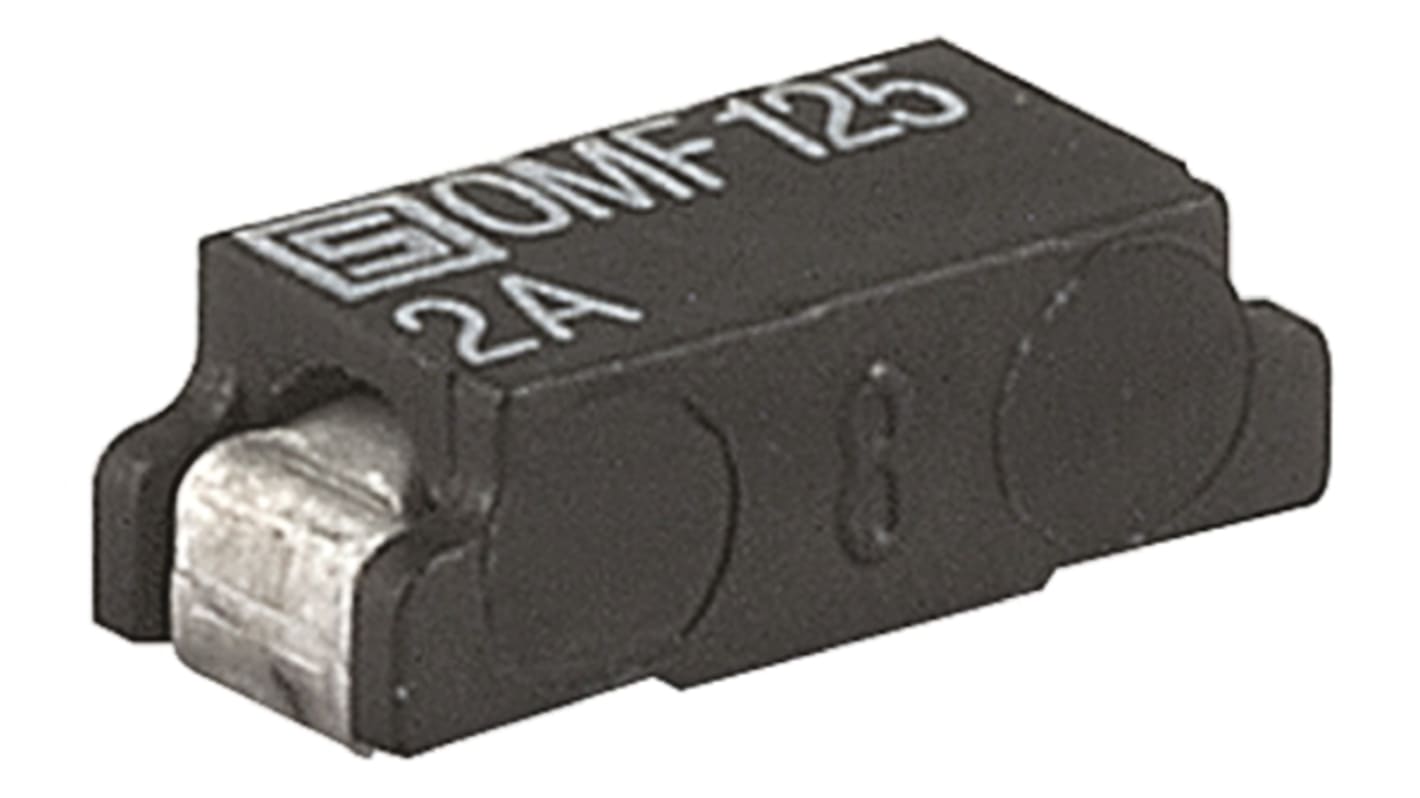

Schurter OMF 125 Series Surface Mount Fuses
Schurter OMF 125 series surface mount high breaking capacity fuses are quick acting and compact. The OMF 125 fuse series is suitable for a wide range of applications, including industrial and domestic electronics, medical equipment and power supplies.
Directly solderable on printed circuit boards
Low melting l2t values
Fast interruption
Compact design
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
