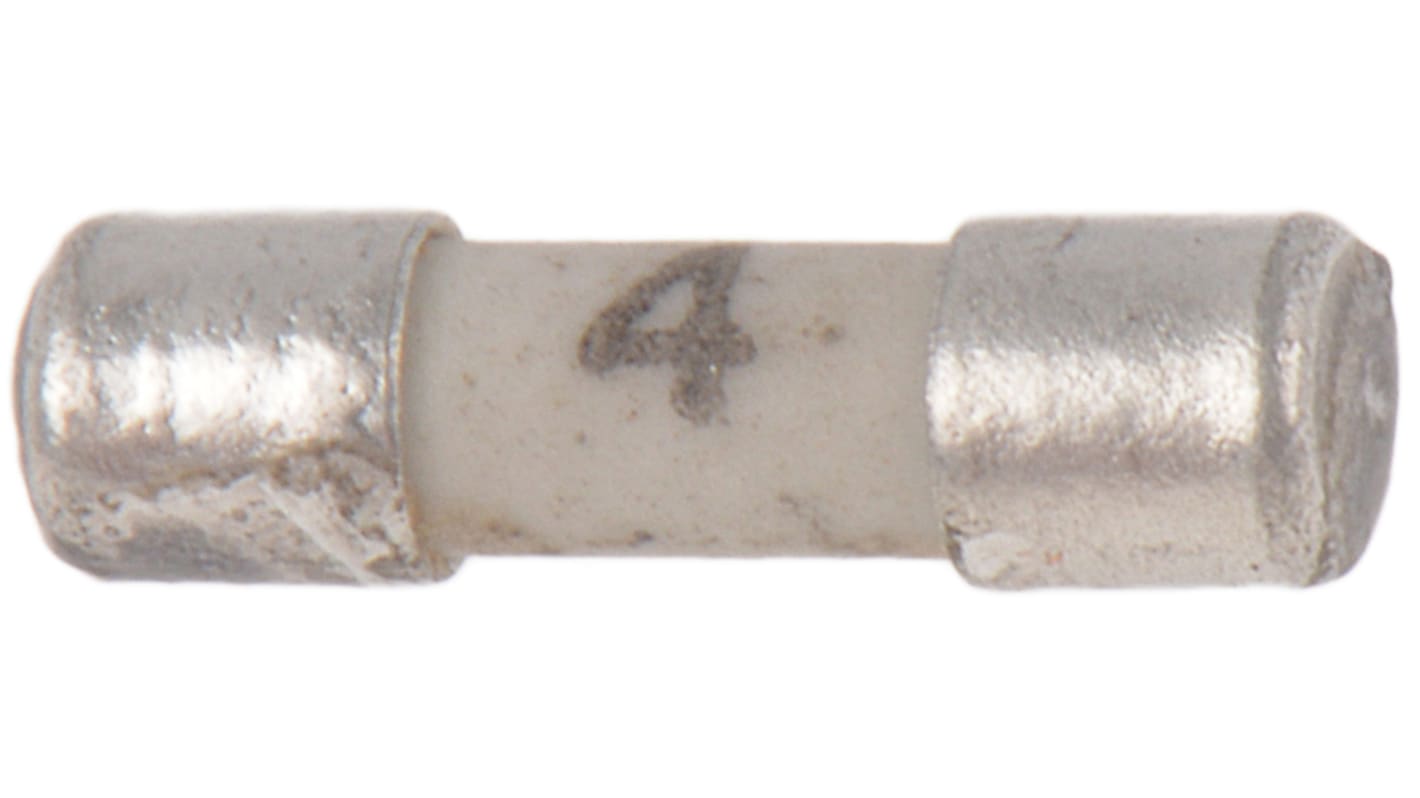

SchurterSMD Non Resettable Fuse 4A, 125V ac/dc
- RS Stock No.:
- 782-3730
- Mfr. Part No.:
- 7010.9870.63
- Brand:
- Schurter
360 In stock - FREE next working day delivery available
50 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£1.658
(exc. VAT)
£1.99
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £1.658 | £16.58 |
| 50 - 90 | £1.602 | £16.02 |
| 100 - 240 | £1.504 | £15.04 |
| 250 - 490 | £1.388 | £13.88 |
| 500 + | £1.295 | £12.95 |
| *price indicative | ||
- RS Stock No.:
- 782-3730
- Mfr. Part No.:
- 7010.9870.63
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
Product Details
Schurter Quick Acting Miniature Fuses
Schurter quick acting high breaking capacity miniature fuses that can be directly soldered to printed circuit boards. Particularly suited to applications such as telecoms, industrial electronics and household appliances.
Fuses with a high breaking capacity
The SMD base is mounted on PCBs by IR reflow or vapour phase
The ’pin-type’ mounting socket is wave soldered
Ceramic body, brass; tin-plated cap
The SMD base is mounted on PCBs by IR reflow or vapour phase
The ’pin-type’ mounting socket is wave soldered
Ceramic body, brass; tin-plated cap
Approvals
UL; CSA
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
Specifications
Attribute | Value |
|---|---|
| Current Rating | 4A |
| Voltage Rating | 125V ac/dc |
| Fuse Speed | F |
| Body Material | Ceramic |
| Body Length | 7mm |
| Body Width | 2mm |
| Breaking Capacity at Maximum Voltage Rating | 300 A @ 125 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Material | Tin Plated Copper Alloy |
| Dimensions | 7 x 2 Dia.mm |
