Bulk discount available
Subtotal (1 pack of 10 units)*
£2.46
(exc. VAT)
£2.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,200 unit(s) ready to ship
- Plus 190 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £0.246 | £2.46 |
100 - 240 | £0.22 | £2.20 |
250 - 490 | £0.20 | £2.00 |
500 - 990 | £0.178 | £1.78 |
1000 + | £0.16 | £1.60 |
*price indicative
- RS Stock No.:
- 767-5052
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Current Rating | 3.15A | |
Lead Orientation | Radial | |
Voltage Rating | 250V ac | |
Fuse Speed | T | |
Body Material | Thermoplastic | |
Body Length | 8.35mm | |
Body Width | 4.3mm | |
Body Height | 7.7mm | |
Wire Length | 22mm | |
Wire Pitch | 5.08mm | |
Breaking Capacity at Maximum Voltage Rating | 35 A @ 250 V ac | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +125°C | |
Wire Diameter | 0.62mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Current Rating 3.15A | ||
Lead Orientation Radial | ||
Voltage Rating 250V ac | ||
Fuse Speed T | ||
Body Material Thermoplastic | ||
Body Length 8.35mm | ||
Body Width 4.3mm | ||
Body Height 7.7mm | ||
Wire Length 22mm | ||
Wire Pitch 5.08mm | ||
Breaking Capacity at Maximum Voltage Rating 35 A @ 250 V ac | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Wire Diameter 0.62mm | ||
- COO (Country of Origin):
- TW

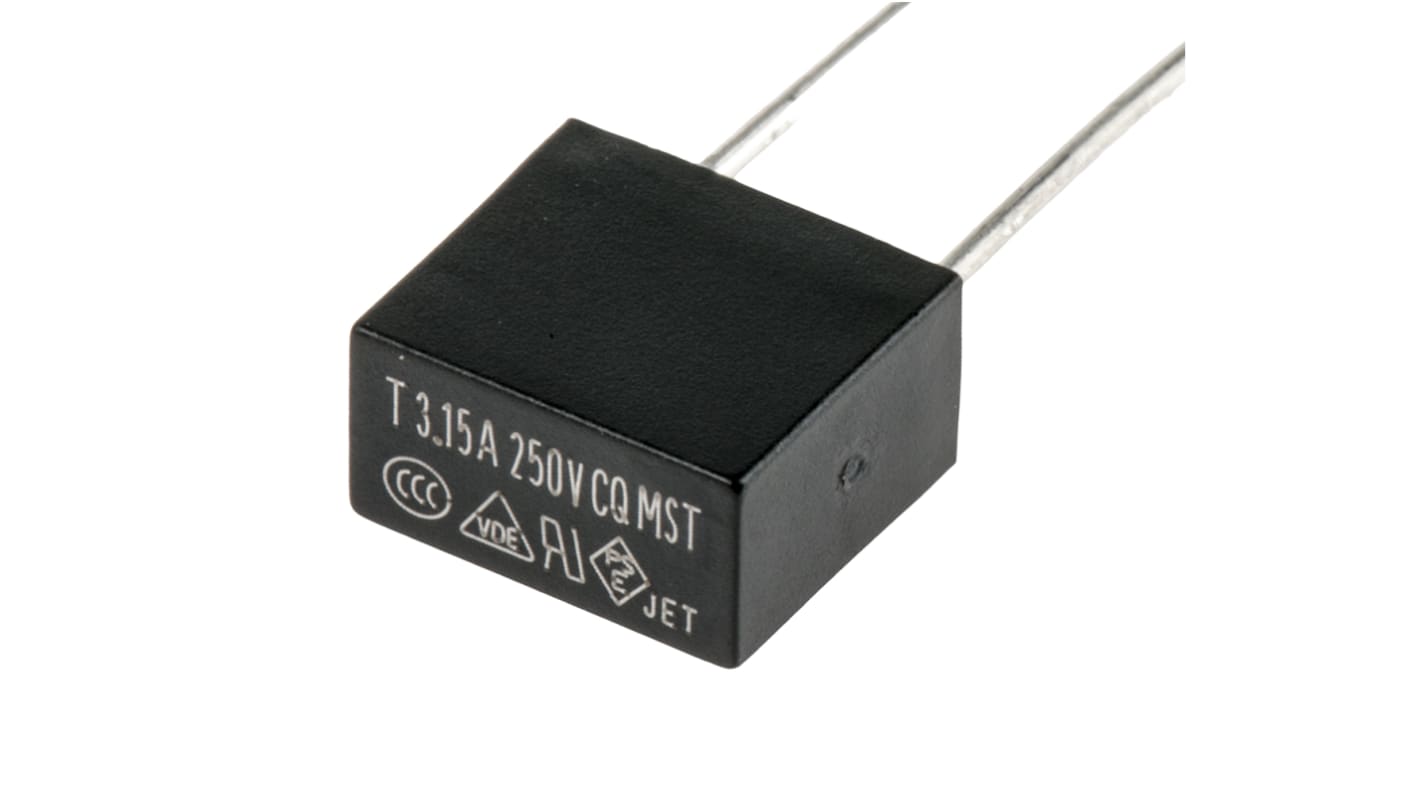

RS PRO Non-Resettable Radial Slow Acting Micro Fuse (TE5)
A thermoplastic slow acting fuse (slow blow fuse) intended to protect against short circuits, power surges and mismatched loads to avoid permanent damage to sensitive electronics and electrical systems.
Slow acting fuses, sometimes referred to as a slow blow or time delay fuse, is a type of fuse designed to withstand temporary surges in current above its current rating. Slow acting fuse are particularly useful to protect against short circuits where there is a sustained surge in power above the current rating.
This slow blow fuse is designed to withstand currents up to 3.15A and voltages of up to 250V. Lightweight and built for PCB mounting the time lag fuse can be directly attached to the circuit board using the Tin plated Copper pins.
Features and Benefits
TE5 size radial pin micro fuse
Slow acting fuse
Base and cap in black thermoplastic rated to UL 94-V0
Round Tin plated Copper Pins
Vibration MIL-STD-202G
Salt spray MIL-STD-202G
Insulation resistance MIL-STD-202G
Resistance to solder heat MIL-STD-202G
Thermal shock MIL-STD-202G
Slow acting fuse
Base and cap in black thermoplastic rated to UL 94-V0
Round Tin plated Copper Pins
Vibration MIL-STD-202G
Salt spray MIL-STD-202G
Insulation resistance MIL-STD-202G
Resistance to solder heat MIL-STD-202G
Thermal shock MIL-STD-202G
Standards and Approvals: SEMKO, VDE, TUV, CSA, UL, CCC, KTL, PSE, RoHS
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
All fuses have Thermoplaste Polyamide bodies
