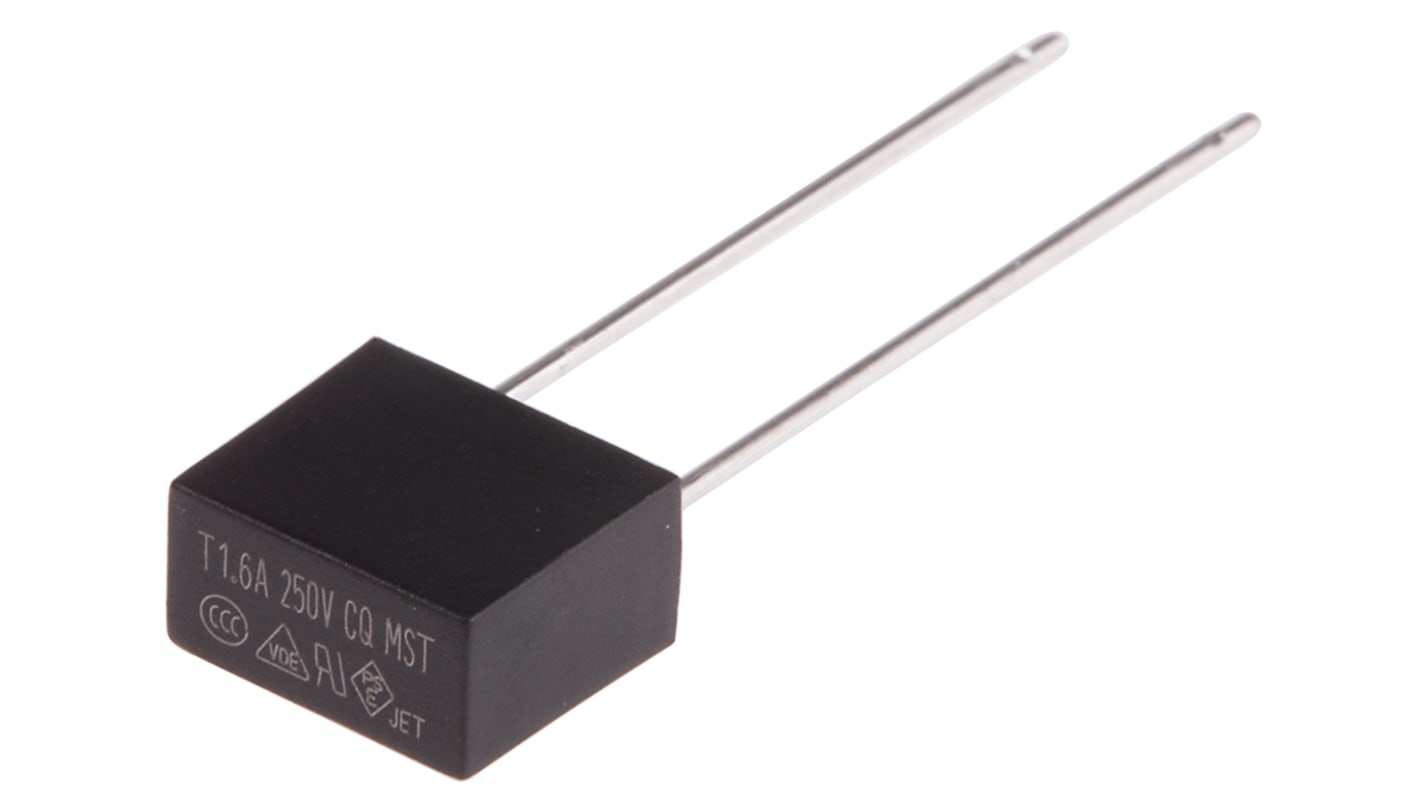

RS PROPC Board Non Resettable Fuse, Radial 1.6A, 250V ac
- RS Stock No.:
- 767-5046
- Brand:
- RS PRO
630 In stock - FREE next working day delivery available
290 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.239
(exc. VAT)
£0.287
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 240 | £0.239 | £2.39 |
| 250 - 490 | £0.233 | £2.33 |
| 500 - 990 | £0.174 | £1.74 |
| 1000 - 1990 | £0.164 | £1.64 |
| 2000 + | £0.155 | £1.55 |
| *price indicative | ||
- RS Stock No.:
- 767-5046
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Slow Blow TE5 Fuses
RS slow blow TE5 fuses are a convenient and reliable solution to a vast array of application requirements.
Base and cap in black thermoplastic, UL 94-V0
Round pins in tin-plated copper
Vibration MIL-STD-202G, Method 201 (10-55Hz x 3 axis / no load)
Salt spray MIL-STD-202G, Method 101, Test Condition B (48 hours)
Insulation resistance MIL-STD-202G, Method 302, Test Condition A (After Opening) 10,000 ohms minimum
Resistance to solder heat MIL-STD-202G, Material 210, Test Condition B (10 sec @ 260°C)
Thermal shock MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
Round pins in tin-plated copper
Vibration MIL-STD-202G, Method 201 (10-55Hz x 3 axis / no load)
Salt spray MIL-STD-202G, Method 101, Test Condition B (48 hours)
Insulation resistance MIL-STD-202G, Method 302, Test Condition A (After Opening) 10,000 ohms minimum
Resistance to solder heat MIL-STD-202G, Material 210, Test Condition B (10 sec @ 260°C)
Thermal shock MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
All fuses have Thermoplaste Polyamide bodies
Specifications
Attribute | Value |
|---|---|
| Current Rating | 1.6A |
| Lead Orientation | Radial |
| Voltage Rating | 250V ac |
| Fuse Speed | T |
| Body Material | Thermoplastic |
| Body Length | 8.35mm |
| Body Width | 4.3mm |
| Body Height | 7.7mm |
| Wire Length | 22mm |
| Wire Pitch | 5.08mm |
| Breaking Capacity at Maximum Voltage Rating | 35 A @ 250 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Wire Diameter | 0.62mm |
