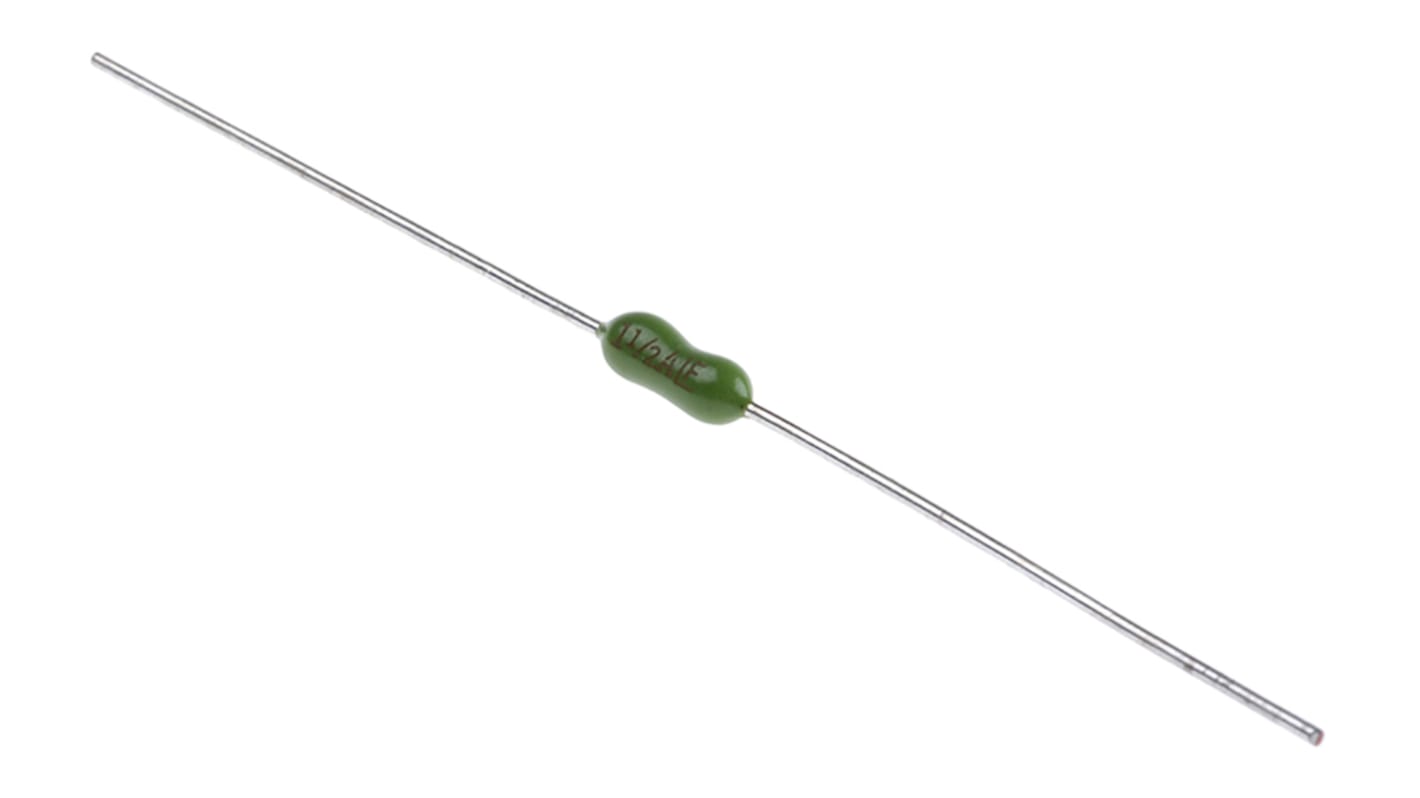

Littelfuse PC Board Non Resettable Fuse, Axial 1.5A, 125V ac/dc
- RS Stock No.:
- 541-3271
- Mfr. Part No.:
- 025101.5HAT1L
- Brand:
- Littelfuse
160 In stock - FREE next working day delivery available
70 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 10)
£0.787
(exc. VAT)
£0.944
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.787 | £7.87 |
| 50 - 240 | £0.675 | £6.75 |
| 250 - 490 | £0.61 | £6.10 |
| 500 - 990 | £0.516 | £5.16 |
| 1000 + | £0.453 | £4.53 |
*price indicative
- RS Stock No.:
- 541-3271
- Mfr. Part No.:
- 025101.5HAT1L
- Brand:
- Littelfuse
Technical Reference
Legislation and Compliance
Product Details
Littelfuse 251 Series Fast-acting
Littelfuse 251 series very fast-acting fuses are designed to meet an extensive array of performance characteristics in a space-saving subminiature package. Suitable for applications such as LCD monitors, audio/video systems, lighting systems and medical equipment.
Approvals
UL
All fuses have Thermoplaste Polyamide bodies
Specifications
Attribute | Value |
|---|---|
| Current Rating | 1.5A |
| Lead Orientation | Axial |
| Voltage Rating | 125V ac/dc |
| Fuse Speed | FF |
| Body Material | Ceramic |
| Body Diameter | 2.8mm |
| Body Height | 7.11mm |
| Wire Length | 27.78mm |
| Breaking Capacity at Maximum Voltage Rating | 300 A @ 125 V dc, 50 A @ 125 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Wire Diameter | 0.64mm |
