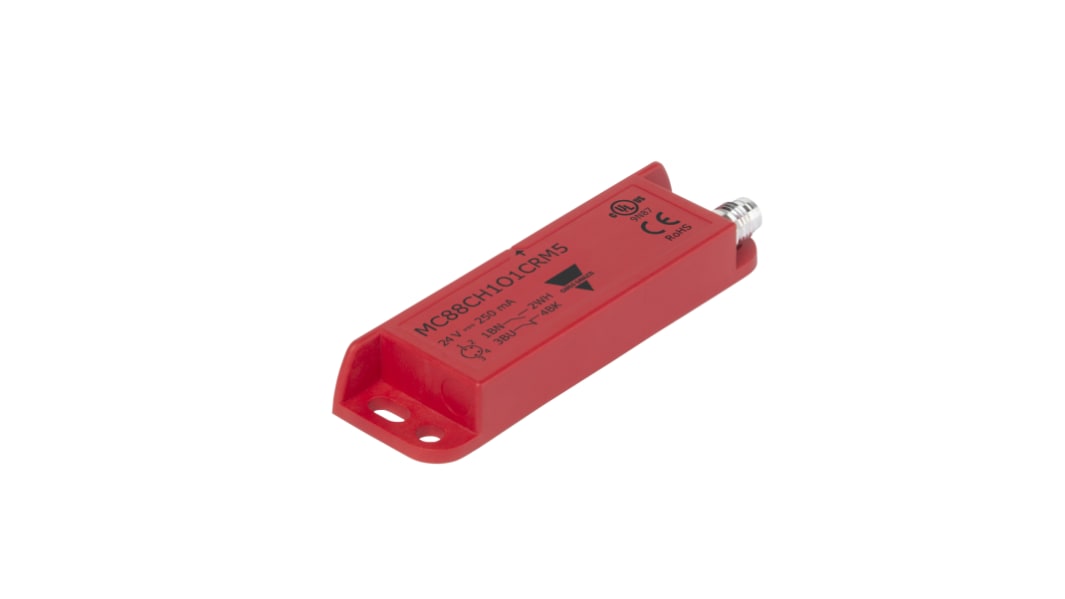

Carlo Gavazzi MC88C Series Magnetic Actuator, Plastic Housing, 24V dc, 2 NO, 1 NO/1 NC, 2 NO/1 NC
- RS Stock No.:
- 276-3295
- Mfr. Part No.:
- MC88CM1
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£13.16
(exc. VAT)
£15.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.16 |
*price indicative
- RS Stock No.:
- 276-3295
- Mfr. Part No.:
- MC88CM1
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Actuator | |
| Body Style | Rectangular | |
| Safety Contacts | 2 NO, 1 NO/1 NC, 2 NO/1 NC | |
| Housing Material | Plastic | |
| Actuator Type | Magnetic | |
| Safety Category | EN ISO 13849-1 | |
| Housing Colour | Red | |
| Sensor Principle | Magnetic | |
| Switching Current | 0.25A | |
| Actuator Included | Yes | |
| Series | MC88C | |
| Switching Distance | 18 mm | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 24V ac | |
| IP Rating | IP67, IP69K | |
| Length | 88mm | |
| Depth | 13mm | |
| Width | 25mm | |
| Standards/Approvals | 2014/30/EU Electromagnetic Compatibility Directive, 2011/65/UE RoHS Directive, 2014/35/EU LVD Directive, 2006/42/CE Machinery Directive, EN/IEC 60947-5-1 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Actuator | ||
Body Style Rectangular | ||
Safety Contacts 2 NO, 1 NO/1 NC, 2 NO/1 NC | ||
Housing Material Plastic | ||
Actuator Type Magnetic | ||
Safety Category EN ISO 13849-1 | ||
Housing Colour Red | ||
Sensor Principle Magnetic | ||
Switching Current 0.25A | ||
Actuator Included Yes | ||
Series MC88C | ||
Switching Distance 18 mm | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 24V ac | ||
IP Rating IP67, IP69K | ||
Length 88mm | ||
Depth 13mm | ||
Width 25mm | ||
Standards/Approvals 2014/30/EU Electromagnetic Compatibility Directive, 2011/65/UE RoHS Directive, 2014/35/EU LVD Directive, 2006/42/CE Machinery Directive, EN/IEC 60947-5-1 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- LT
The Carlo Gavazzi Safety magnetic actuator is a MC88C series actuator. This safety magnetic actuator has rectangular plastic housing and it is used to monitor the position of hinged, sliding or removable guards of industrial applications. Carlo Gavazzi safety actuator stop or disconnect the dangerous motions, if the mobile protections are opened or displaced. They are suitable for safety gates applications up to safety category 4, PLe according to EN ISO 13849 1 with suitable logic safety module. This MC88C series actuators are the right answer in harsh industrial environments with damp and dusty condition.
High performance
CE and cULus Approvals
IP69K degree of protection
Reverse polarity protection
