RS PRO Video, Data & Voice Wiring Tester of Data
- RS Stock No.:
- 624-6347
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 624-6347
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Tone | No | |
| Dimensions | 114 x 76 x 19mm | |
| Weight | 27g | |
| Display Type | LED | |
| Height | 19mm | |
| Length | 114mm | |
| Width | 76mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Tone No | ||
Dimensions 114 x 76 x 19mm | ||
Weight 27g | ||
Display Type LED | ||
Height 19mm | ||
Length 114mm | ||
Width 76mm | ||
- COO (Country of Origin):
- US
RS-232 PockeTester

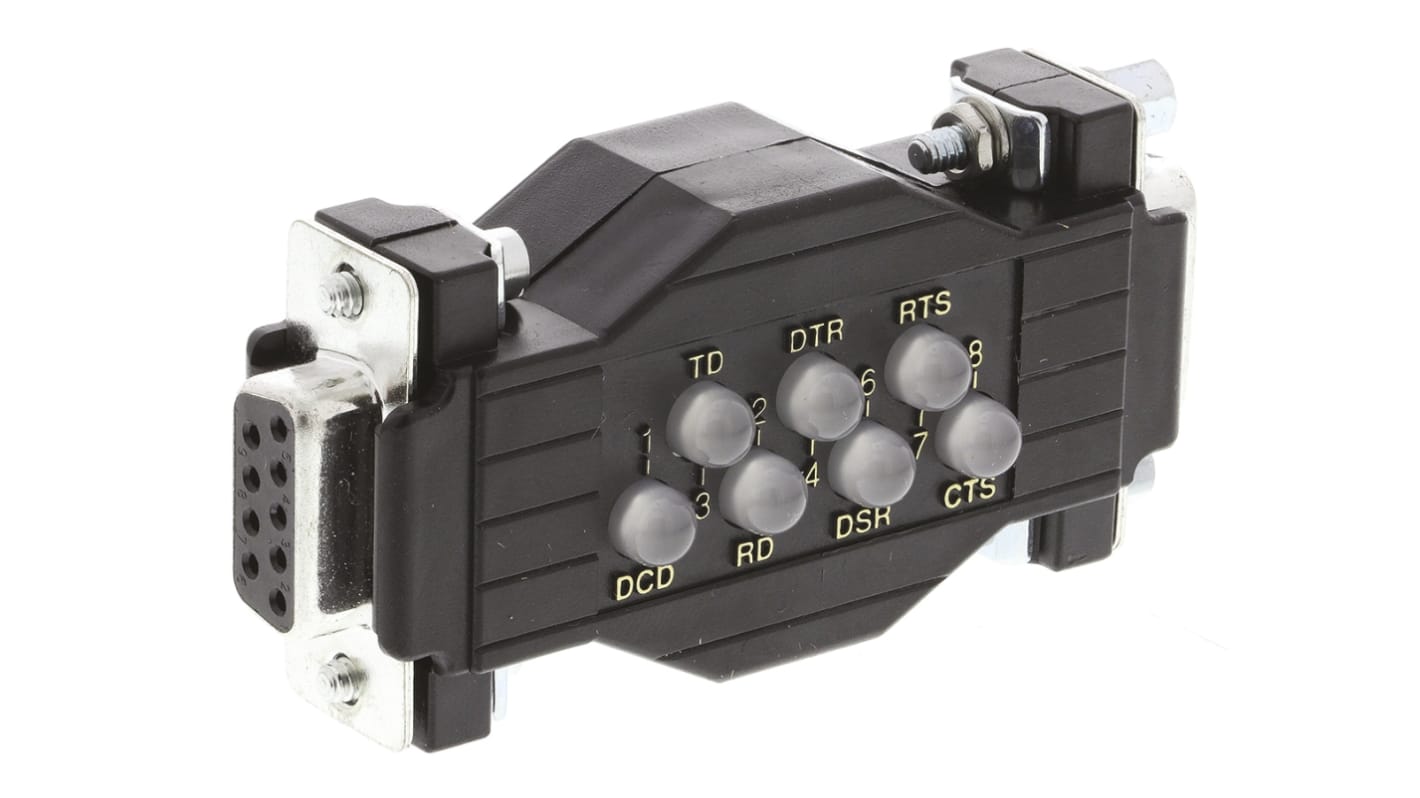

The Patton Model 51 DB-9 PockeTester™ monitors the seven most important async EIA-574 (RS-232 on a DB-9) data and control lines. Uses seven tri-state LEDs to indicate the presence of the following signals: TD, RD, DTR, DSR, RTS, CTS and DCD. A red light = Mark; a green light = Space; no light indicates no signal on the line. No AC power or batteries required.
Seven LEDs monitor RS-232 signals
All 9 Pins are wired straight through
Bright LEDs have great colour intensity and a wide viewing angle
Data bias can be inferred from the intensity of the colours
All 9 Pins are wired straight through
Bright LEDs have great colour intensity and a wide viewing angle
Data bias can be inferred from the intensity of the colours
Line Monitors
Line monitors designed for rapid checking and trouble shooting of computer interfaces especially EIA RS-232C (V24)
Conforms to RS-232 and discriminates against out of tolerance signals
The LEDs on the front panels of the testers are generally on the signal originating side of the unit, allowing the signal to be broken yet remain monitored
Separate RED and GREEN LEDs ensure unambiguous monitoring
Conforms to RS-232 and discriminates against out of tolerance signals
The LEDs on the front panels of the testers are generally on the signal originating side of the unit, allowing the signal to be broken yet remain monitored
Separate RED and GREEN LEDs ensure unambiguous monitoring
