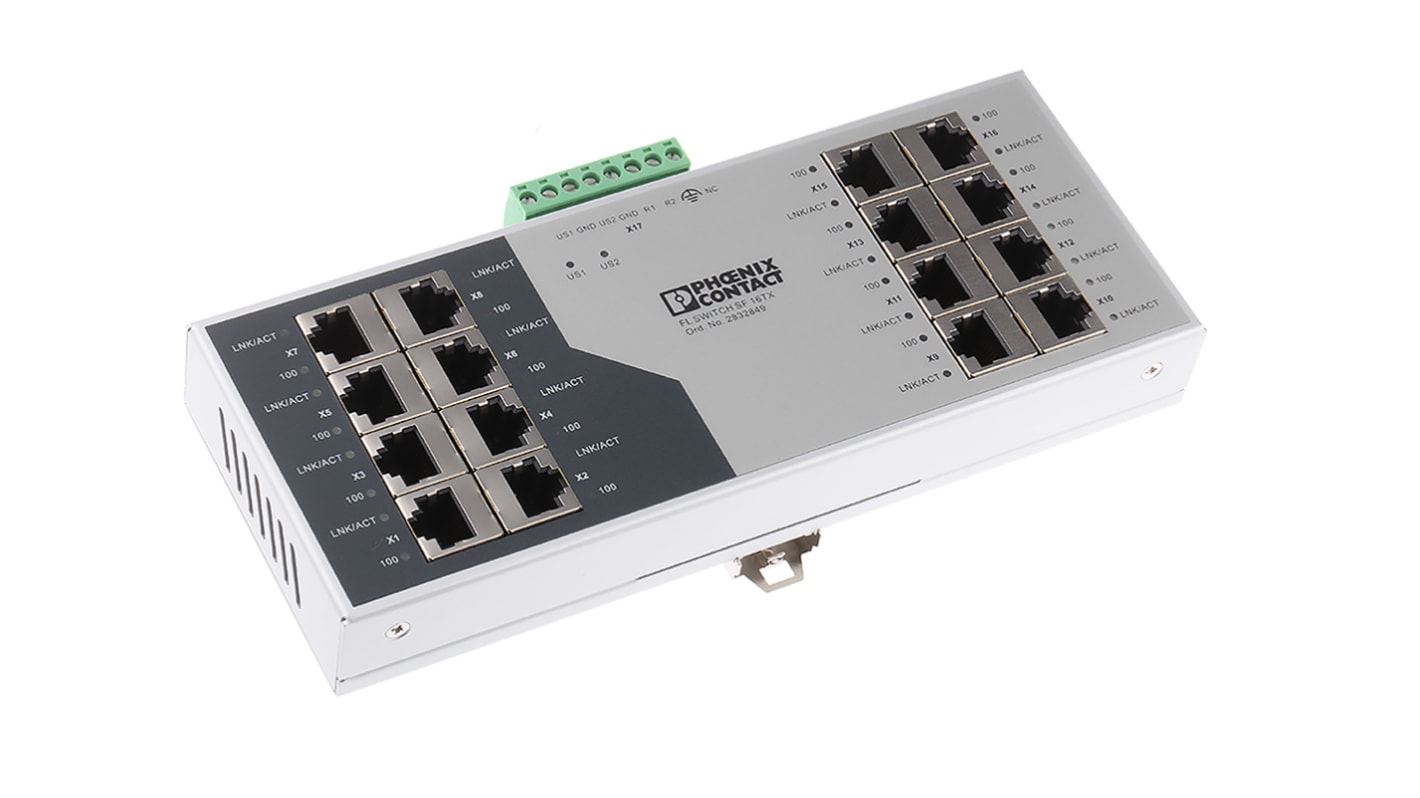

Phoenix Contact Unmanaged Ethernet Switch
- RS Stock No.:
- 528-0627
- Mfr. Part No.:
- 2832849
- Brand:
- Phoenix Contact
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£273.81
(exc. VAT)
£328.57
(inc. VAT)
- RS Stock No.:
- 528-0627
- Mfr. Part No.:
- 2832849
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Switch Type | Unmanaged | |
| RJ45 Ports | 16 | |
| Series | FL SWITCH SF 16TX | |
| Width | 205mm | |
| Depth | 30mm | |
| Dimensions | 94.3 x 205 x 30mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Switch Type Unmanaged | ||
RJ45 Ports 16 | ||
Series FL SWITCH SF 16TX | ||
Width 205mm | ||
Depth 30mm | ||
Dimensions 94.3 x 205 x 30mm | ||
- COO (Country of Origin):
- TW
Phoenix Contact FL SWITCH SF - Ethernet switch
The Phoenix Contact range of FL SWITCH SF factory line switches have the standard functions in numerous versions. They can be used for quick and cost-effective ethernet network expansion.
The IP20 SF switches have a depth of 30mm meaning you can install in flat control cabinets.
The IP20 SF switches have a depth of 30mm meaning you can install in flat control cabinets.
Features and Benefits
• High port density
• Flat housing shape
• Auto-negotiations function
• Auto-crossing function
• Redundant voltage supply
• Floating signal contact
• With and without optical waveguide port
• Reliable communication for your network is guaranteed
• Transmission speed of 10/100 Mbps
• Flat housing shape
• Auto-negotiations function
• Auto-crossing function
• Redundant voltage supply
• Floating signal contact
• With and without optical waveguide port
• Reliable communication for your network is guaranteed
• Transmission speed of 10/100 Mbps
Approvals
CE
Phoenix Contact Industrial Ethernet Switch, 24V DC, 100Mbps - FL SWITCH SF 16TX - 2832849
This Ethernet switch from Phoenix Contact is used to link devices and provide a secure network for quick data transfer. It has 16 ports, so you can connect multiple devices at the same time and it relays data at a speed of 100Mbps providing constant, fast and secure data transmission on the network.
Thanks to an aluminium housing material that provides durability, this unit is corrosion-resistant and is safe from damage caused by rust or the elements. Compact dimensions of 205 (width), 94.3 (height) and 30mm (depth) make the switch suitable for installation in flat and small enclosures. It's also energy-efficient, consuming just 300mA of current. You'll find units like this in commercial and industrial applications such as surveillance equipment.
Thanks to an aluminium housing material that provides durability, this unit is corrosion-resistant and is safe from damage caused by rust or the elements. Compact dimensions of 205 (width), 94.3 (height) and 30mm (depth) make the switch suitable for installation in flat and small enclosures. It's also energy-efficient, consuming just 300mA of current. You'll find units like this in commercial and industrial applications such as surveillance equipment.
• IP20 (ingress protection) rating indicates dust resistance and finger protection
• Wide operating temperature range of 0°C to +55 °C for use in harsh environments
• DIN rail mounting for simple installation
• Light-emitting diode (LED) indicator to let you know data connection or transfer status
• Light weight of 586.9g for easy handling
• Wide operating temperature range of 0°C to +55 °C for use in harsh environments
• DIN rail mounting for simple installation
• Light-emitting diode (LED) indicator to let you know data connection or transfer status
• Light weight of 586.9g for easy handling
