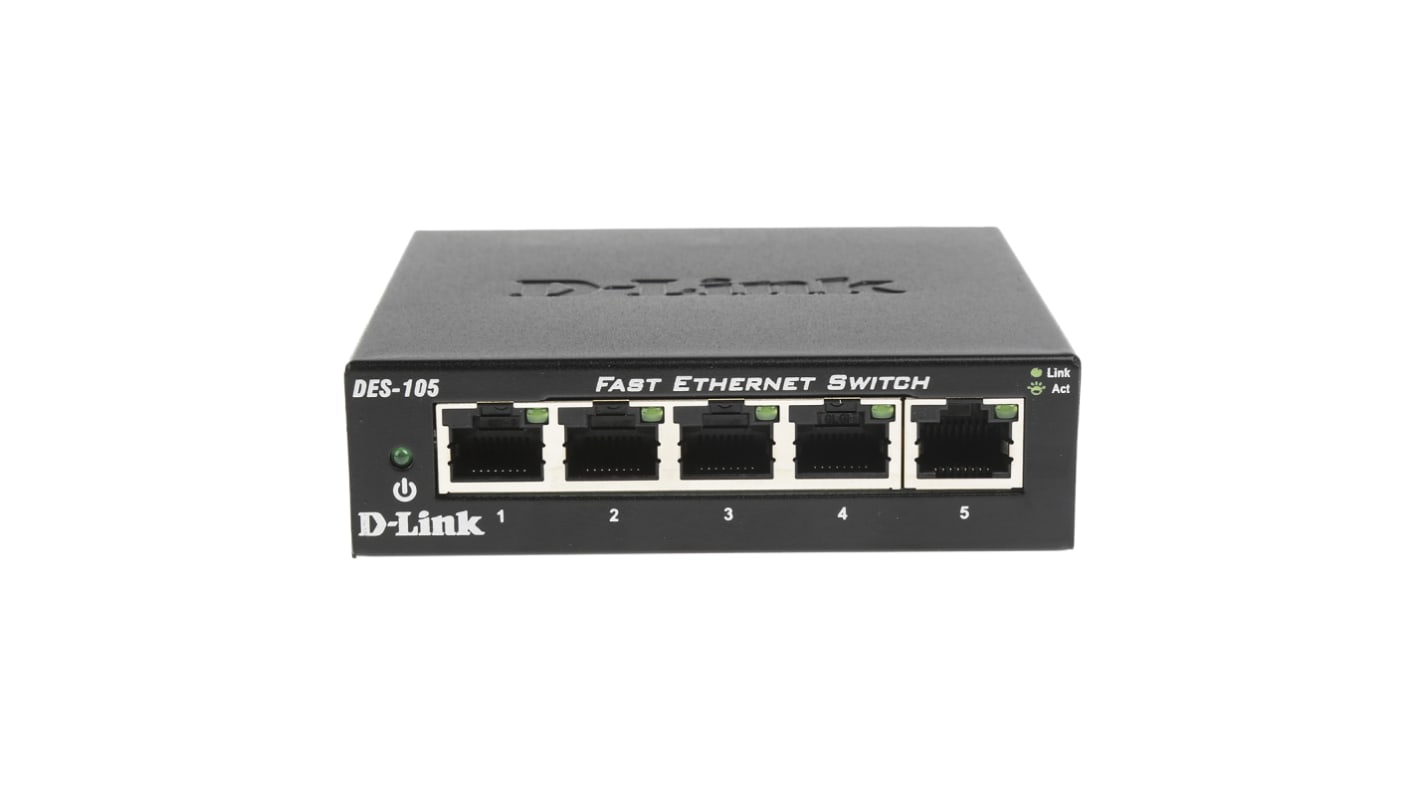

The D-Link 5-port Fast Ethernet unmanaged desktop switch is 10/100 Mbps that allows you to quickly set up a wired network. It connects the DES-105 to multiple computers together to share files and folders or connect it to a router to share an Internet connection. The switch provides a cost-effective way for SOHO and small to medium businesses (SMB) to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations.
The Des-105 also features D-Links Green Ethernet technology which saves power when the switch is active and inactive and provides energy savings and a longer life for the device.
The DES-105 is great for anyone planning to upgrade to Fast Ethernet. It has been designed for areas where traffic on the network and the amount of people using it is increasing.
Features and Benefits
Switching fabric:1.0Gbps Auto-MDI/MDIX crossover Flow Control for reliable transmission Innovative D-Link Green technology Support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports 802.3x flow control feature activates to minimize dropped packets Plug-and-play networking switch that offers D-Links Green Technology to save energy and reduce heat Network Cables:10BASE-T:UTP CAT 3, 4, 5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.) Packet Filtering/Forwarding Rates:Ethernet:14,880pps per port Slot for Kensington security lock
Applications
The DES-105 is an unmanaged 10/100Mbps Fast Ethernet switch that offers solutions for the growing bandwidth needs of small Ethernet workgroups. It is ideal for:
Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time Small companies It connect to your computers, printers, copiers and other office equipment
Certifications
IEEE 802.3x Flow Control IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation FCC Class B ICES-003 Class B CE Class B C-Tick Class B
Supplied with
DES-105 5-Port 10/100Mbps Ethernet Switch External Power Adapter Wall Mount Kit Quick Installation Guide
