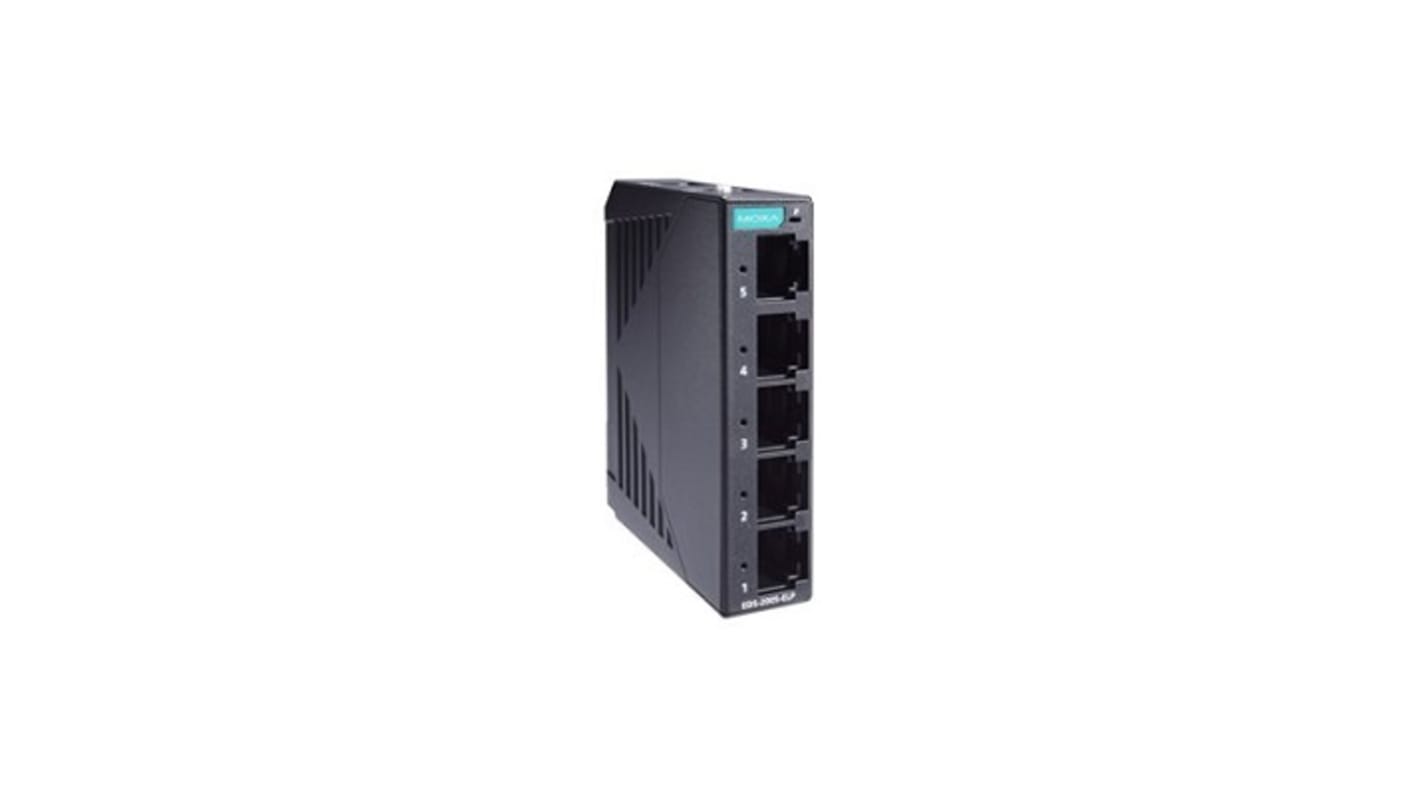

MOXA Unmanaged 5 Port Ethernet Switch Power Over Ethernet
- RS Stock No.:
- 255-1955
- Distrelec Article No.:
- 301-76-952
- Mfr. Part No.:
- EDS-2005-ELP
- Brand:
- MOXA
Subtotal (1 unit)*
£58.75
(exc. VAT)
£70.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 166 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.75 |
*price indicative
- RS Stock No.:
- 255-1955
- Distrelec Article No.:
- 301-76-952
- Mfr. Part No.:
- EDS-2005-ELP
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Ethernet Switch | |
| Number of Ports | 5 | |
| Switch Type | Unmanaged | |
| Power Over Ethernet | Yes | |
| Number of RJ-45 Ports | 5 | |
| Desktop/Rack Mount | Rack | |
| Standards/Approvals | IEEE 802.3x for flow control, IEEE 802.3u for 100BaseT(X), IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service | |
| Width | 19 mm | |
| Height | 81mm | |
| Depth | 65mm | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Ethernet Switch | ||
Number of Ports 5 | ||
Switch Type Unmanaged | ||
Power Over Ethernet Yes | ||
Number of RJ-45 Ports 5 | ||
Desktop/Rack Mount Rack | ||
Standards/Approvals IEEE 802.3x for flow control, IEEE 802.3u for 100BaseT(X), IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service | ||
Width 19 mm | ||
Height 81mm | ||
Depth 65mm | ||
- COO (Country of Origin):
- TW
The Moxa Europe industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, it also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.
10/100BaseT(X) (RJ45 connector)
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40-rated metal housing
-40 to 75°C wide operating temperature range
Processing type store and forward
MAC table size 2 K
Packet buffer size 768 Kbits
DIP switch configuration
