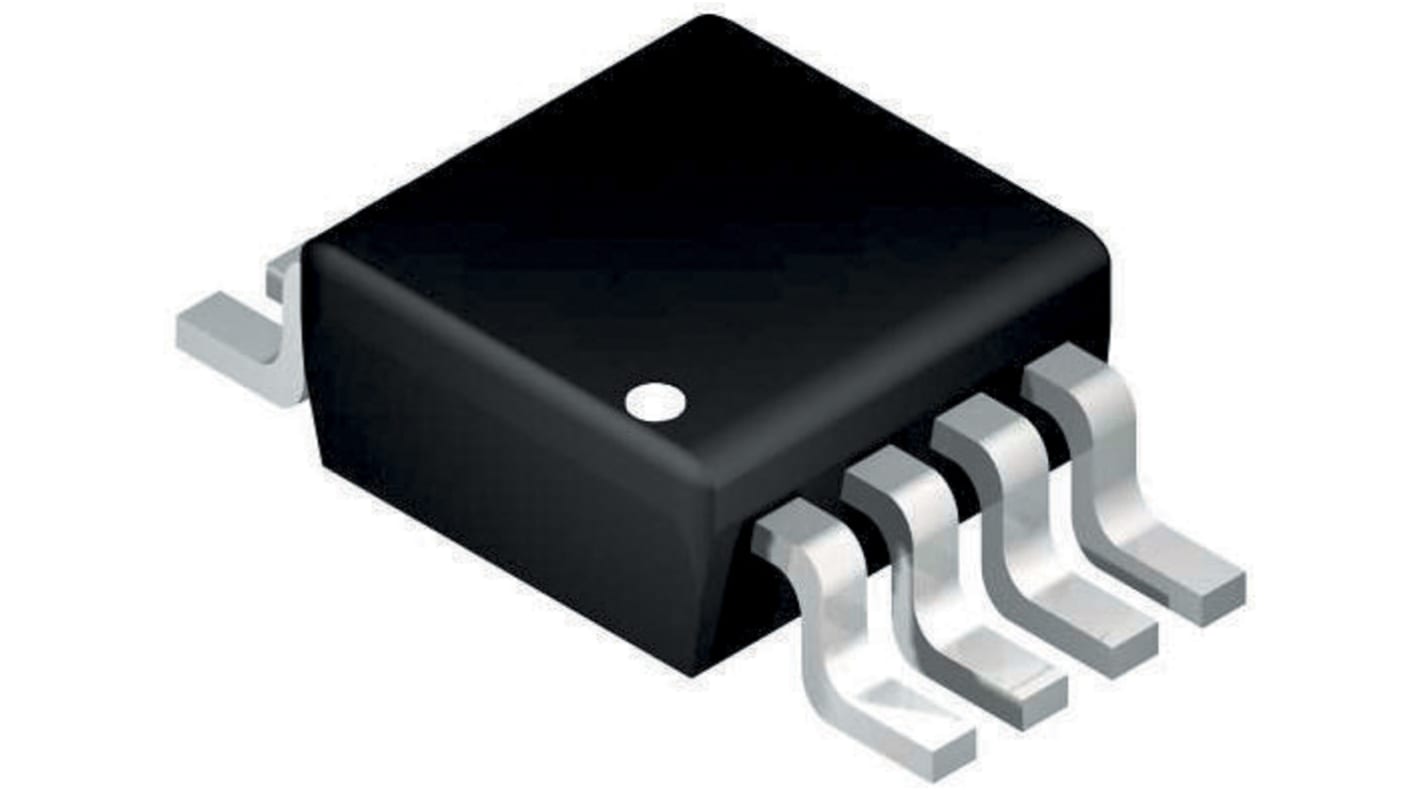

Maxim Integrated MAX4541EUA+ Analogue SPDT Switch Dual SPST, 8-Pin μMAX
- RS Stock No.:
- 192-2766
- Mfr. Part No.:
- MAX4541EUA+
- Brand:
- Maxim Integrated
Discontinued
- RS Stock No.:
- 192-2766
- Mfr. Part No.:
- MAX4541EUA+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Pin Count | 8 | |
| Mounting Type | Surface Mount | |
| Package Type | μMAX | |
| Dimensions | 3.1 x 3.1 x 0.95mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Pin Count 8 | ||
Mounting Type Surface Mount | ||
Package Type μMAX | ||
Dimensions 3.1 x 3.1 x 0.95mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
- COO (Country of Origin):
- US
The MAX4376/MAX4377/MAX4378 single, dual, and quad precision high-side current-sense amplifiers are available in space-saving packages. They feature buffered voltage outputs that eliminate the need for gain-setting resistors and are ideal for today's notebook computers, cell phones, and other systems where current monitoring is critical. These precision devices are offered in three fixed-gain versions of 20, 50, and 100. High-side current monitoring is especially useful in battery-powered systems since it does not interfere with the ground path of the battery charger.
±0.5% Typical Full-Scale Accuracy
+3V to +28V Supply Operation
Adjustable Current-Sense Capability with External Sense Resistor
Buffered Output Voltage with 2mA Drive
1mA (typ) Supply Current
2.0MHz Bandwidth (Gain = +20V/V)
Automotive Temperature Range (-40°C to +125°C)
High Accuracy +2V to +28V Common-Mode Range, Functional Down to 0V, Independent of Supply Voltage
+3V to +28V Supply Operation
Adjustable Current-Sense Capability with External Sense Resistor
Buffered Output Voltage with 2mA Drive
1mA (typ) Supply Current
2.0MHz Bandwidth (Gain = +20V/V)
Automotive Temperature Range (-40°C to +125°C)
High Accuracy +2V to +28V Common-Mode Range, Functional Down to 0V, Independent of Supply Voltage
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
