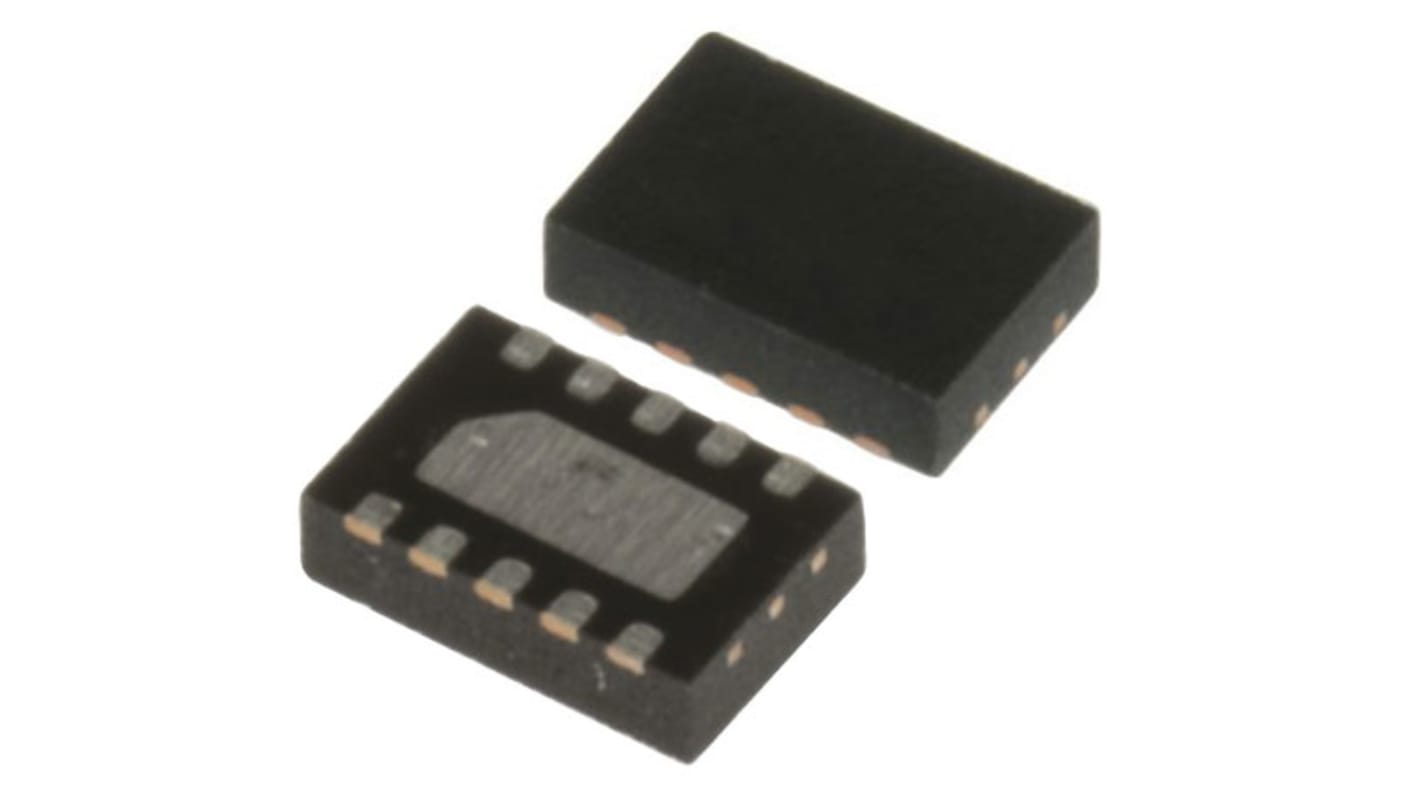

Maxim Integrated MAX4634ETB+T Multiplexer Single 4:1 1.8 to 5.5 V, 10-Pin TDFN

View this category
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
191-3270
Mfr. Part No.:
MAX4634ETB+T
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Pin Count

10

Mounting Type

Surface Mount

Package Type

TDFN

Dimensions

3.1 x 3.1 x 0.75mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Guaranteed RON
2.5Ω (typ) with 5V Supply
4.5Ω (typ) with 3V Supply
0.3Ω (max) Guaranteed RON Match Between Channels
1Ω (max) Guaranteed RON Flatness Over Signal Range
0.1nA (at +25°C) Guaranteed Low Leakage Currents
+1.8V to +5.5V Single-Supply Operation
+1.8V Operation
RON = 30Ω (typ) Overtemperature
tON = 30ns (typ), tOFF = 13ns (typ)
V+ to GND Signal Handling
TTL/CMOS-Logic Compatible
-78dB Crosstalk (at 1MHz)
-80dB Off-Isolation (at 1MHz)
0.018% Total Harmonic Distortion
Applications
Audio/Video Signal Routing
Battery-Operated Equipment
Communications Circuits
Low-Voltage Data-Acquisition Systems
Sample-and-Hold Circuits
