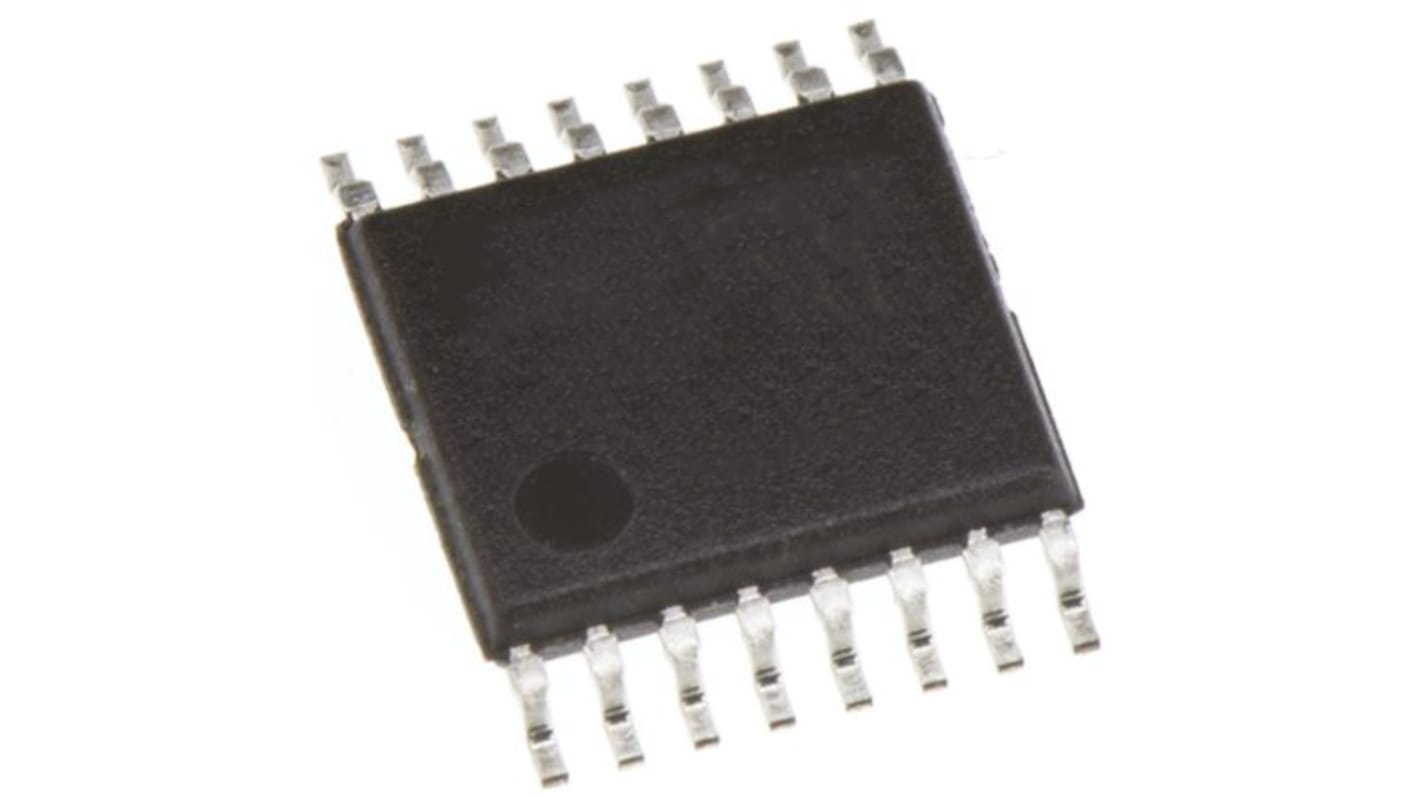

onsemi NLAS4053DTR2G Multiplexer/Demultiplexer Triple 2:1 3 to 5 V, 16-Pin TSSOP

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
186-9130
Mfr. Part No.:
NLAS4053DTR2G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Pin Count

16

Mounting Type

Surface Mount

Package Type

TSSOP

Dimensions

5.1 x 4.5 x 1.05mm

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-55 °C

The NLAS4053 is an improved version of the MC14053 and MC74HC4053 fabricated in sub-micron Silicon Gate CMOS technology for the lower RDS(on) resistance and improved linearity with low current. This device may be operated either with a single supply or dual supply up to +/- 3V to pass a 6 VPP signaml without coupling capacitors. When operating in single supply mode, it is only necessary to tie VEE, pin 7 to ground. For dual supply operation, VEE is tied to a negative voltage, not to exceed maximum ratings. Pin for pin compatible with all industry standard versions of '4053'.

Improved RDS(on) Specifications
Pin for Pin Replacement for MAX4053 and MAX4053A
Single or Dual Supply Operation
Address and Control Pins are Standard TTL Compatible
Improved Linearity Over Standard HC4053 Devices
Popular SOIC, and Space Saving TSSOP , QSOP 16 Pin Packages
