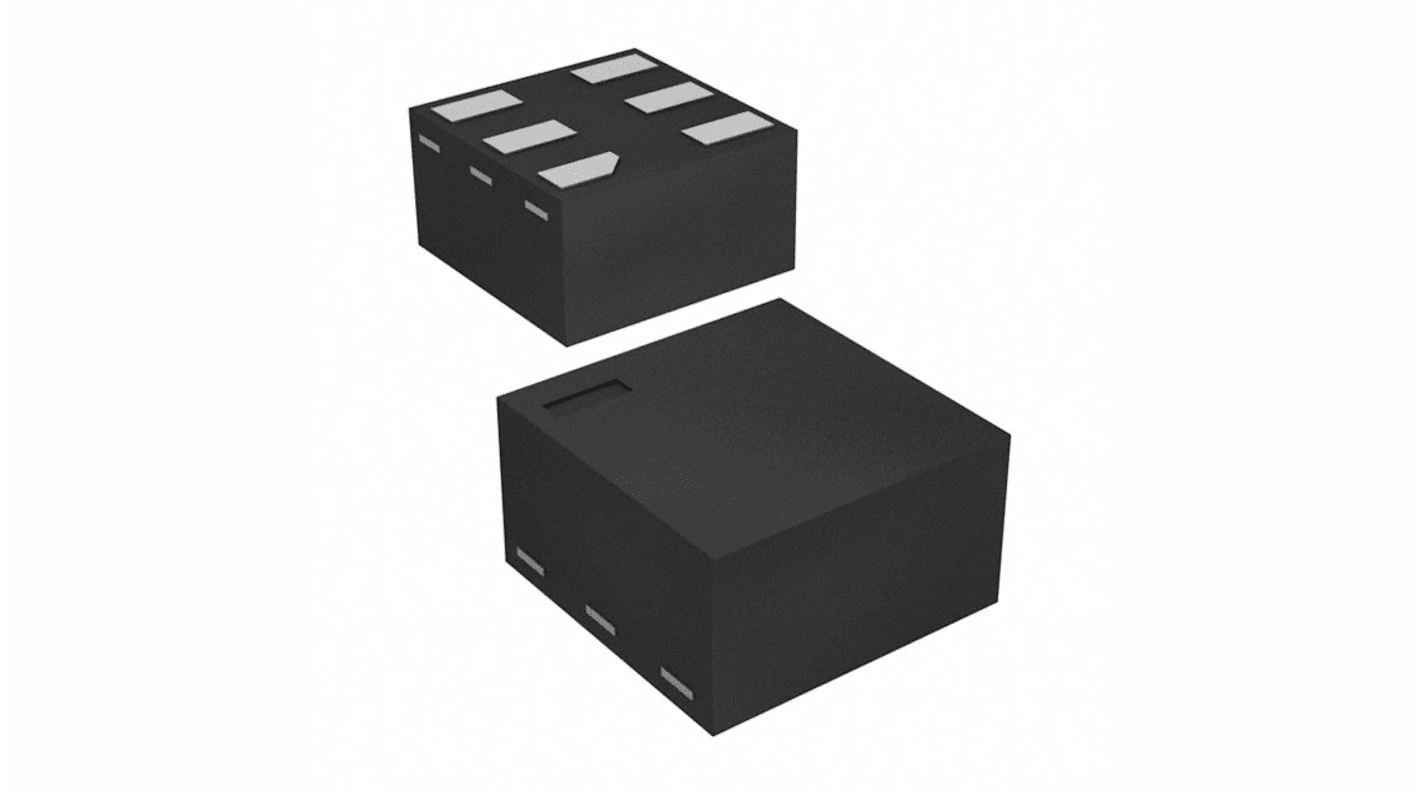

Vishay DG4157EDN-T1-GE4 Analogue SPDT Switch 1.65 to 5.5 V, 6-Pin μDFN-6L

View this category
Discontinued
RS Stock No.:
175-4241
Mfr. Part No.:
DG4157EDN-T1-GE4
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Pin Count

6

Mounting Type

Surface Mount

Package Type

μDFN-6L

Dimensions

1.05 x 1.05 x 0.33mm

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
PH
The DG4157E is a high performance single-pole, double-throw (SPDT) analog switch designed for 1.65 V to 5.5 V operation with a single power rail.Fabricated with high density CMOS technology, the device achieves low on resistance of 0.86 ohm at a 4.5 V power supply, low power consumption, and fast switching speeds. The DG4157E can handle both analog and digital signals and permits signals with amplitudes of up to V+ to be transmitted in either direction. Its control logic inputs can go over V+ up to 5.5 V.

Low switch on-resistance
1.65 V to 5.5 V single supply operation
Isolation in powered-off mode
Control logic inputs can go over V+
Low total harmonic distortion
Break before make switching
Latch-up performance exceeds 300 mA
ESD tested
Ultra compact 1 mm x 1 mm x 0.35 mm package
APPLICATIONS
Smartphones and tablets
Consumer and computing
Portable instrumentation
Medical equipment
