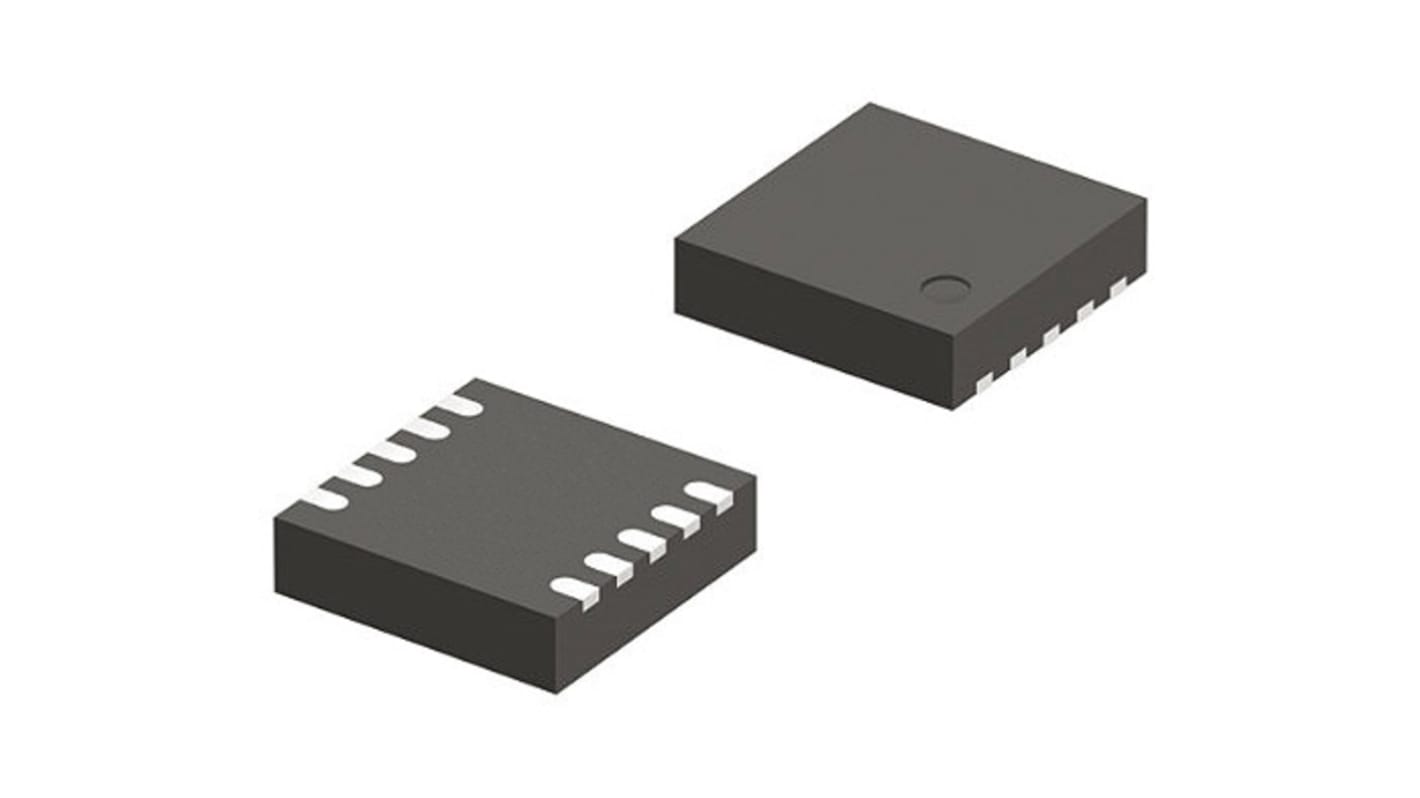

Vishay DG2535EDN-T1-GE4 Analogue SPDT Switch Dual SPDT 1.65 to 5.5 V, 10-Pin DFN

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
164-7574
Mfr. Part No.:
DG2535EDN-T1-GE4
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Pin Count

10

Mounting Type

Surface Mount

Package Type

DFN

Dimensions

3 x 3 x 0.95mm

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

The DG2535E and DG2733E are low voltage, low on-resistance, dual single-pole/double-throw (SPDT) monolithic CMOS analog switches designed for high performance switching of analog signals. Combining low-power, high speed, low on-resistance, and small package size, the DG2535E and DG2733E are ideal for portable and battery powered applications. The DG2535E and DG2733E have an operation range from 1.65 V to 5.5 V single supply. The DG2535E has two separate control pins for independent control of the two SPDT switches. The DG2733E has an EN pin to enable the device when the logic is high.

1.65 V to 5.5 V single power operation
0.3  typ. switch on resistance at V+ = 5 V
Fast switching:
tON = 55 ns at 2.7 V, tOFF = 15 ns at 2.7 V
Latch-up current > 400 mA (JESD78)
Low switch resistance
Low voltage logic compatible
Wide operation voltage range
Fast switching time
