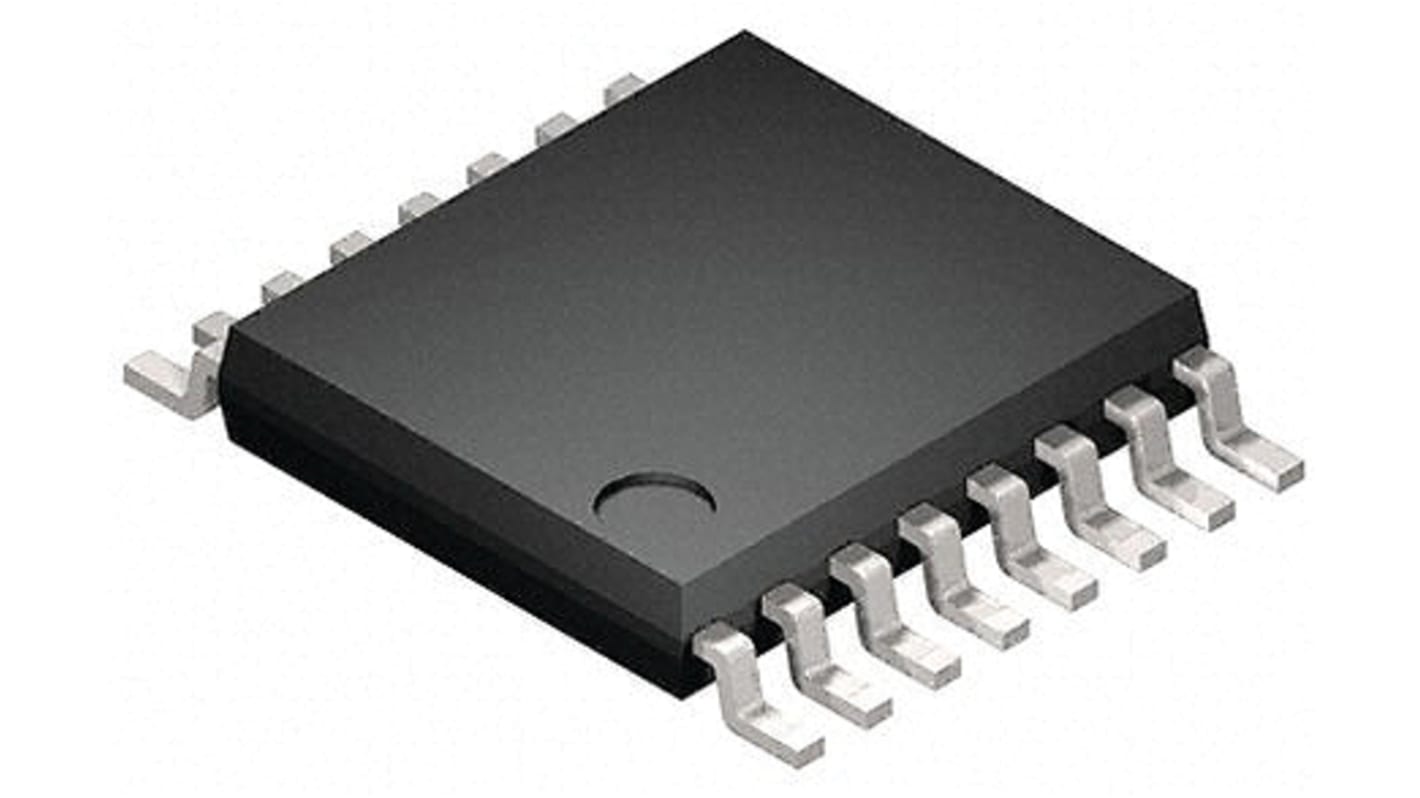

Vishay DG1412EEQ-T1-GE4 Analogue Switch Quad SPST 4.5 to 24 V, 16-Pin TSSOP
- RS Stock No.:
- 164-7562
- Mfr. Part No.:
- DG1412EEQ-T1-GE4
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 164-7562
- Mfr. Part No.:
- DG1412EEQ-T1-GE4
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Pin Count | 16 | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Dimensions | 5.1 x 4.5 x 1.05mm | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Vishay | ||
Pin Count 16 | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
The DG1411E, DG1412E, DG1413E are ± 15 V precision monolithic quad single-pole single-throw (SPST) CMOS analog switches. Built on a new CMOS process, the Vishay Siliconix DG1411E, DG1412E, and DG1413E offer low on-resistance of 1.5 . The low and flat resistance over the full signal range ensures excellent linearity and low signal distortion. The new CMOS platform provides low power dissipation, minimized parasitic capacitance, and low charge injection. The devices operate from either a single 4.5 V to 24 V power supply, or from dual ± 4.5 V to ± 15 V power supplies. The analog switches do not require a VL logic supply, while all digital inputs have 0.8 V and 2 V logic thresholds to ensure low voltage TTL / CMOS compatibility.
Supports single and dual supply operation
Integrated VL supply
3 V logic compatible
Low parasitic capacitance
Rail to rail signal handling
Low insertion loss
Low distortion
Break-before-make switching
Low charge injection over the full signal range
Integrated VL supply
3 V logic compatible
Low parasitic capacitance
Rail to rail signal handling
Low insertion loss
Low distortion
Break-before-make switching
Low charge injection over the full signal range
