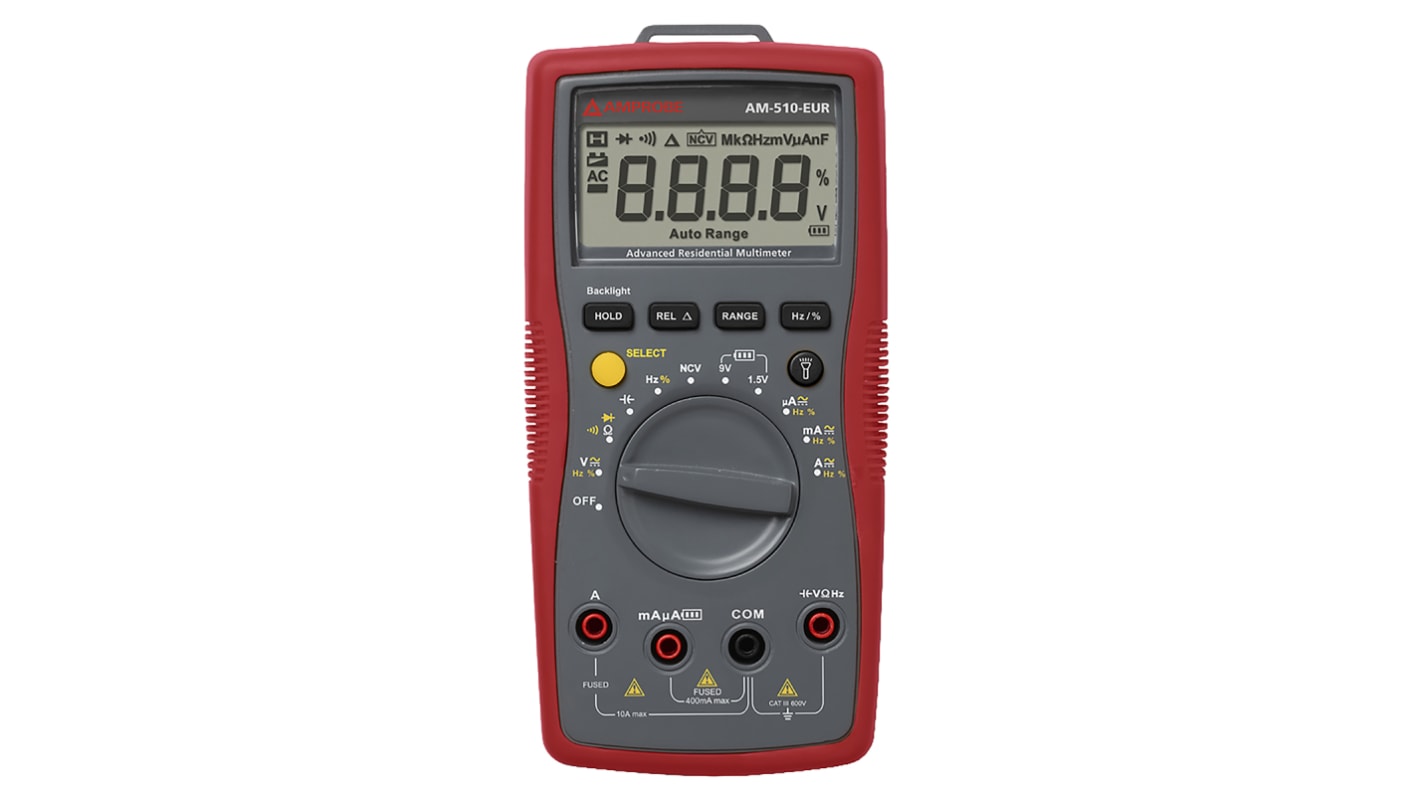

Amprobe AM-510-EUR Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - UKAS Calibrated

RS Stock No.:: 794-4972
Mfr. Part No.:: AM-510-EUR
Brand:: Amprobe

Amprobe AM-510-EUR Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - UKAS Calibrated

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

RS Stock No.:: 794-4972
Mfr. Part No.:: AM-510-EUR
Brand:: Amprobe

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Amprobe
	Multimeter Type	Handheld
	Model Number p	AM-510-EUR
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature
	Calibrated	UKAS
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum Resistance Measurement	40MΩ
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Capacitance Measurement	100µF
	Maximum Frequency	400Hz
	Safety Category Level	CAT III
	Best AC Voltage Accuracy	±1% + 3 Digits
	Weight	354g
	Height	45mm
	Best Capacitance Measurement Accuracy	±3% + 5 Digits
	Best DC Voltage Accuracy	±0.8% + 1 Digits
	Dimensions	182 x 90 x 45mm
	Best AC Current Accuracy	±1.2% + 2 Digits
	Width	90mm
	Length	182mm
	Best DC Current Accuracy	±1% + 2 Digits
	Safety Category Voltage	600V
	Battery Type	9 V
	Best Resistance Measurement Accuracy	±1.2% + 2 Digits

	Select all
	Brand Amprobe
	Multimeter Type Handheld
	Model Number p AM-510-EUR
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature
	Calibrated UKAS
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum Resistance Measurement 40MΩ
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Capacitance Measurement 100µF
	Maximum Frequency 400Hz
	Safety Category Level CAT III
	Best AC Voltage Accuracy ±1% + 3 Digits
	Weight 354g
	Height 45mm
	Best Capacitance Measurement Accuracy ±3% + 5 Digits
	Best DC Voltage Accuracy ±0.8% + 1 Digits
	Dimensions 182 x 90 x 45mm
	Best AC Current Accuracy ±1.2% + 2 Digits
	Width 90mm
	Length 182mm
	Best DC Current Accuracy ±1% + 2 Digits
	Safety Category Voltage 600V
	Battery Type 9 V
	Best Resistance Measurement Accuracy ±1.2% + 2 Digits

AM-500-EUR Series Digital Multimeters

RoHS Status: Not Applicable

COO (Country of Origin):: CN

AM-510-EUR Digital Multimeter

Compact yet tough, the Amprobe AM-510 autoranging digital multimeter delivers rugged, accurate performance for light commercial and advanced residential applications like rewiring an electrical panel, installing heated floors and light fixtures, troubleshooting and repairing home appliances, electrical sockets, and automotive electrical problems. Its CAT III safety rating and ease of use make it ideal for high voltage multimeter applications. Innovative digital multimeter features expedite go/no-go checks, and the built-in flashlight makes it easy to see wires and fuses in the dark. Plus a rubber tilt stand and a probe holder give you a “third-hand when you need it.

Features & Benefits

• Measures AC/DC voltage up to 600V, AC/DC current, resistance, frequency, capacitance, duty cycle and temperature

• CAT III 600V safety rated

• Non-contact voltage detection enhances safety

• Audible continuity quickly identifies shorts and opens

• Diode test to verify diode polarity

• Data hold freezes the reading on the display for further analysis

• MIN/MAX recording records min/max measurements over time to show voltage fluctuations

• Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range

• Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a “third hand test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter

• Auto and manual-ranging delivers maximum flexibility

• Backlit LCD display makes it easy to view results

Standards

CAT III 600V

Supplied with

• 1 x 9V(6F22) battery installed
• Test leads
• Users manual

Amprobe Multimeter, 40MΩ Maximum Resistance, 4000 LCD Counts Resolution - AM-500 Series - AM-530

Want to pinpoint power values in a flash? This digital multimeter from Amprobe makes troubleshooting your applications a breeze. It's a versatile device that measures voltage, current and resistance, as well as frequency, capacitance and temperature. For flexibility, you can set it manually or let the device's auto function select the best resolution. Thanks to True-RMS technology, you can count on accurate readings even when electrical noise is present. A CAT III 600V rating lets you safely approach high-voltage installations. To illuminate wires in poorly lit areas, a built-in torch gives a helping hand.

Features & Benefits

• Non-contact voltage detection for better electrical safety
• Data hold button freezes readings for easy reference
• MIN/MAX recordings help you plot fluctuations over time
• Auto power-off function stretches battery life

Applications

• Telecommunications industry
• Electrical installations
• Security systems
• Industrial machinery
• Vehicle maintenance

Is it easy to handle this digital multimeter along with a probe?

Yes, the device comes with a test probe holder to free up your hands while working. Plus, it has built-in lead storage and a hook-and-loop strap for safekeeping.
