Aim-TTi 1604 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

View all Multimeters
Unavailable
RS will no longer stock this product.

Calibration Options:

presentation
Aim-TTi 1604 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated
Calibration Type:
RSCAL
RS Stock No.
343-5005

Each

£308.50

(exc. VAT)

£370.20

(inc. VAT)

presentation
Aim-TTi 1604 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - UKAS Calibrated
Calibration Type:
UKAS
RS Stock No.
343-5162

Each

£347.00

(exc. VAT)

£416.40

(inc. VAT)

RS Stock No.:
284-8056
Mfr. Part No.:
1604
Brand:
Aim-TTi
Find similar products by selecting one or more attributes.
Select all

Brand

Aim-TTi

Multimeter Type

Bench

Model Number p

1604

Display Type

Digital

Functions Measured

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum Resistance Measurement

40MΩ

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum AC Voltage Measurement

750V ac

Maximum Frequency

20kHz

DC Current Measurement Resolution

0.1A dc

AC Current Measurement Resolution

1A ac

AC Voltage Measurement Resolution

10V ac

Resistance Measurement Resolution

10mΩ

DC Voltage Measurement Resolution

10V dc

Safety Category Level

CAT II

Weight

2kg

Best AC Current Accuracy

±3% + 4 Digits

Width

260mm

Dimensions

235 x 260 x 88mm

Best DC Voltage Accuracy

±0.09% + 4 Digits

Best AC Voltage Accuracy

±5% + 4 Digits

Best DC Current Accuracy

±3% + 10 Digits

Safety Category Voltage

600V

Best Resistance Measurement Accuracy

±1% + 10 Digits

Maximum Operating Temperature

+40°C

Length

235mm

Height

88mm

Minimum Operating Temperature

+5°C

RoHS Status: Not Applicable

COO (Country of Origin):
GB

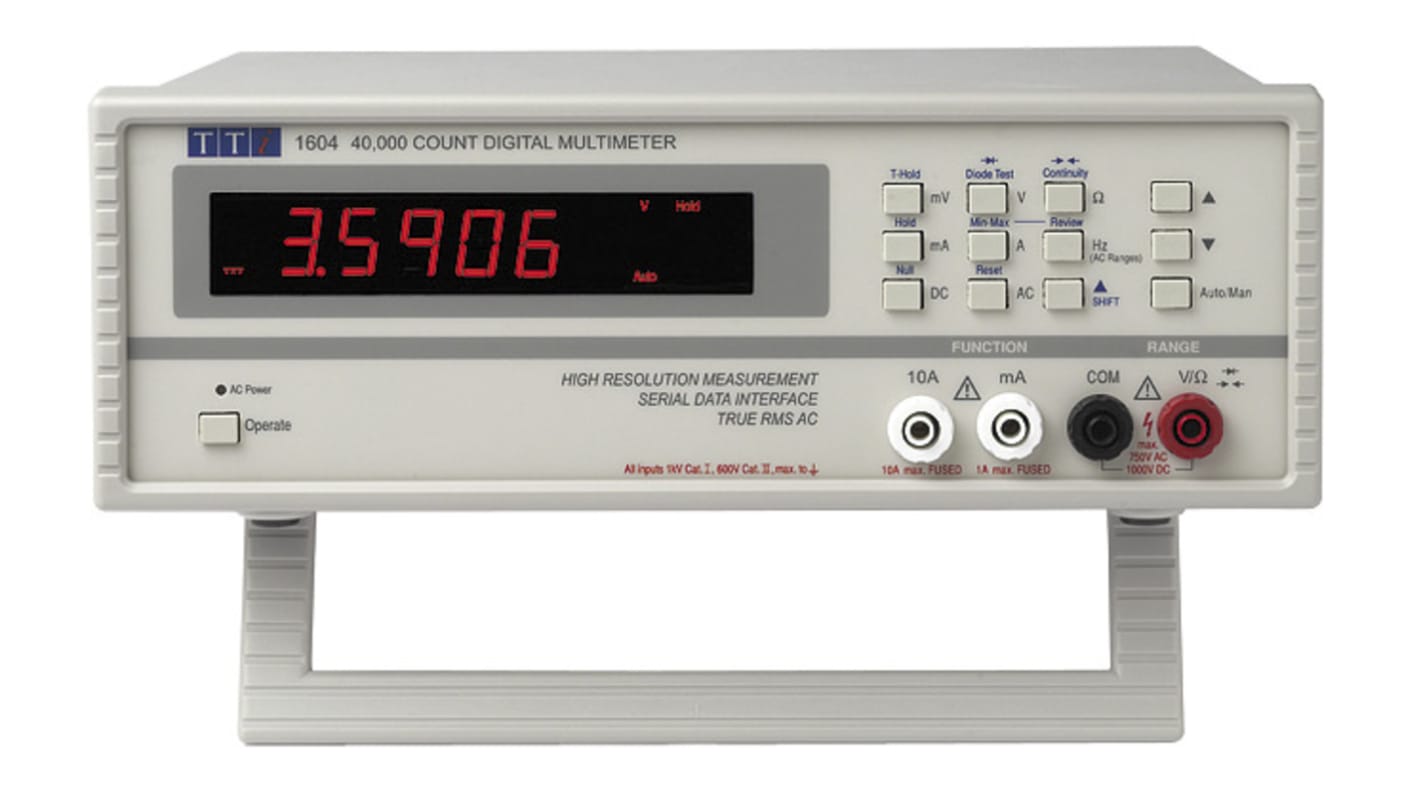

Aim-TTI 1604 Bench Multimeter, 40 000 Count


Aim-TTi 1604 is an auto/manual ranging bench top digital multimeter with a large and bright LED display. It features continuity and diode test, automatic or manual ranging, dB measurements, True RMS on AC measurements. Model 1908P can be remotely controlled via its RS232, USB, GPIB or LAN interface. Model 1604 has an isolated RS-232 interface as standard for use with the included logging software.

High-Quality Bench Multimeter


The 1604 high-quality robust mains powered bench top multimeter has a bright LED display. Unlike a handheld digital multimeter, it stays where you place it even with heavy test leads connected. With the added multi-tilt stand it ensures that the large display is always readable.

Smart Features


The 1604 has several smart features such as Relative measurement and Minimum-Maximum storage.

A T-Hold function enables readings to be held on the display automatically each time a new point is probed.

Features and Benefits


40000 count auto/manual ranging

Large bright LED display (14mm/0.56in.)

Resolution 10mΩ, 0.1μA

Current measurement up to 10 amps

True RMS a.c. functions, wide bandwidth

Frequency measurement function

Relative, T-Hold and Min-Max functions

Isolated serial interface as standard

Safety Rating: EN61010-1 CAT II 600 V

Supplied with

mains lead, test leads and comprehensive instruction manual.
