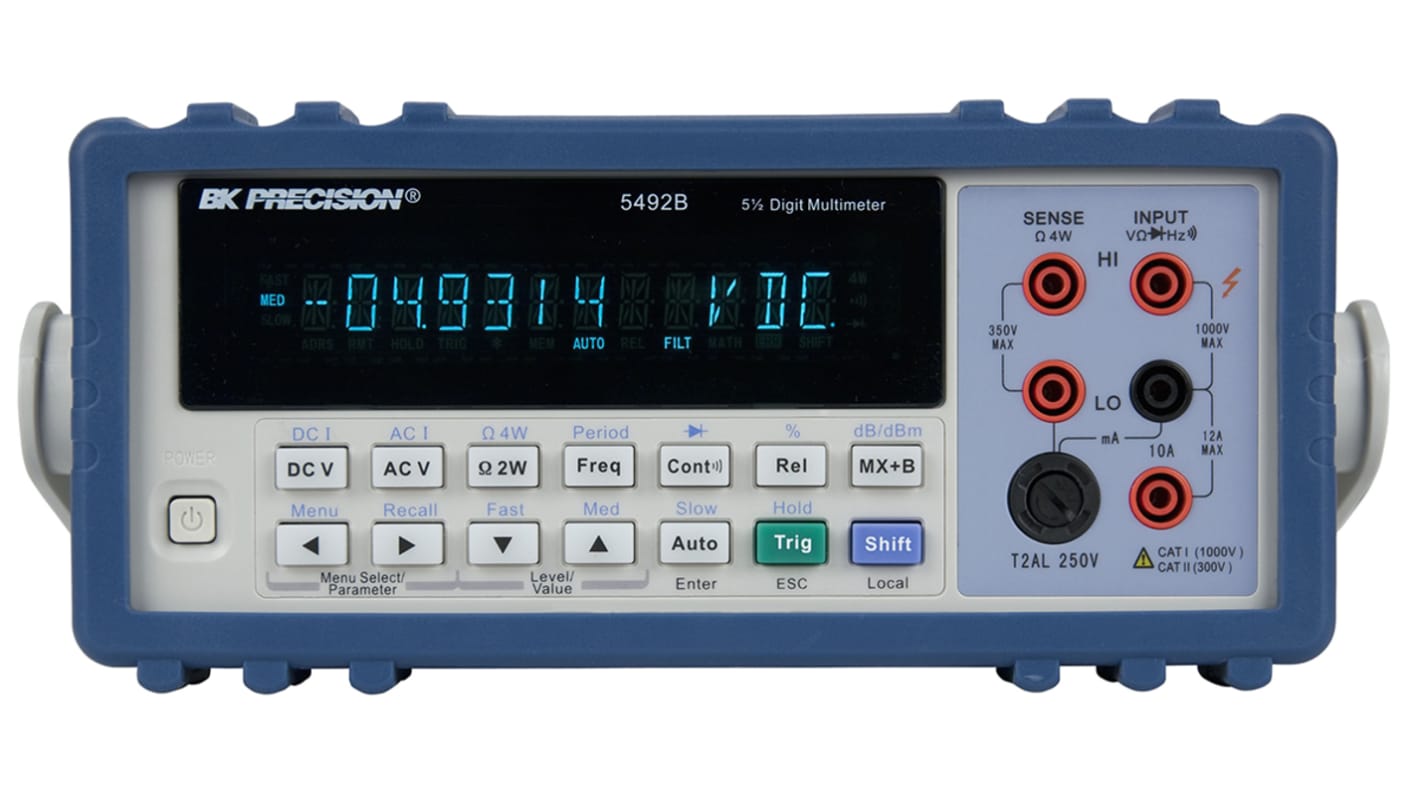

BK Precision 5492B Bench Digital Multimeter, True RMS, 12A ac Max, 12A dc Max, 750V ac Max - RS Calibrated

View all Multimeters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
175-9995
Mfr. Part No.:
BK5492BGPIB
Brand:
BK Precision
Find similar products by selecting one or more attributes.
Select all

Brand

BK Precision

Multimeter Type

Bench

Display Type

Digital

Model Number p

5492B

Calibrated

RSCAL

Functions Measured

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Voltage Measurement

750V ac

Absolute Maximum DC Current Measurement

12A dc

Absolute Maximum Resistance Measurement

120MΩ

Absolute Maximum AC Current Measurement

12A ac

Maximum Frequency

1MHz

AC Current Measurement Resolution

0.1µA ac

DC Current Measurement Resolution

0.1µA dc

DC Voltage Measurement Resolution

1µV dc

AC Voltage Measurement Resolution

1µV ac

Resistance Measurement Resolution

1mΩ

Safety Category Level

CAT I, CAT II

Weight

2.5kg

Length

225mm

Best DC Current Accuracy

±0.25 + 0.004 %

Best Resistance Measurement Accuracy

±0.5 + 0.008 %

Dimensions

225 x 355 x 100mm

Maximum Operating Temperature

+40°C

Best AC Voltage Accuracy

±1.5 + 0.1 %

Best DC Voltage Accuracy

±0.02 + 0.008 %

Best AC Current Accuracy

±2 + 0.08 %

Minimum Operating Temperature

0°C

Height

100mm

Width

355mm

Safety Category Voltage

300 V, 1000V

COO (Country of Origin):
CN
The B&K Precision model 5492B is a versatile 5-digit, 120,000-count bench multimeter suitable for applications in education, service repair, and manufacturing. The instrument enhances your productivity with built-in math functions and USB connectivity. Rel, Max/Min, dBm, dB, %, and Hold functions provide educators with a convenient tool to teach basic math concepts. Additionally, the 5492B offers powerful features not commonly found in other 5- digit DMMs such as advanced triggering, buffer storage operation, and a GPIB interface option.

The 5492B measures volts and amps with great accuracy and stability, with basic VDC accuracy of 0.01%. The meter is also capable of measuring frequency, period, resistance, continuity, and performing diode tests. Readings can be taken at a maximum rate of 57 readings/sec and stored to an internal 512-byte buffer for post acquisition statistical analysis.

The 5492B was designed for cost-conscious users requiring an accurate meter with a broad range of features offered at a value price.

Features include:


5-digit, 120,000-count display resolution
0.01% basic VDC accuracy
Advanced triggering options such as external, bus and event trigger
Two and four-wire resistance measurement up to 120 MO
AC voltage and AC current measurement over wide frequency range (ACV 100 kHz/ACI 10 kHz)
AC (RMS) and DC current measurements up to 12 A
Limit mode for Pass/Fail testing
Save/recall up to 10 instrument settings
Built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Compare
CATI (1000 V)/CATII (300 V) protection
USB (Virtual Com) and RS232 interface
SCPI compatible
For GPIB interface order 5492BGPIB
