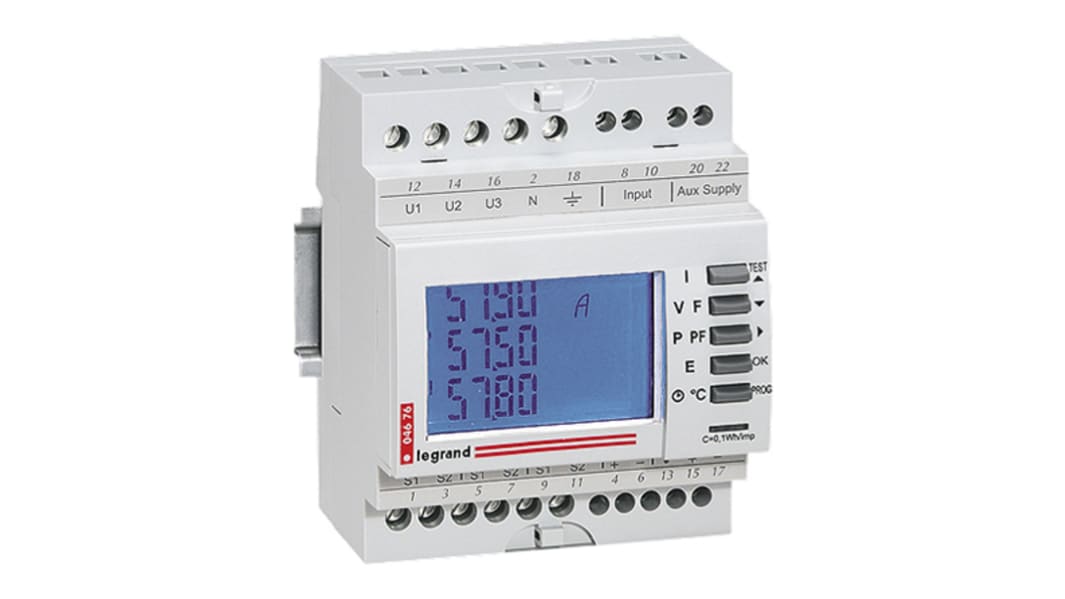

Legrand LCD Digital Panel Multi-Function Meter

View this category
Discontinued
RS Stock No.:
897-6851
Mfr. Part No.:
004676
Brand:
Legrand
Find similar products by selecting one or more attributes.
Select all

Brand

Legrand

Properties Measured

Active Power, Apparent power, Current, Internal Temperature, Reactive Power, Voltage

Display Type

LCD

Minimum Temperature

-10°C

Maximum Temperature

+55°C

Measurement Range

0 → 9999 (Power Measurement) kW/kvar/kVA, 28 → 520 (Voltage) VA, 45 → 65 (Frequency) Hz, 5 mA → 9999 A (Current)

Approvals

IEC 61557-12, IEC 62053-22 Class 0.5 S, IEC 62053-23 Class 2

Meter Type

Electronic

Minimum Measurement

0 (Power Measurement) kW/kvar/kVA, 28 (Voltage) VA, 45 (Frequency) Hz, 5 (Current) mA

RoHS Status: Not Applicable

COO (Country of Origin):
GB

Legrand EMDX Modular Multifunction Meter


The EMDX Modular multi function meters from Legrand are high precision devices with complete communication functions. The functions allow you to analyse energy consumption and reduce electrical bills. These meters also allow you to check the quality of supplied energy and document it.

LCD Display
Keypad with 4 dual functions keys
DIN Rail mounting
Width: 4 modules
Measures Currents, Voltages, Active, Reactive, Apparent power and Internal Temperature
Dual tariff metering
THD voltages and currents up to order 51
Outputs for controlling wiring devices, alarm feedback and pulse feedback


EMDX Pulse Unit (897-6829)
- Data transmission via pulses

EMDX RS485 Unit (897-6851)
- Data transmission via RS485 communication interface and pulses
