Sifam Tinsley NA5 LED Digital Panel Multi-Function Meter, 137.5mm x 44mm
- RS Stock No.:
- 886-1768
- Mfr. Part No.:
- NA5-T BU1141000U
- Brand:
- Sifam Tinsley
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£397.03
(exc. VAT)
£476.44
(inc. VAT)
- RS Stock No.:
- 886-1768
- Mfr. Part No.:
- NA5-T BU1141000U
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sifam Tinsley | |
| Properties Measured | Current, Resistance, Temperature, Voltage | |
| Display Type | LED | |
| Cutout Height | 137.5mm | |
| Cutout Width | 44mm | |
| Depth | 100mm | |
| Number of Digits | 4 | |
| Digit Height | 7 mm | |
| Minimum Temperature | -10°C | |
| Maximum Temperature | +55°C | |
| Measurement Range | ±3 mV → 600 V (Voltage), ±40 mA → ±5 A (Current), 0 → 10 kΩ (Resistance), -200 → +1760 °C (Temperature) | |
| Series | NA5 | |
| Approvals | ASTA, CE, CSA, UL | |
| Minimum Measurement | ±3 mV (Voltage), ±40 mA (Current), 0 kΩ (Resistance), -200 °C (Temperature) | |
| Meter Type | Electronic | |
Select all | ||
|---|---|---|
Brand Sifam Tinsley | ||
Properties Measured Current, Resistance, Temperature, Voltage | ||
Display Type LED | ||
Cutout Height 137.5mm | ||
Cutout Width 44mm | ||
Depth 100mm | ||
Number of Digits 4 | ||
Digit Height 7 mm | ||
Minimum Temperature -10°C | ||
Maximum Temperature +55°C | ||
Measurement Range ±3 mV → 600 V (Voltage), ±40 mA → ±5 A (Current), 0 → 10 kΩ (Resistance), -200 → +1760 °C (Temperature) | ||
Series NA5 | ||
Approvals ASTA, CE, CSA, UL | ||
Minimum Measurement ±3 mV (Voltage), ±40 mA (Current), 0 kΩ (Resistance), -200 °C (Temperature) | ||
Meter Type Electronic | ||
Non Compliant
- COO (Country of Origin):
- IN

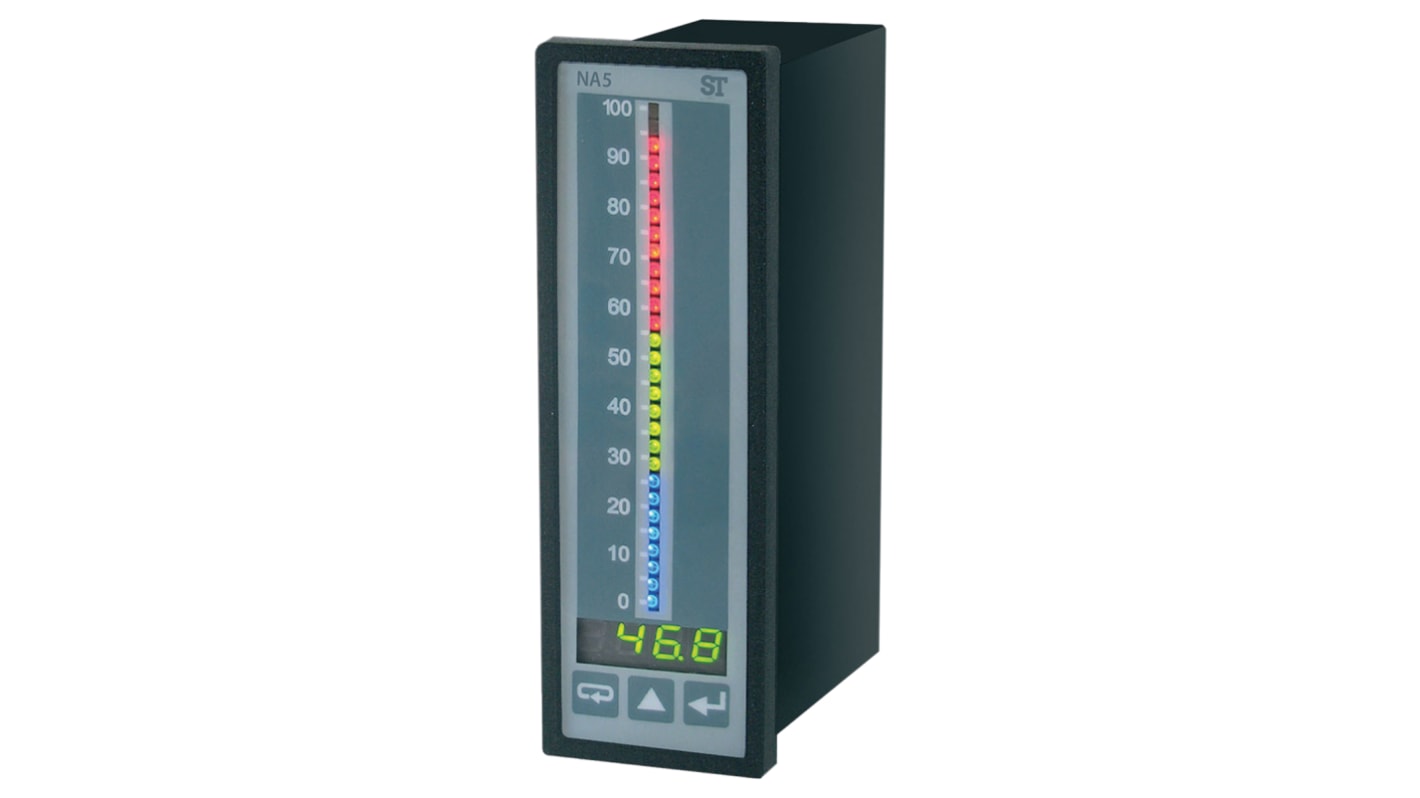

NA5 Digital Bar Graph Meter
NA5 programmable meters with multicolour bar graph indicators are designed to measure and record DC Current or DC Voltage, temperature, resistance and other non-electrical magnitudes like: level, flow, pressure and humidity.
3 or 7 colour bar graph with programmable colour switching over
Recording of 750 measuring segments, released temporary
Universal input
Programmable indication characteristic and bar graph magnifier
Up to 8 programmable alarm outputs
Communication in SCADA systems (RS485/Modbus interface)
Conversion of measured quantity into an analogue standard signal for automation systems
Recording of 750 measuring segments, released temporary
Universal input
Programmable indication characteristic and bar graph magnifier
Up to 8 programmable alarm outputs
Communication in SCADA systems (RS485/Modbus interface)
Conversion of measured quantity into an analogue standard signal for automation systems
Sifam Tinsley Multifunction Meter
