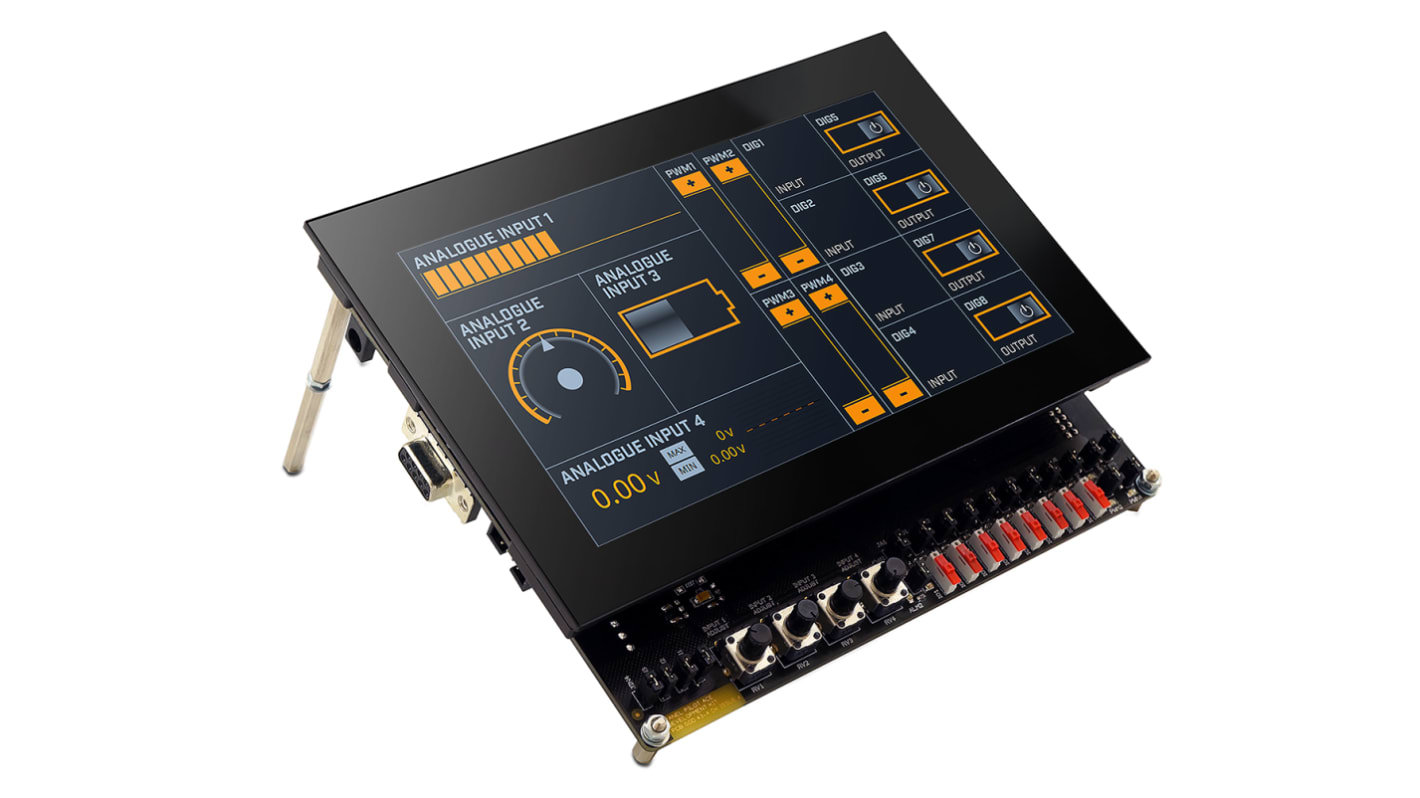

The development kit is a state-of-the-art board that allows users to connect and test the input and output functionality of the SGD 70-A, PanelPilotACE display. The board includes LEDs and switches for digital I/O's, four potentiometers to generate analogue inputs, variable brightness LEDs for PWN outputs and a prototyping area for testing circuitry. Connections are also available for the display's RS232, RS485, SPI and I²C functionality.

4 x analogue inputs each with ±5Vd.c. analogue dial and screw terminals for external inputs
8x digital I/O's each with input switch, status LED and pin headers to connect external circuitry
4 x PWN outputs each with LED indication and pin heads to connect external circuitry
