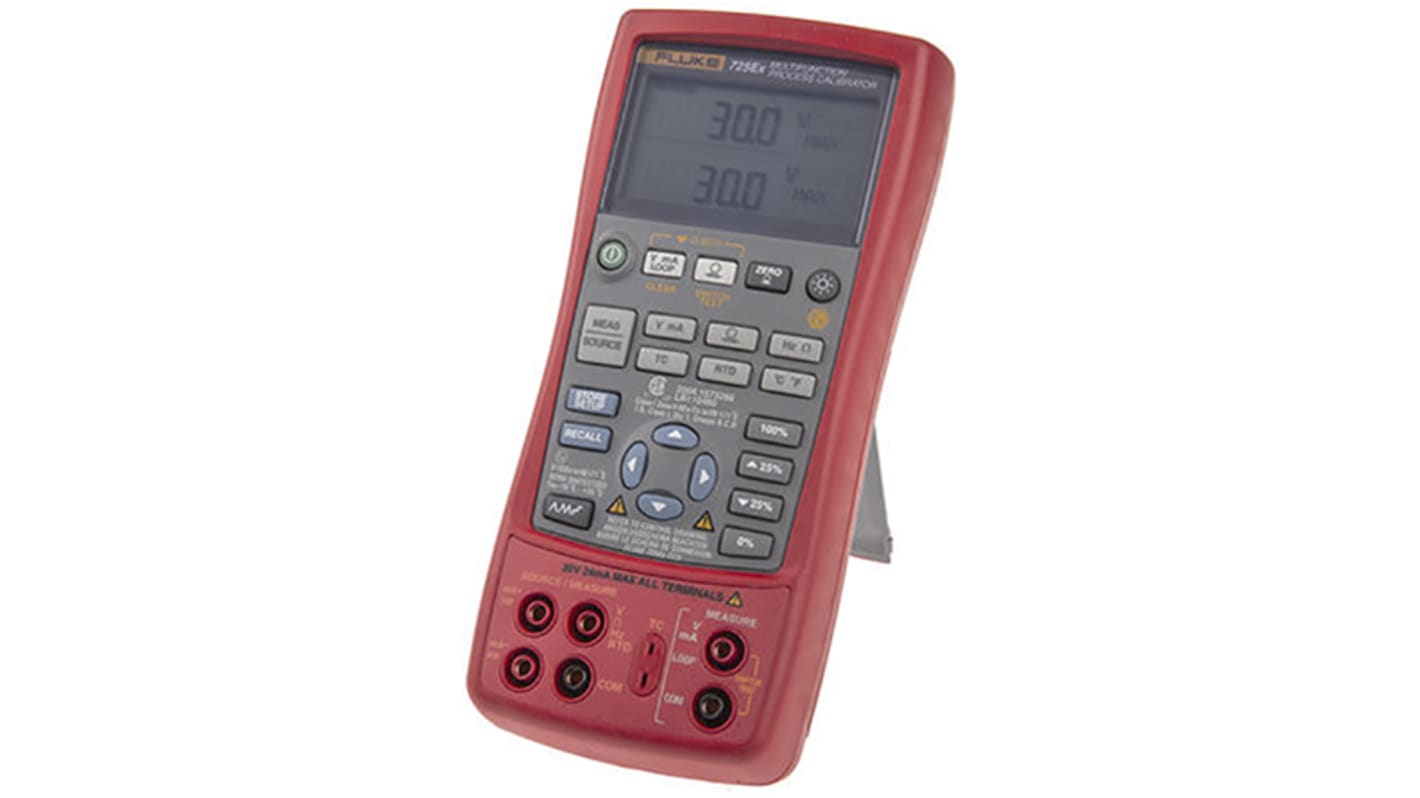

Fluke 725EX Multi Function Calibrator, 24mA, 30V, 200 x 96 x 47mm - UKAS Calibration

Fluke 725EX Multi-Function Process Calibrator ATEX with high performance.

Small, streamlined shape makes it easy to carry
Easy to read measure/source screen lets you view input and output simultaneously
Measure mA, volts, RTDs, thermocouples, frequency and ohms to test sensors and transmitters
Source/simulate volts, mA, RTDs, thermocouples, frequency and ohms to calibrate transmitters
Measure/source pressure via external pressure modules
Support flow meter testing with frequency and CPM functions
Perform a fast linearity test with auto-step and auto-ramp features
Power transmitters during test using loop supply with simultaneous mA measurement
Stores frequently used test set ups for later use
protective over moulded red holster for maximum duarability
Pressure measurement using external P700Ex modules (see Fluke 718Ex Pressure Calibrator typically stock No. 479-2444)

KEMA 04ATEX1303X

II 1G EEx ia IIB 171°C

Pair of TL75 test leads, AC72 test clips & stackable test-leads. 4xAA alkaline batteries, user manual on CD-ROM.

The Fluke multifunction calibrator is used to test and calibrate almost any process parameter. It can be used to measure and source current ranging from 0mA to 24mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules to test and calibrate almost any process parameter. Its split display lets you view input and output values simultaneously. For valve and I/P tests, you can source mA while measuring the pressure. This calibrator has auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity tests. It is supplied with a pair of TL75 test leads, AC72 test clips and stackable test leads, 4xAA alkaline batteries and user manual on CD-ROM.

•
Small, streamlined shape makes it easy to carry
• Rugged, reliable design stands up to field use
• Measure and source thermocouple type J,K,T,E,R,S,B,L,U,N,XK,BP
• Measure and source RTDs NI-120,PT100,PT500,PT1000
• Easy to read measure/source screen lets you view input and output simultaneously
• Measure/source pressure using any of 29 Fluke 700Pxx pressure modules
• Easy to operate and user-friendly menu control
• Source mA with simultaneous pressure measurement to conduct valve and I/P tests
• Support flow meter testing with frequency and CPM functions
• Perform fast linearity tests with auto-step and auto-ramp features
• Power transmitters during test using loop supply with simultaneous mA measurement
• Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 10ms
• Store frequently used test setups for later use
• Operating temperature ranges between –10°C and 55°C
• Backlight lets you work in poor light
• Large battery capacity of four AA cells
• Battery door for easy changes

•
Process control automation
• Manufacturing
• Instrumentation

•
CE certified
• CSA certified
• ATEX certified
