Subtotal (1 unit)*
£94.59
(exc. VAT)
£113.51
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £94.59 |
*price indicative
- RS Stock No.:
- 909-4085
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | DOL Starter | |
| Power Rating | 0.75kW | |
| Sub Type | DOL | |
| Number of Phases | 1 | |
| Current Rating | 5.5, 8A | |
| IP Rating | IP55 | |
| Mount Type | Surface Mount | |
| Number of Poles | 3 | |
| Overall Length | 104mm | |
| Maximum Voltage | 240V ac | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | BS EN 60947/60529, IEC 947 | |
| Overall Width | 174mm | |
| Series | 3000 | |
| Overall Depth | 134mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type DOL Starter | ||
Power Rating 0.75kW | ||
Sub Type DOL | ||
Number of Phases 1 | ||
Current Rating 5.5, 8A | ||
IP Rating IP55 | ||
Mount Type Surface Mount | ||
Number of Poles 3 | ||
Overall Length 104mm | ||
Maximum Voltage 240V ac | ||
Hazardous Area Certification NO | ||
Standards/Approvals BS EN 60947/60529, IEC 947 | ||
Overall Width 174mm | ||
Series 3000 | ||
Overall Depth 134mm | ||
RoHS Status: Exempt

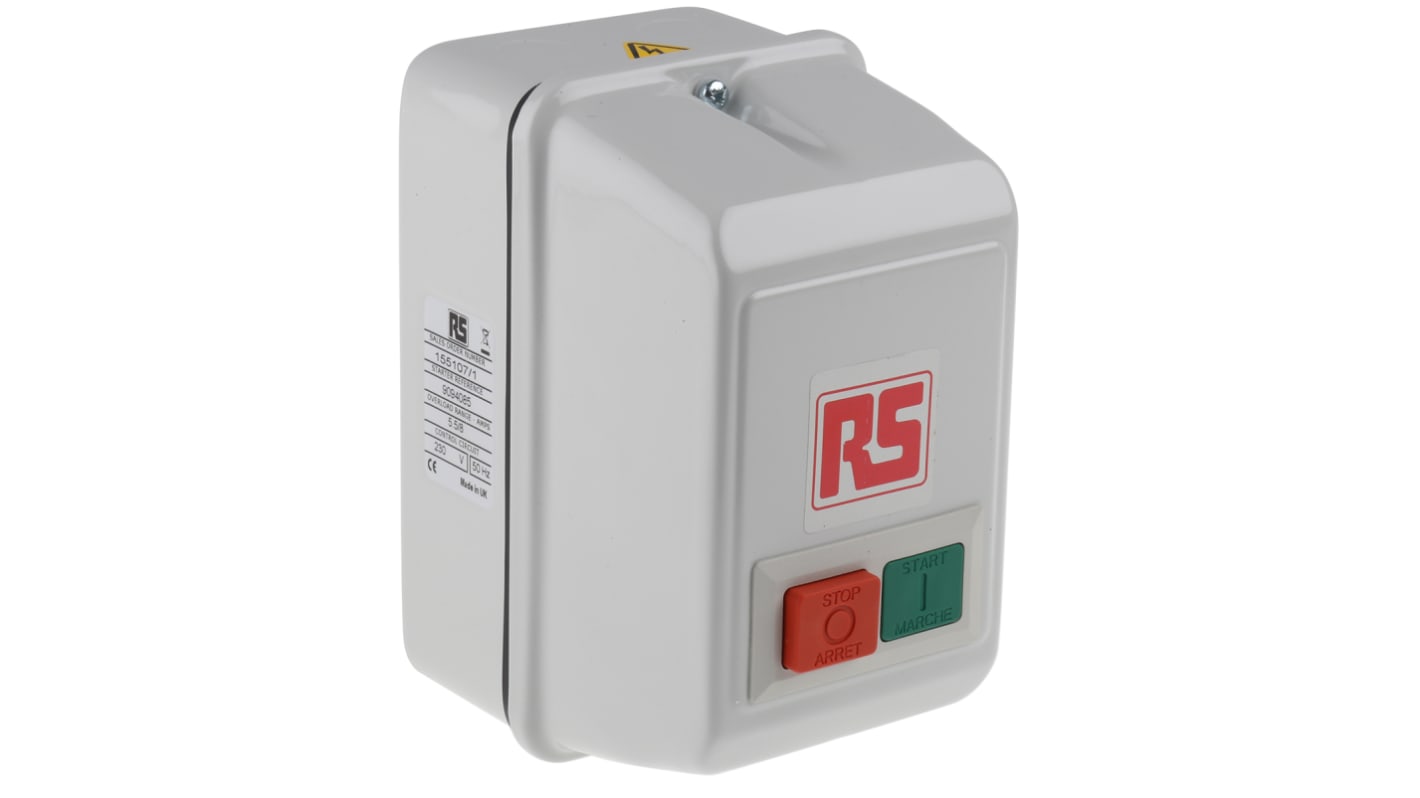

RS PRO Single Phase DOL Starter, 240 V, 0.75 kW, IP55
When you need a reliable way to initialise a motor in your equipment, choose this RS PRO DOL (direct-on-line) starter. Using this starter allows you to connect the motor's coil directly to the power supply, providing 100% of its starting torque immediately.
This starter is fitted with a thermal overload, so there's no risk of it being damaged by overheating after a short circuit. The durable steel enclosure also has an IP55 rating, which means it can withstand low-pressure water jets and is protected against dust. This makes it a good choice for use in harsh environments.
The starter is ideal for smaller motors in fans, conveyor belts and water pumps. As it's manually operated, it's easy to activate your systems when necessary. This part has been stringently tested by engineers for safety and quality.
Features and Benefits
