ABB Soft Starter, , 15 kW, 208 → 600 V ac, 3 Phase, IP20
- RS Stock No.:
- 851-7641
- Distrelec Article No.:
- 304-02-329
- Mfr. Part No.:
- 1SFA896109R1100
- Brand:
- ABB

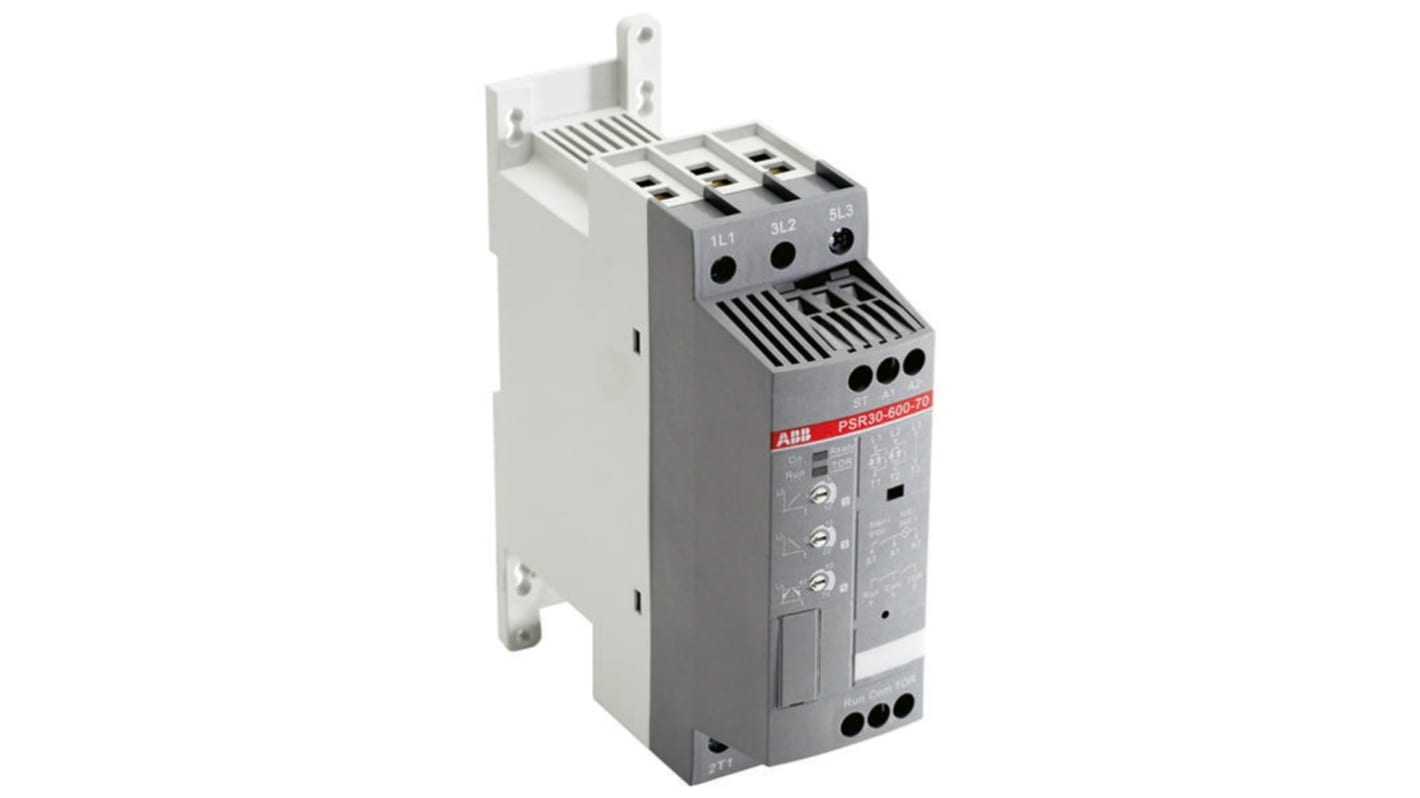

Image representative of range
Subtotal (1 unit)*
£328.02
(exc. VAT)
£393.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £328.02 |
*price indicative
- RS Stock No.:
- 851-7641
- Distrelec Article No.:
- 304-02-329
- Mfr. Part No.:
- 1SFA896109R1100
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Power Rating | 15 kW | |
| Motor Starter Type | Soft Start | |
| Voltage Rating | 208 → 600 V ac | |
| Phase | 3 | |
| Current Rating | 30 A | |
| IP Rating | IP20 | |
| Overall Length | 45mm | |
| Overall Width | 128mm | |
| Overall Depth | 160mm | |
| Series | PSR | |
Select all | ||
|---|---|---|
Brand ABB | ||
Power Rating 15 kW | ||
Motor Starter Type Soft Start | ||
Voltage Rating 208 → 600 V ac | ||
Phase 3 | ||
Current Rating 30 A | ||
IP Rating IP20 | ||
Overall Length 45mm | ||
Overall Width 128mm | ||
Overall Depth 160mm | ||
Series PSR | ||
- COO (Country of Origin):
- CN
ABB 3-Phase Soft Starter, 208 to 600V AC Voltage Rating, 15kW Power Rating - PSR Series - 1SFA896109R1100
Prolong the service life of your electric motor using this soft starter from ABB. It limits the current supplied to the motor's electric circuits, so acceleration is gradual. The unit's broad operational voltage rating of 208 to 600V AC and power rating of 15kW makes it suitable for use in heavy-duty systems. You can easily set the start/stop ramp and time using the three potentiometers on the front of the housing. Thanks to its wide operating temperature range between -20°C and +60°C, this device is a reliable option for use in harsh environments.
Features & Benefits
• Current rating of 30A to withstand rugged systems
• Built-in by-pass to conserve energy
• Light weight of 0.6kg for reduced strain on equipment
• LED indicators for easy status monitoring
• DIN rail mounting for quick, tool-free installation
• Built-in by-pass to conserve energy
• Light weight of 0.6kg for reduced strain on equipment
• LED indicators for easy status monitoring
• DIN rail mounting for quick, tool-free installation
Applications
• Pumps
• Industrial fans
• Manufacturing industry
• Conveyor belts
• Industrial fans
• Manufacturing industry
• Conveyor belts
Why do I need a soft starter?
When an electric motor is activated, it receives a sudden inrush current that could weaken or damage its circuitry. A soft starter modifies the voltage supply to protect the motor from mechanical wear.
