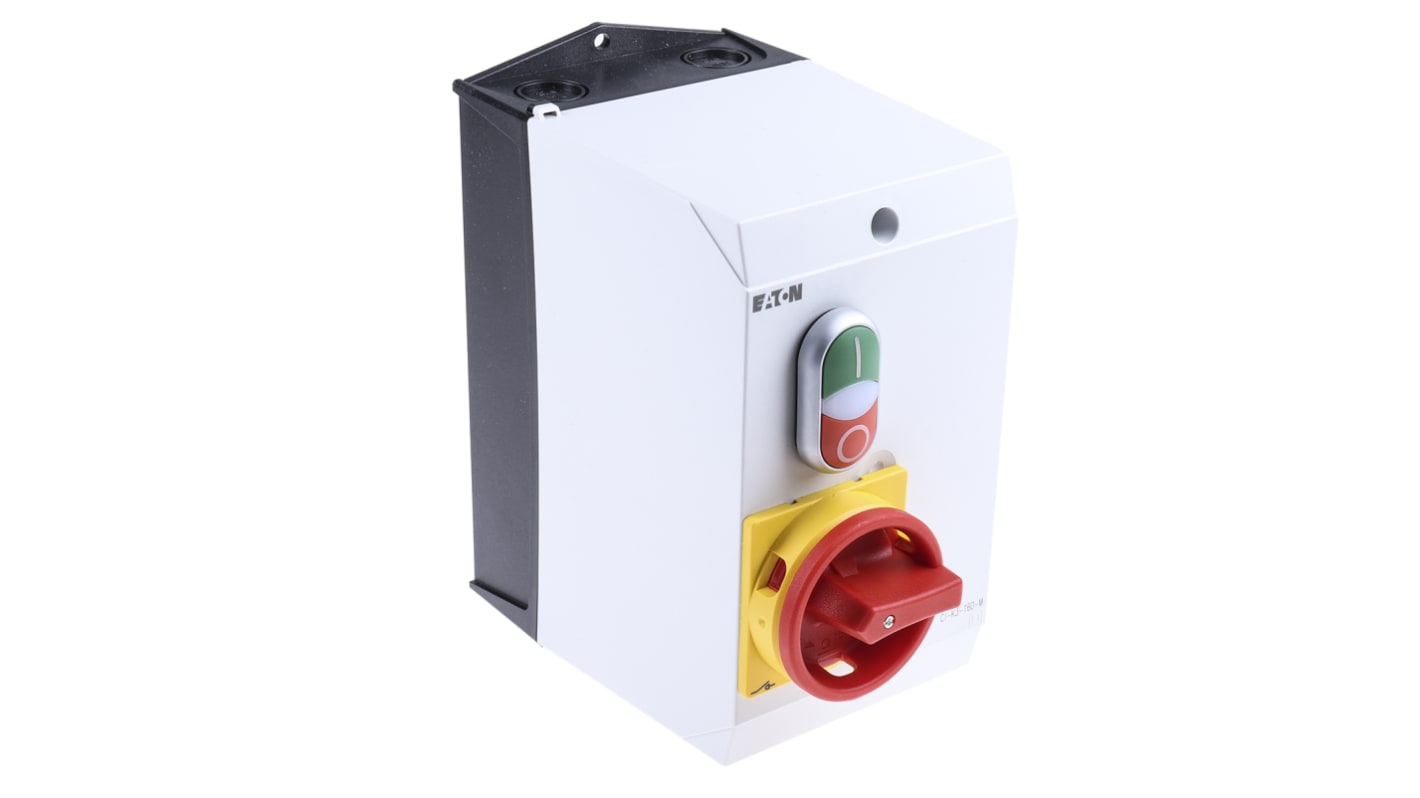

    Eaton 4 kW DOL Starter, 400 V ac, IP65

    RS Stock No.:
    528-7369
    Mfr. Part No.:
    118523 XDP4/I(400V50HZ,440V60HZ)
    Brand:
    Eaton
    Eaton
    View all Motor Starters
    Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
    Add to Basket
    Units

    Not available for guaranteed pre 9am/10am delivery

    Added

    Price Each

    £252.30

    (exc. VAT)

    £302.76

    (inc. VAT)

    UnitsPer unit
    1 +£252.30
    RS Stock No.:
    528-7369
    Mfr. Part No.:
    118523 XDP4/I(400V50HZ,440V60HZ)
    Brand:
    Eaton

    RoHS Status: Not Applicable

    COO (Country of Origin):
    GB

    Legislation and Compliance

    RoHS Status: Not Applicable

    COO (Country of Origin):
    GB

    Product Details

    EATON XDP DOL Starter Series with Isolator


    Providing reliability and long operating life, these 'direct-on-line' starters are totally insulated with IP65 protection. Capable of high numbers of operations, these starters are constructed from standard components meaning they are very easy to maintain. Fitted with AC-3 rated triple pole contactor, AC-3 rated triple pole switch disconnector and on and off pushbuttons, these devices also allow for 3 padlocks for additional safety.

    All starters in this range are wired to accept EATON overload relays for overload protection, also available from RS components to be purchased separately.
    4 & 5.5kW models = H200 x W120 x D160mm, 7.5 & 11kW models = H240 x W160 x D160mm

    Features and Benefits:


    • Fitted with metric knockouts
    • Easy maintenance
    • Complies with IEE regulations
    • 16th edition on isolation and switching
    • Glass fibre reinforced polycarbonate casing

    Applications:


    Used for starting 3 phase induction motors, direct on line starters are regularly used in industrial applications such as conveyor belts, compressors and small water pumps.

    What is the difference between dol and star delta starters?


    Both devices are used to start induction motors however, where partial voltage is applied to each winding of a star delta starter, a DOL has 100% voltage applied. This also applies to the current, a star delta uses one-third of the starting current that a DOL does. Direct on line starters are the most common and simplest starting method, within a motor start-up they also provides the lowest temperature rise. Star delta starters allow for starting the motor at a lower voltage, making them suitable for high inertias.

    Note

    FLC figures quoted are maximum, other overload ratings can be used dependant on FLC rating.

    Standards

    IEC/EN 60529, DIN 43660, EN 50262

    Note

    Eaton formerly known as Moeller

    Specifications

    AttributeValue
    Power Rating4 kW
    Motor Starter TypeDOL
    Voltage Rating400 V ac
    IP RatingIP65
    Number of Poles3P
    Motor Starter FunctionalityAutomatic
    Additional FeaturesDisconnect Switch Included
    Overall Length200mm
    EnclosureYes
    Overall Width120mm
    Overall Depth160mm
    SeriesEaton Moeller
