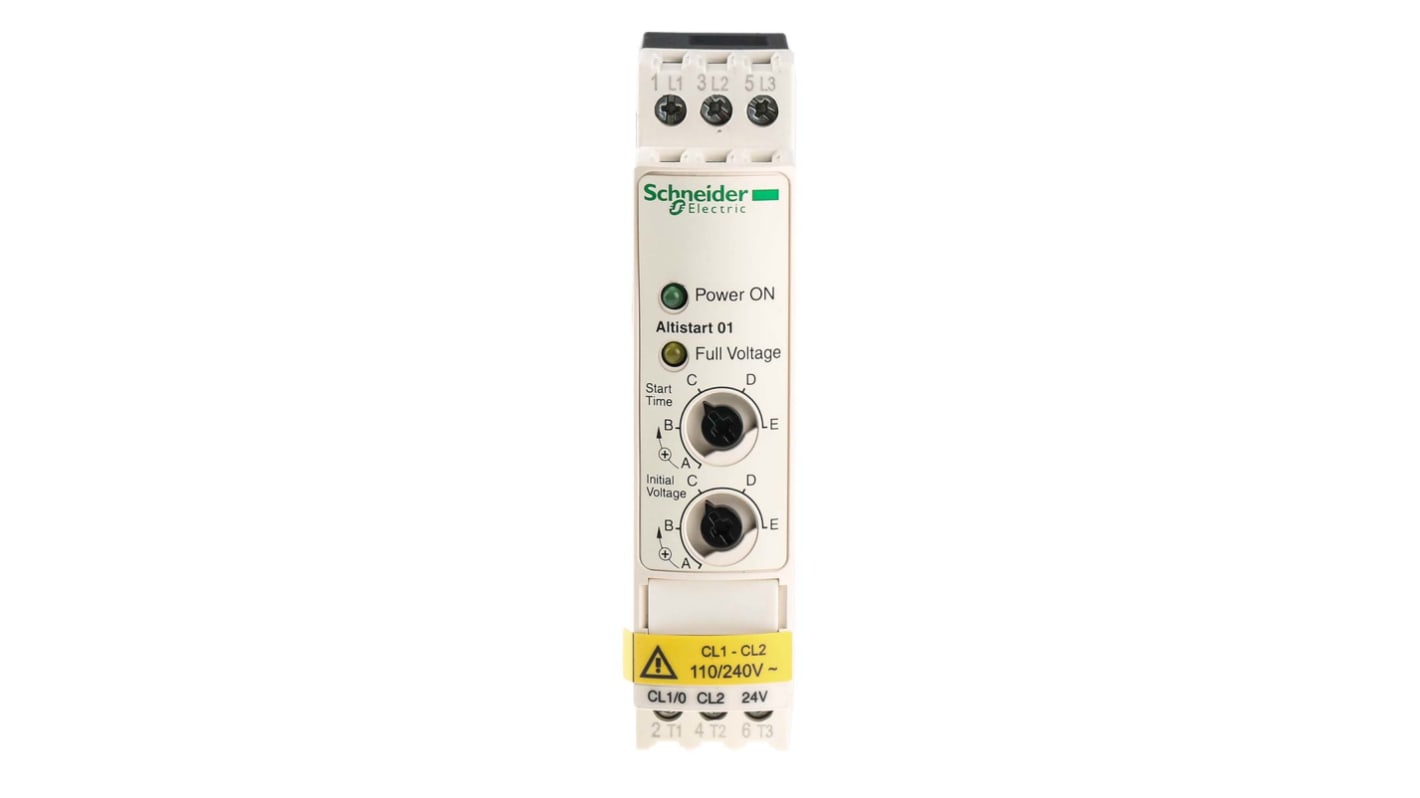

Schneider Electric Altistart 01 Soft Starter, , 2.2 kW, 480 V ac, 3 Phase, IP20

View all Motor Starters

Subtotal (1 unit)*

£192.57

(exc. VAT)

£231.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
  • Plus 6 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£192.57

*price indicative

RS Stock No.:
478-4702
Distrelec Article No.:
304-01-254
Mfr. Part No.:
ATS01N106FT
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Power Rating

2.2 kW

Motor Starter Type

Soft Start

Range

Altistart 01

Voltage Rating

480 V ac

Phase

3

Current Rating

6 A

IP Rating

IP20

Overall Length

100mm

Overall Width

23mm

Mounting Type

DIN Rail

Series

ATS01

Overall Depth

100mm

Standards Met

CSA, UL

RoHS Status: Exempt

COO (Country of Origin):
DE

Schneider Electric ATS01 Series Soft Starter, DIN Rail Mount, IP20 - ATS01N106FT


This soft starter is designed for asynchronous motors, optimising performance with emphasis on efficiency and reliability. It is a crucial element in automating motor operations, facilitating smooth start-ups and effective control across various industrial environments.

Features & Benefits


• Provides controlled current ramp-up to minimise mechanical stress
• Integrated bypass function enhances operating efficiency
• Adjustable starting time from 1 to 5 seconds
• Compact design allows easy installation on DIN rail

Applications


• Controls the start of simple machines
• Applicable for synchronous and asynchronous motor uses
• Ideal for settings where current limitations are significant

What voltage range does it operate within?


It operates within a voltage range of 110V to 480V, catering to various supply situations.

What are the implications of the IP20 rating?


The IP20 rating indicates the product is protected against solid objects larger than 12.5mm but is unsuitable for wet conditions, making it ideal for indoor usage.

How does the integrated bypass function enhance efficiency?


The integrated bypass reduces power dissipation once the motor reaches full speed, leading to energy savings and decreased heat generation during operation.
