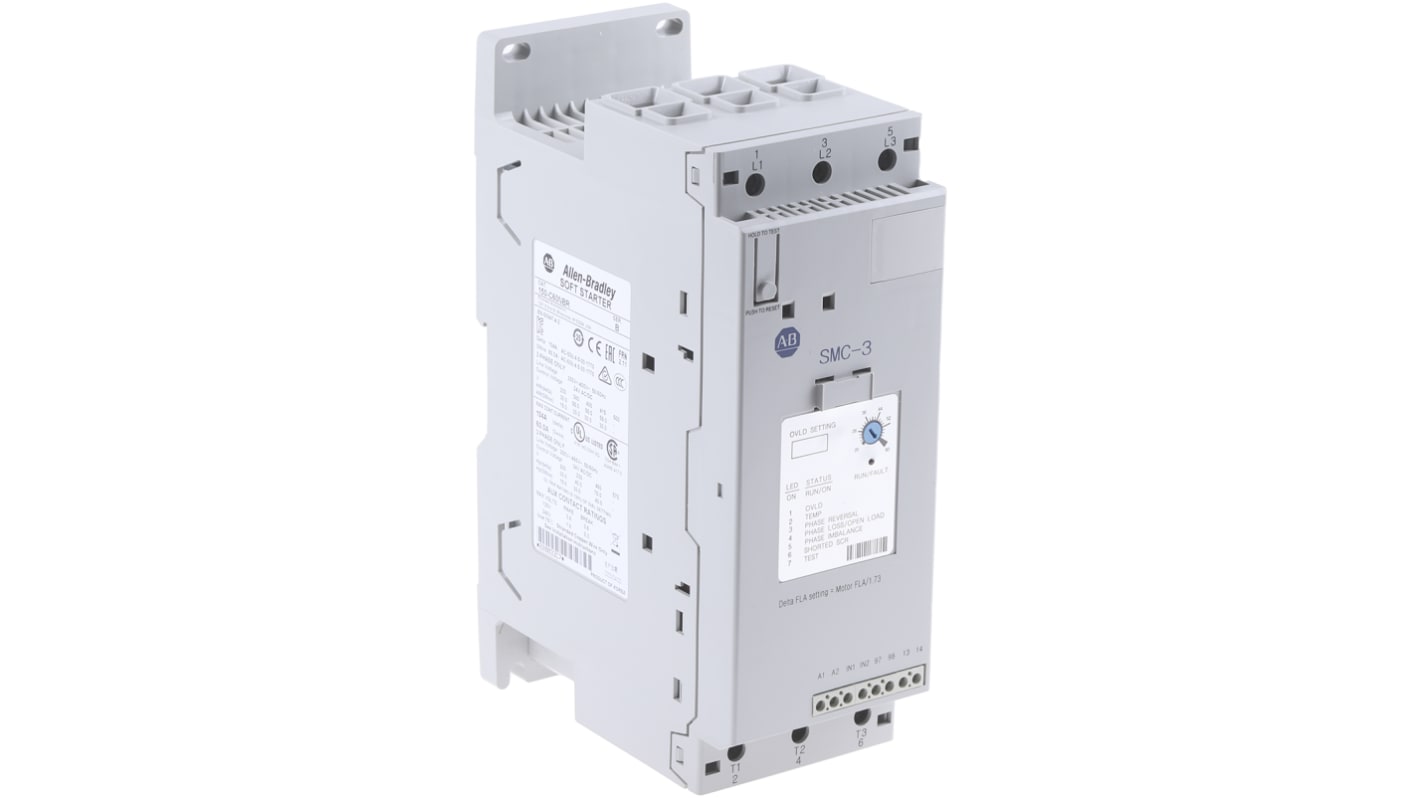

The SMC-3 solid-state soft starter by Allen Bradley is low voltage, compact, and cost-effective Smart Motor Controller that features true three phase control, for superior speed control and a smoother, safer motor start-up and stop. The SMC-3 includes overload protection, integral bypass, and motor and system diagnostics to provide you with a flexible electrical motor control solution which reduces downtime and improves productivity.

The embedded bypass automatically closes when the motor has reached full speed to minimise heat generation. For fast diagnostics the SMC-3 also features a Hold To Test/Push To Reset button, which detects faults and enables the device to be reset. The LED display provides immediate status indication and assists with troubleshooting. Due to its convenient compact size this device uses less panel space and offers ease-of-installation. DIP switches ensure that set-up is efficient and secure, as they allow setting of the START/STOP profile, built-in overload, connection type, trip class and auxiliary contact characteristics.

Integration of the SMC-3 in your electrical motor control system results in less stress/shock to mechanical components due to decreased start-up torque, helping to extend the lifespan of your equipment. It protects against machine damage as line and motor diagnostics detect single-phase conditions. System maintenance is reduced due to lower peak currents during start-up, which lowers operating costs.

Allen Bradley offer a range of smart motor starters that will ensure reliable high performance and precision, giving you a long-lasting solution for your application.

• Quick, easy installation due to simple user interface
• Includes built-in silicon-controlled rectifier (SCR) bypass/run contactor
• Provides 3 to 480 A current range to suit your requirements
• Uses rated voltage: 200…690V AC, 50/60 Hz
• Includes five start and stop modes
• Provides embedded programmable electronic motor overload protection (DIP switch selectable - Trip class 10, 15 or 20)
• Includes a hold-to-test/push-to-reset button to allow fault finding and simple reset, reducing downtime
• Simplified and secure set-up using DIP switches
• Programming via Connected Components Workbench™ software
• Designed for full integration with the Allen-Bradley MCS range

Pumps
Conveyors
Fans
Lifts
Mixers
Chillers

Additional Information:
Frame size 1: 45mm wide, 3 phase control facilitating true soft start capability up to 20kW
Frame size 2: 72mm wide, 3 phase control facilitating true soft start capability up to 45kW
Seven ratings covering 3A to 37A
Phase rotation checking
Two control voltage ratings: 418-6934 24Vac/dc and 418-6861 100V to 240Vac. 50/60Hz over to 0 to 40°C
DIP switch-selectable starting methods (soft start 2 to 15 seconds, current limit, kick-start) and stopping methods (soft stop 100%, 200% or 300% of start time, coast to rest)

kW ratings based on current limit value of 350%. Product should always be selected by Motor Full Load Current

Turn to this soft starter from Rockwell Automation's Allen Bradley range to safely start electric motors in industrial environments. This component's built-in silicon-controlled rectifier (SCR) contactor automatically closes when the motor has reached full speed, reducing heat generation and improving performance. Its light-emitting diode (LED) indicator clearly displays device status, making troubleshooting quick and easy. This starter has a power rating of 30kW, so it's a practical component in heavy-duty industrial applications like conveyors as well as heating, ventilation and air conditioning (HVAC) systems.

• IP2X (ingress protection) rated to withstand solid objects larger than 12.5mm in diameter• Compact dimensions of 130 (length), 72 (width) and 206mm (depth) for setups with limited space• 'Hold To Test/Push To Reset' button for quick fault detection and reset• Compatible with CCW (Connected Components Workbench) software for convenient configuration

• UL (Underwriters' Laboratory)• CSA (Canadian Standards Association)• IEC (International Electrotechnical Commission)

Maintain this soft starter by removing any dust regularly, as dust accumulation may cause overheating that could damage the device. You can clean the unit with a dry brush or an air blower.

Soft starters were developed to overcome the drawbacks of direct on line (DOL) and star-delta starting of single and three phase a.c. induction motors, such as high starting currents, voltage peaks and mechanical snatch. Allen Bradley motor starters provide advantages such as energy saving through reduced peak kVA, reduced starting torque, prolonged equipment life, minimised voltage dip problems, allowing minimum cable conductor size, and elimination of high current transients; when a 3-phase motor changes from Star to Delta.
