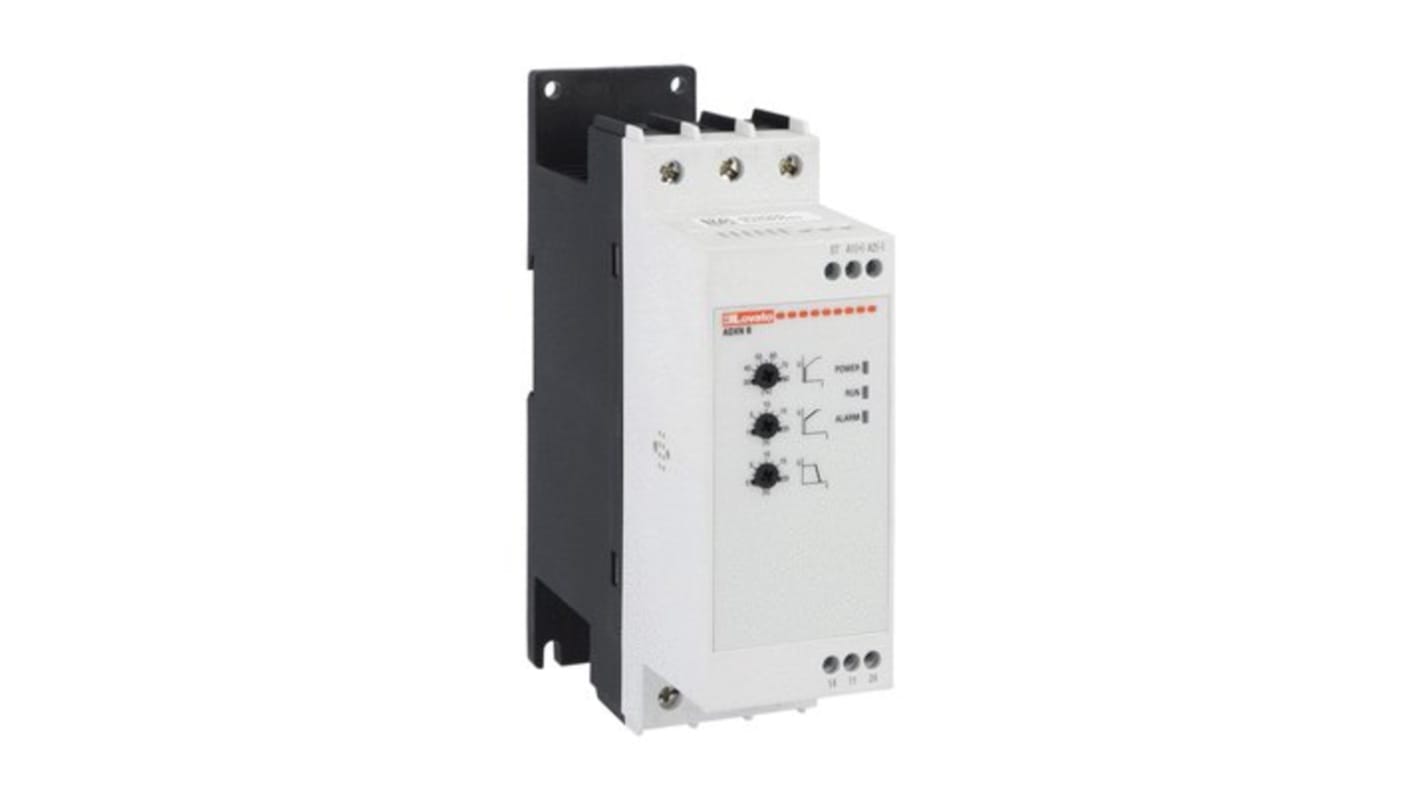

Lovato ADXNB Motor Starter 240V ac, 18.5 kW, 3 Phase, IP20
- RS Stock No.:
- 276-5503
- Mfr. Part No.:
- ADXNB030
- Brand:
- Lovato
Subtotal (1 unit)*
£218.99
(exc. VAT)
£262.79
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £218.99 |
*price indicative
- RS Stock No.:
- 276-5503
- Mfr. Part No.:
- ADXNB030
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Power Rating | 18.5kW | |
| Product Type | Motor Starter | |
| Number of Phases | 3 | |
| Mount Type | DIN Rail, Screw | |
| IP Rating | IP20 | |
| Maximum Supply Voltage | 240V ac | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC/EN/BS 60947-4-2, CSA, IEC/EN/BS 60947-1, UL 60947-4-2 | |
| Overall Width | 45mm | |
| Series | ADXNB | |
| Overall Depth | 128.4mm | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Power Rating 18.5kW | ||
Product Type Motor Starter | ||
Number of Phases 3 | ||
Mount Type DIN Rail, Screw | ||
IP Rating IP20 | ||
Maximum Supply Voltage 240V ac | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC/EN/BS 60947-4-2, CSA, IEC/EN/BS 60947-1, UL 60947-4-2 | ||
Overall Width 45mm | ||
Series ADXNB | ||
Overall Depth 128.4mm | ||
- COO (Country of Origin):
- IT
The Lovato Soft starter comes with integrated bypass relay, analog input and output. It provides protection against phase inversion, locked rotor and low load. It can be mounted either by screw fixing or DIN rail.
Built in display and keypad
IP20 protection class
CSA Compliant
EAC and cULus certified
