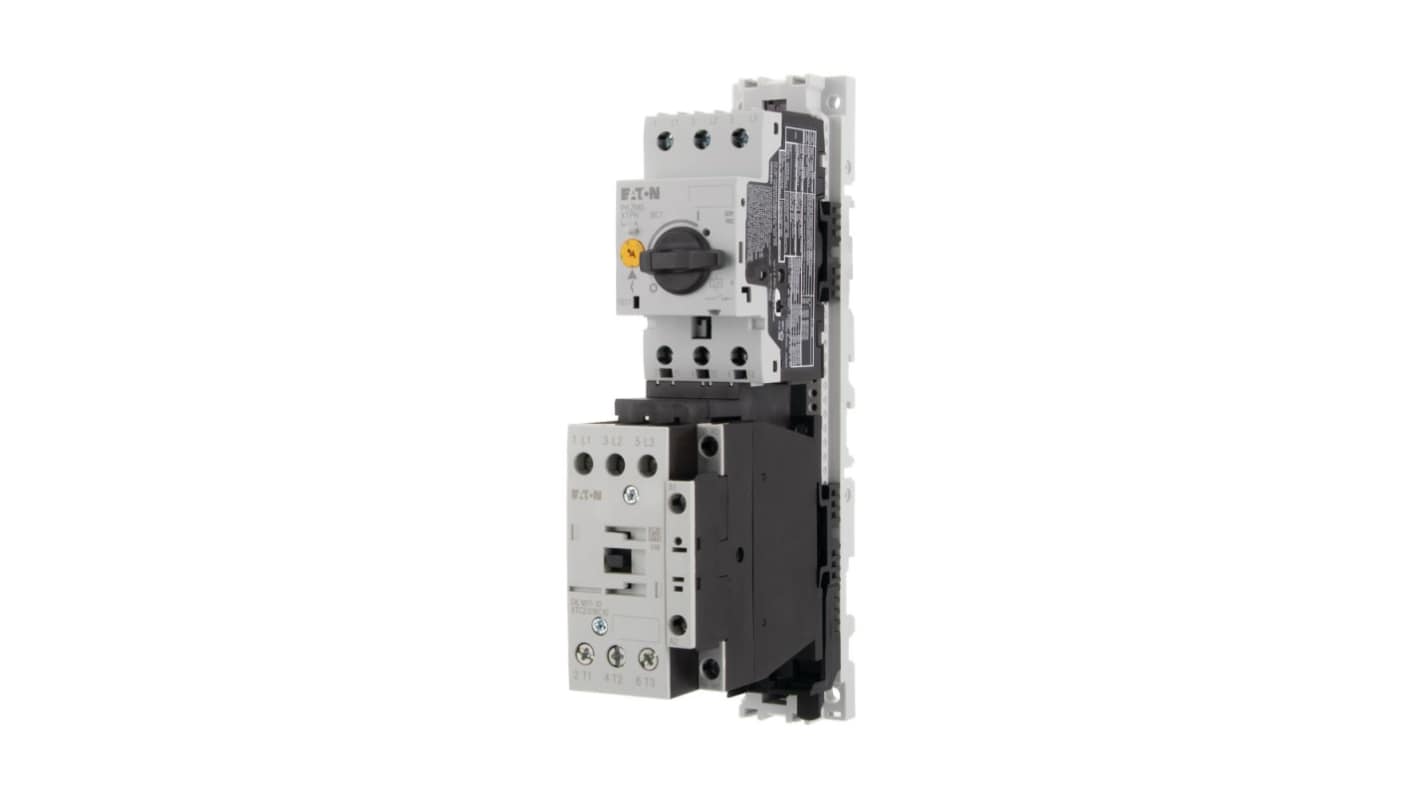

Eaton Eaton Moeller DOL Starter, DOL, 415V ac, 7.5 kW, 3 Phase
- RS Stock No.:
- 256-898
- Mfr. Part No.:
- 283150 MSC-D-16-M17(230V50HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£266.82
(exc. VAT)
£320.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £266.82 |
*price indicative
- RS Stock No.:
- 256-898
- Mfr. Part No.:
- 283150 MSC-D-16-M17(230V50HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 7.5kW | |
| Product Type | DOL Starter | |
| Sub Type | DOL | |
| Number of Phases | 3 | |
| Current Rating | 16A | |
| IP Rating | IP00 | |
| Number of Poles | 2 | |
| Overall Length | 228mm | |
| Maximum Voltage | 415V ac | |
| Standards/Approvals | CE IEC/EN 60947-4-1, CSA-C22.2 No. 60947-4-1-14, CSA Class No.:3211-24, CSA File No.:012528, UL 60947-4-1, UL Category Control No.:NLRV, UL File No.:E36332, VDE 0660 | |
| Hazardous Area Certification | NO | |
| Overall Width | 45mm | |
| Series | Eaton Moeller | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 7.5kW | ||
Product Type DOL Starter | ||
Sub Type DOL | ||
Number of Phases 3 | ||
Current Rating 16A | ||
IP Rating IP00 | ||
Number of Poles 2 | ||
Overall Length 228mm | ||
Maximum Voltage 415V ac | ||
Standards/Approvals CE IEC/EN 60947-4-1, CSA-C22.2 No. 60947-4-1-14, CSA Class No.:3211-24, CSA File No.:012528, UL 60947-4-1, UL Category Control No.:NLRV, UL File No.:E36332, VDE 0660 | ||
Hazardous Area Certification NO | ||
Overall Width 45mm | ||
Series Eaton Moeller | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Eaton Moeller series MSC-D DOL starter is engineered for reliable motor control across varying voltage levels. Suitable for applications involving motors rated up to 7.5 kW, this device ensures robust performance under diverse environmental conditions. Its compact design accommodates limited spaces while maintaining effective thermal management through thoughtful heat dissipation mechanisms. The starter is rated for 10-16 A, offering effective overload protection facilitated by its advanced bi-metal release technology. Designed for seamless installation on DIN rails, the MSC-D starter meets rigorous industry standards, ensuring safety and efficiency in commercial and industrial environments.
Provides temperature compensated overload protection to safeguard motor functionality
Compact dimensions easily fit into confined installation spaces
Features a varied operational temperature range for versatile applications
Supports connection to SmartWire-DT for enhanced operational efficiency
Incorporates short-circuit release capabilities for increased safety
Offers a clear degree of protection that enhances system reliability
Constructed to withstand harsh environmental conditions
Supports compatibility with motors up to IE3 energy efficiency classification
