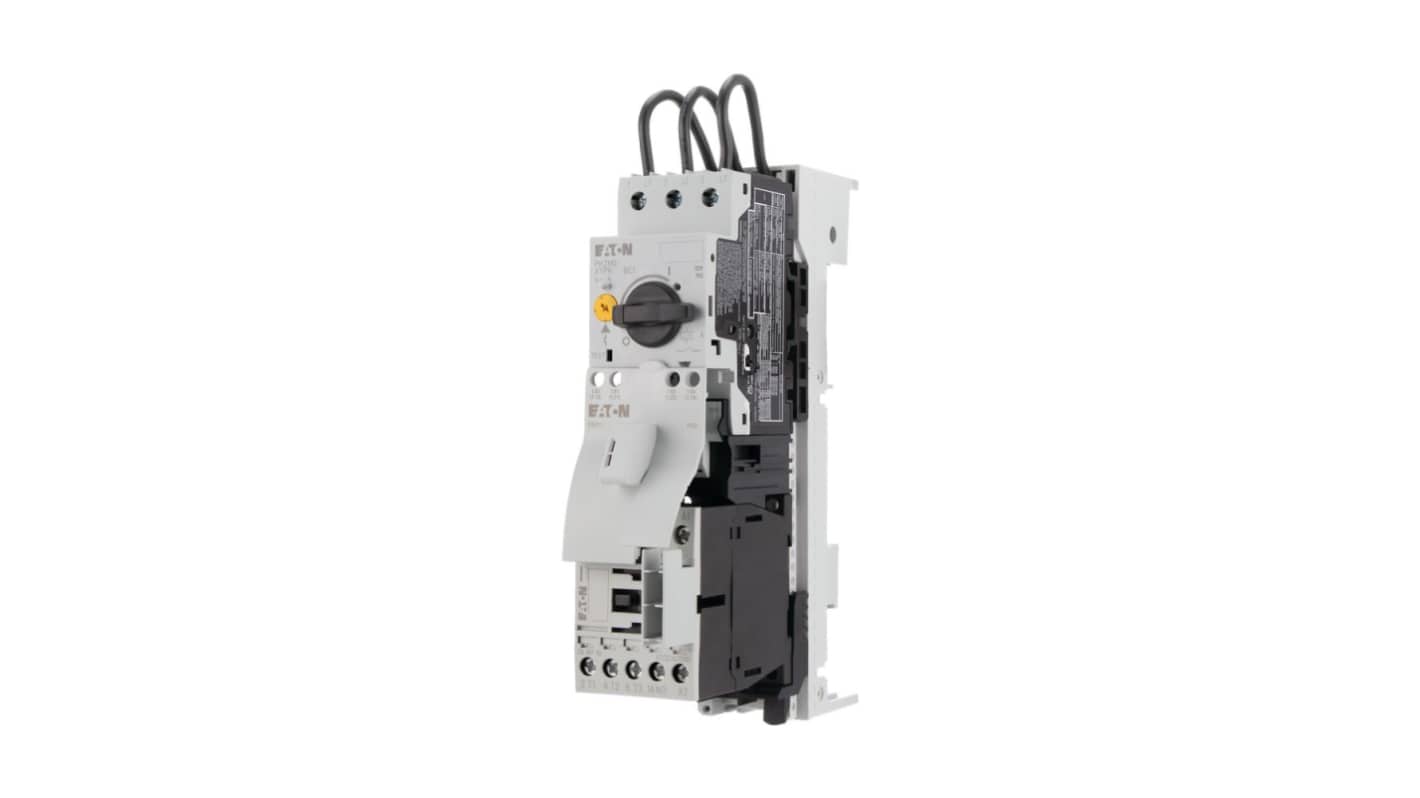

Eaton MSC-D DOL Starter, DOL, 415V ac, 2.2 kW, 3 Phase, IP20
- RS Stock No.:
- 240-612
- Mfr. Part No.:
- 102971 MSC-D-6,3-M7(24VDC)/BBA
- Brand:
- Eaton
Subtotal (1 unit)*
£264.46
(exc. VAT)
£317.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £264.46 |
*price indicative
- RS Stock No.:
- 240-612
- Mfr. Part No.:
- 102971 MSC-D-6,3-M7(24VDC)/BBA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 2.2kW | |
| Product Type | DOL Starter | |
| Sub Type | DOL | |
| Number of Phases | 3 | |
| Current Rating | 6.3 A | |
| IP Rating | IP20 | |
| Mount Type | Busbar | |
| Overall Length | 154mm | |
| Maximum Voltage | 415V ac | |
| Hazardous Area Certification | No | |
| Overall Width | 45mm | |
| Standards/Approvals | CE, CSA-C22.2 No. 14, CSA Class No.:3211-04, IEC/EN 60947-4-1, UL 508, UL File No.:E123500, UL CSA-C22.2 No. 14-10, UL60947-4-1A | |
| Overall Depth | 200 mm | |
| Series | MSC-D | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 2.2kW | ||
Product Type DOL Starter | ||
Sub Type DOL | ||
Number of Phases 3 | ||
Current Rating 6.3 A | ||
IP Rating IP20 | ||
Mount Type Busbar | ||
Overall Length 154mm | ||
Maximum Voltage 415V ac | ||
Hazardous Area Certification No | ||
Overall Width 45mm | ||
Standards/Approvals CE, CSA-C22.2 No. 14, CSA Class No.:3211-04, IEC/EN 60947-4-1, UL 508, UL File No.:E123500, UL CSA-C22.2 No. 14-10, UL60947-4-1A | ||
Overall Depth 200 mm | ||
Series MSC-D | ||
- COO (Country of Origin):
- DE
The Eaton versatile DOL starter from The Eaton Moeller series is designed for optimal performance in various industrial applications. Engineered to support a wide voltage range of 230 to 415 V AC, it efficiently handles motor loads up to 2.2 kW with a current range that accommodates up to 6.3 A. With robust thermal overload protection and a reliable short-circuit release mechanism, this starter ensures safe and efficient operation. The compact design allows for easy installation, while the IP20 rating guarantees dependable functioning in typical industrial environments. Ideal for integration with modern automation systems, this starter provides unmatched reliability and ease of use, making it an essential component for any motor control strategy.
Short-circuit release class 10 provides enhanced protection
Temperature compensated overload protection helps maintain performance
User-friendly screw terminal connections allow for easy setup
Fitted with a model suitable for IEC/UL standards ensures compliance
Mounting method on 60 mm busbars supports versatile installation
Certified with multiple international standards for global acceptance
Compact dimensions make for efficient use of installation space
Designed for environments with varying ambient temperatures
Overload release currents adjustable from 4A to 6.3A for flexibility
Compatible with motors adhering to efficiency class IE3 for energy-saving solutions
