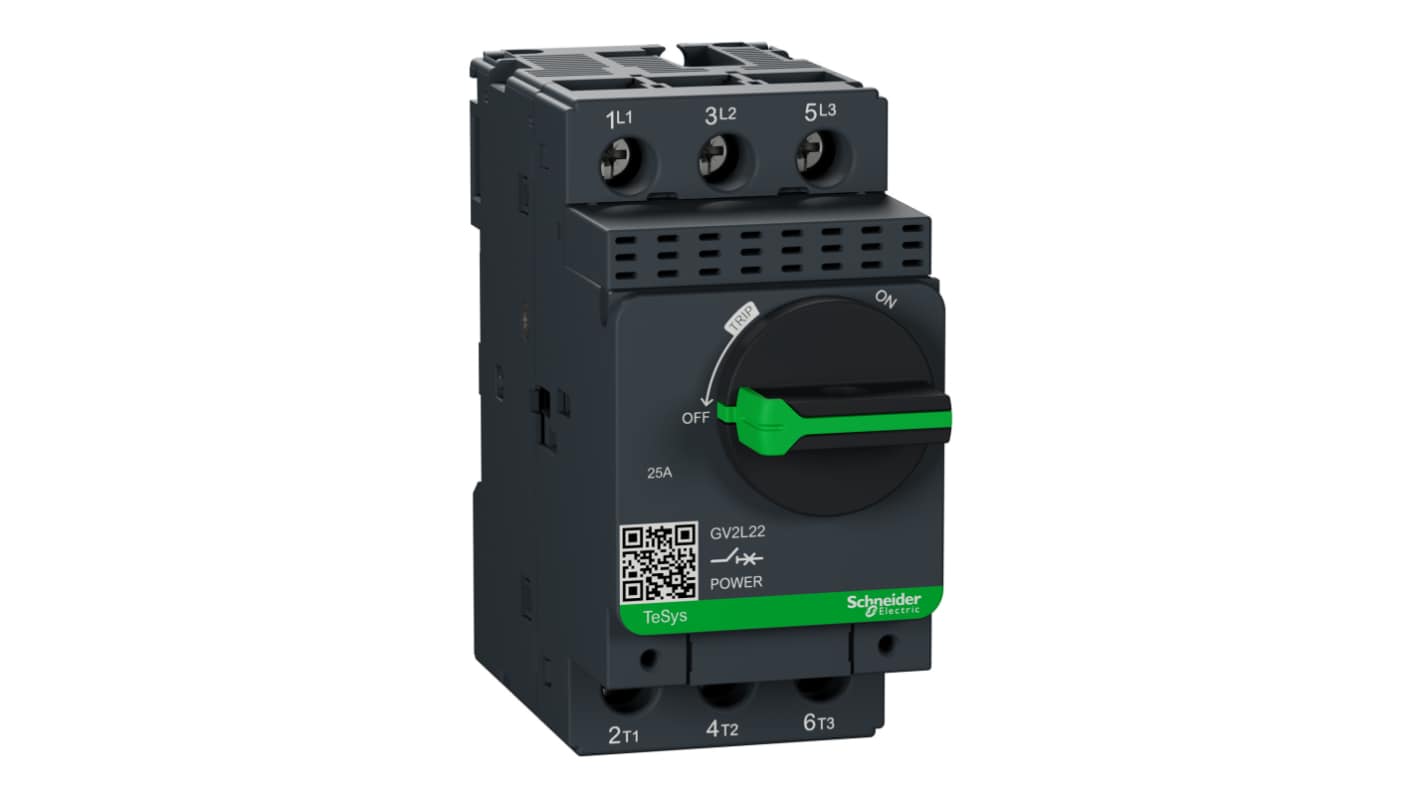

Schneider Electric 16A, 24 A TeSyS GV Motor Protection Circuit Breaker, 690V, 60 °C, -20 °C
- RS Stock No.:
- 608-8359
- Mfr. Part No.:
- GV2L22
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£126.66
(exc. VAT)
£151.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.66 |
*price indicative
- RS Stock No.:
- 608-8359
- Mfr. Part No.:
- GV2L22
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 16, 24A | |
| Product Type | Motor Protection Circuit Breaker | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690V | |
| Motor Protection System | Motor Protection Circuit Breaker | |
| Series | TeSyS GV | |
| Sensing Type | Thermal Magnetic | |
| Overall Length | 89mm | |
| Overall Width | 44.5mm | |
| Overall Depth | 97mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, RINA, REACH/RoHS, LROS, IECEE CB, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, CCC, BV, ATEX | |
| Number of Poles | 3 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 16, 24A | ||
Product Type Motor Protection Circuit Breaker | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690V | ||
Motor Protection System Motor Protection Circuit Breaker | ||
Series TeSyS GV | ||
Sensing Type Thermal Magnetic | ||
Overall Length 89mm | ||
Overall Width 44.5mm | ||
Overall Depth 97mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, RINA, REACH/RoHS, LROS, IECEE CB, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, CCC, BV, ATEX | ||
Number of Poles 3 | ||
Schneider Electric GV2L Series Motor Protection Circuit Breaker, 16 to 24A Current Rating , 3 Poles - GV2L22
This motor protection circuit breaker is an essential component for safeguarding electrical motors in various applications. It is designed by Schneider Electric, this circuit breaker operates within a current rating range of 16A to 24A. With overall dimensions of 89mm in length, 44.5mm in width, and 97mm in depth, it is Compact yet robust, making it suitable for various industrial environments.
Features & Benefits
• Protects motors by preventing overload conditions
• Operates effectively in temperatures ranging from -20 to 60 degrees Celsius
• Capable of handling a voltage rating of 690V
• Designed as a 3 pole circuit breaker for versatile usage
• Breaking capacity of 4kA ensures reliable performance
• Screw clamp Terminal type promotes secure connections
• Operates effectively in temperatures ranging from -20 to 60 degrees Celsius
• Capable of handling a voltage rating of 690V
• Designed as a 3 pole circuit breaker for versatile usage
• Breaking capacity of 4kA ensures reliable performance
• Screw clamp Terminal type promotes secure connections
Applications
• Used for electrical motor protection in industrial settings
• Ideal for controlling the performance of machinery and equipment
• Compatible with various motor types needing overload protection
• Specifically designed for requiring 3 pole configurations
• Ideal for controlling the performance of machinery and equipment
• Compatible with various motor types needing overload protection
• Specifically designed for requiring 3 pole configurations
What is the voltage handling capacity of this device?
The circuit breaker can handle a maximum voltage of 690V, making it suitable for high-power applications.
How does this circuit breaker perform in extreme temperatures?
It operates efficiently in temperatures ranging between -20 and 60 degrees Celsius , ensuring functionality in diverse environments.
What type of connections does this product support?
It features a screw clamp Terminal type, allowing for secure and stable connections to the electrical system.
What is the significance of the breaking capacity?
A breaking capacity of 4kA enhances safety by ensuring the circuit breaker can interrupt overcurrents effectively, protecting connected machinery.
Warning
Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.”
