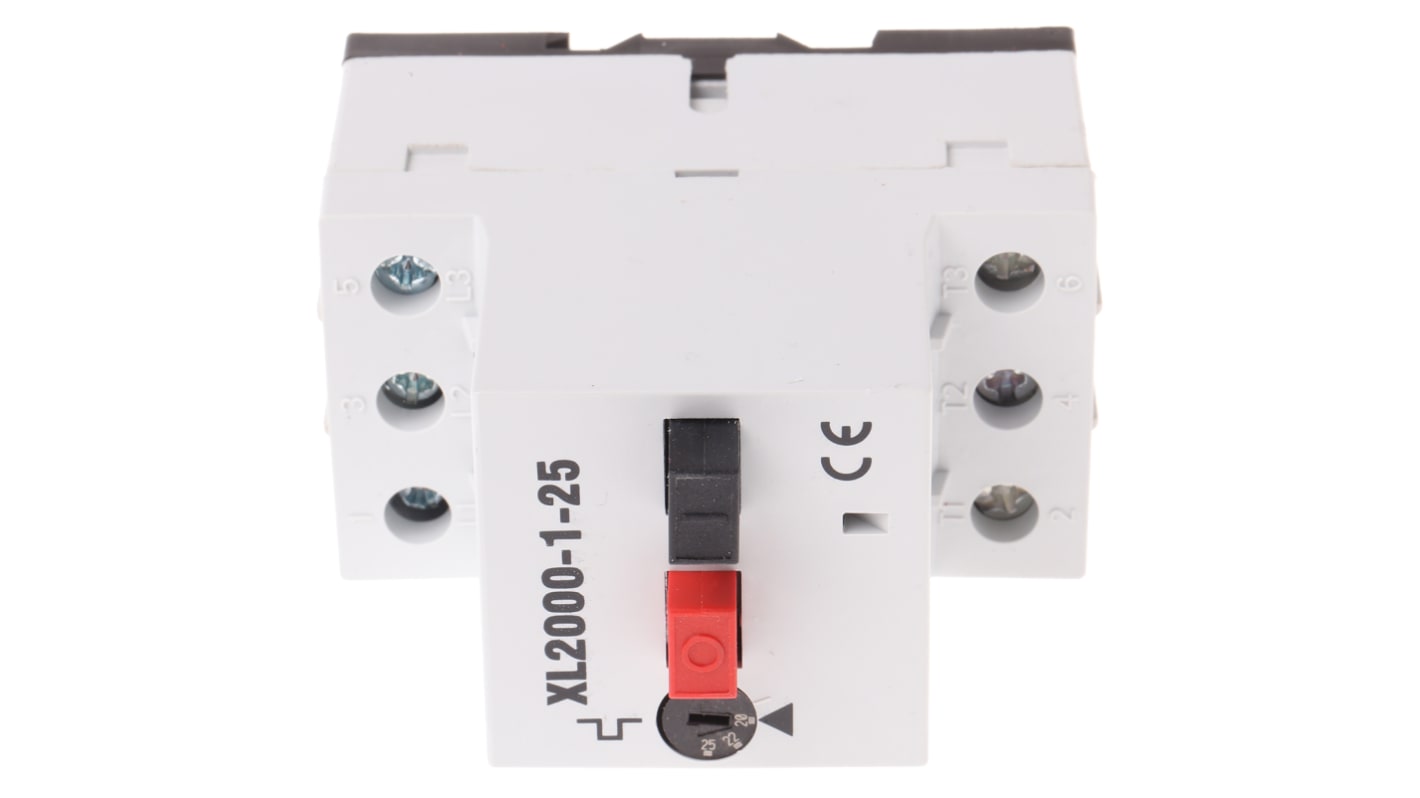

RS PRO 20 → 25 A Motor Protection Circuit Breaker
- RS Stock No.:
- 331-3680
- Brand:
- RS PRO
Subtotal (1 unit)*
£67.05
(exc. VAT)
£80.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 61 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £67.05 |
*price indicative
- RS Stock No.:
- 331-3680
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Current Rating | 20 → 25 A | |
Motor Protection Component | Circuit Breaker | |
Series | XL2000 | |
Overall Length | 80mm | |
Overall Width | 45mm | |
Overall Depth | 73.5mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Current Rating 20 → 25 A | ||
Motor Protection Component Circuit Breaker | ||
Series XL2000 | ||
Overall Length 80mm | ||
Overall Width 45mm | ||
Overall Depth 73.5mm | ||
- COO (Country of Origin):
- SI
Motor Protection Switches - XL-2000-01
Overload protection compensated -5 to +40°C
Lockable in 'OFF' position
Short circuit protection, therefore, no back-up fuse protection is required where the prospective fault level is less than the breaking capacity of the unit
Expected life cycles 0.1 x 106
Maximum switching frequency 40 operations/ hour
Ambient temperature (min/max) -25 to +55°C (open) and up to +40°C (closed)
Lockable in 'OFF' position
Short circuit protection, therefore, no back-up fuse protection is required where the prospective fault level is less than the breaking capacity of the unit
Expected life cycles 0.1 x 106
Maximum switching frequency 40 operations/ hour
Ambient temperature (min/max) -25 to +55°C (open) and up to +40°C (closed)
Standards
IEC 947-2, IEC 9474.
