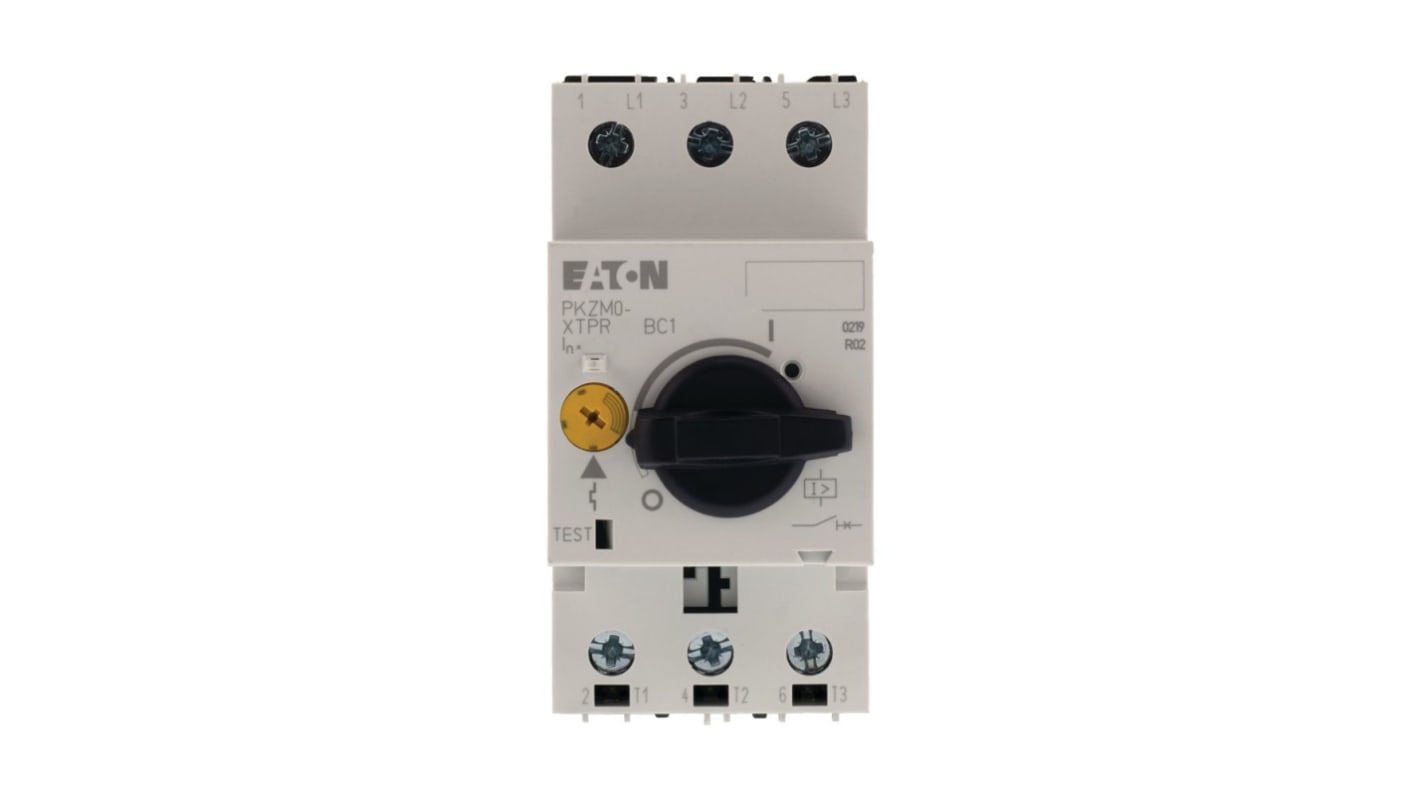

Eaton 16 → 20 A Motor Protection Circuit Breaker, 690 V ac
- RS Stock No.:
- 312-5310
- Mfr. Part No.:
- 088918 PKZM0-20-T
- Brand:
- Eaton
Subtotal (1 unit)*
£128.39
(exc. VAT)
£154.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £128.39 |
*price indicative
- RS Stock No.:
- 312-5310
- Mfr. Part No.:
- 088918 PKZM0-20-T
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 16 → 20 A | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V ac | |
| Overall Length | 93mm | |
| Overall Width | 45mm | |
| Overall Depth | 76mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 16 → 20 A | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V ac | ||
Overall Length 93mm | ||
Overall Width 45mm | ||
Overall Depth 76mm | ||
Eaton PKZM0 Series Motor Protection Circuit Breaker, 16 to 20A, 690V AC Supply Voltage - 088918 PKZM0-20-T
This motor protection circuit breaker safeguards electrical motors and transformers. With a nominal capacity of 20 A and a voltage rating of 690 V AC, it protects against overloads and short circuits, ensuring effective operation in industrial settings.
Features & Benefits
• Protects transformers with high inrush currents
• Features phase-failure sensitivity for improved reliability
• Includes a switched-off indicator for easy status monitoring
• Three-pole configuration for various applications
• Can be mounted on DIN rail for straightforward installation
• High interrupting capacity of 50 kA to handle fault conditions
• Features phase-failure sensitivity for improved reliability
• Includes a switched-off indicator for easy status monitoring
• Three-pole configuration for various applications
• Can be mounted on DIN rail for straightforward installation
• High interrupting capacity of 50 kA to handle fault conditions
Applications
• Safeguarding industrial motors in challenging environments
• Suitable for applications requiring high-breaking capacity protection
• Ideal for installations using screw terminal configurations
• Implemented in systems where overvoltage protection is vital
• Suitable for applications requiring high-breaking capacity protection
• Ideal for installations using screw terminal configurations
• Implemented in systems where overvoltage protection is vital
What is the operational temperature range for this device?
The device operates efficiently between -25°C and 55°C.
How should I install this product?
It can be easily mounted onto an IEC/EN 60715 top-hat rail.
What type of terminals does it use for connections?
It uses screw terminals for secure and reliable connections.
Can it be used in high humidity environments?
Yes, it meets the requirements for damp heat and cyclic conditions.
What is the expected lifespan of this breaker?
It has a lifespan of 100,000 operations under electrical conditions.
Note
Eaton formerly known as Moeller
