Better World

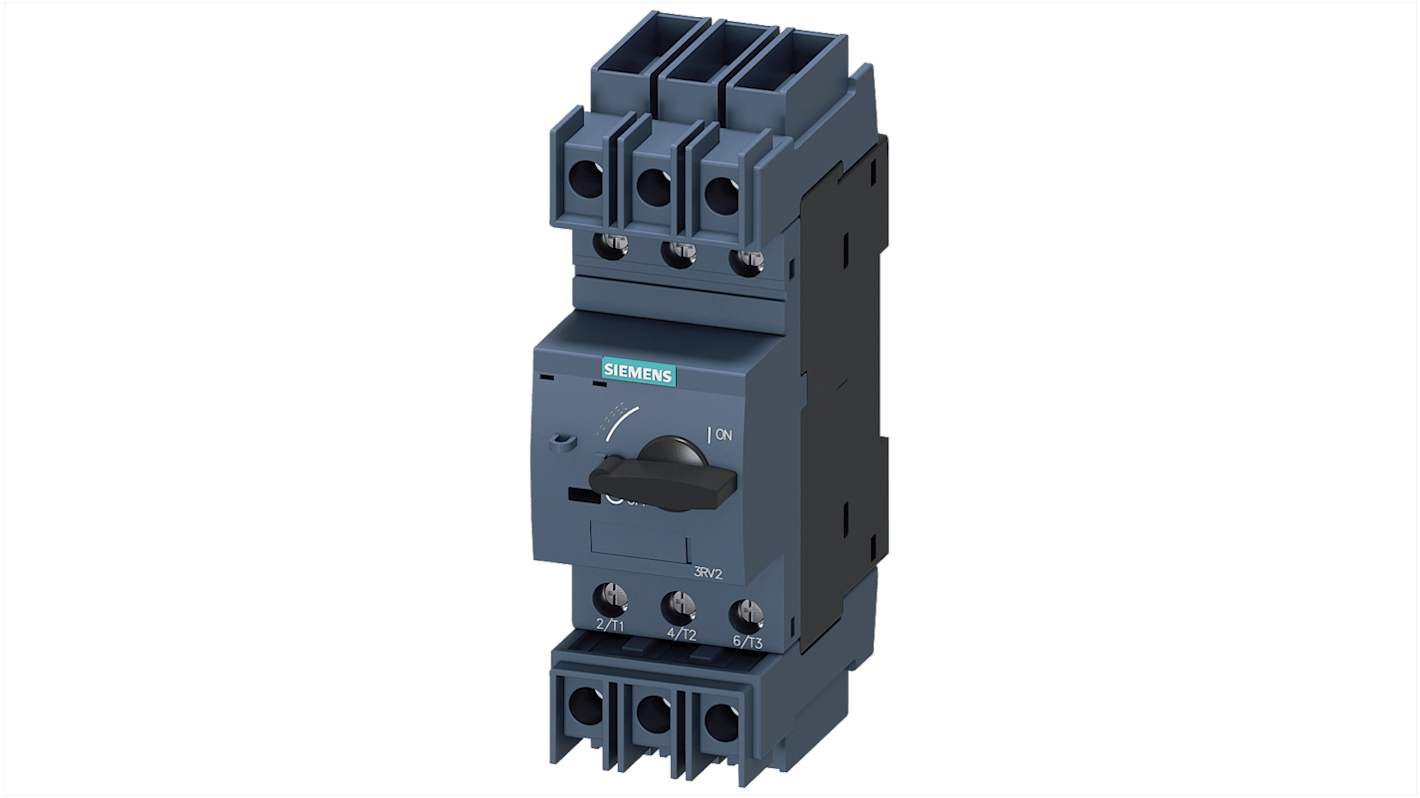

Siemens 16 A SIRIUS 3RV Motor Protection Circuit Breaker, 230 V
- RS Stock No.:
- 210-1604
- Mfr. Part No.:
- 3RV2811-4AD10
- Brand:
- Siemens
Subtotal (1 unit)*
£167.36
(exc. VAT)
£200.83
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £167.36 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 210-1604
- Mfr. Part No.:
- 3RV2811-4AD10
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Current Rating | 16 A | |
Range | SIRIUS 3RV | |
Motor Protection Component | Basic Unit | |
Supply Voltage | 230 V | |
Motor Protection System | 3RV2811 | |
Number of Inputs | 3 | |
Series | 3RV2 | |
Sensing Type | Current | |
Output | 3 | |
Better World Claim | Extended product life, Low carbon manufacture | |
Better World Product | Yes | |
Select all | ||
---|---|---|
Brand Siemens | ||
Current Rating 16 A | ||
Range SIRIUS 3RV | ||
Motor Protection Component Basic Unit | ||
Supply Voltage 230 V | ||
Motor Protection System 3RV2811 | ||
Number of Inputs 3 | ||
Series 3RV2 | ||
Sensing Type Current | ||
Output 3 | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE
The Siemens Circuit breaker size S00 for transformer protection with approval circuit breaker UL 489, CSA C22.2 No.5-02 A-release 15 A N-release 286 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For transformer protection according to UL 489/CSA C22.2 No.5 for the short-circuit protection of systems and transformers in plants configured in accordance with UL. Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks.
Simple, efficient and always up to date - SIRIUS modular system
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signalling switches etc is standardized for all sizes
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signalling switches etc is standardized for all sizes
