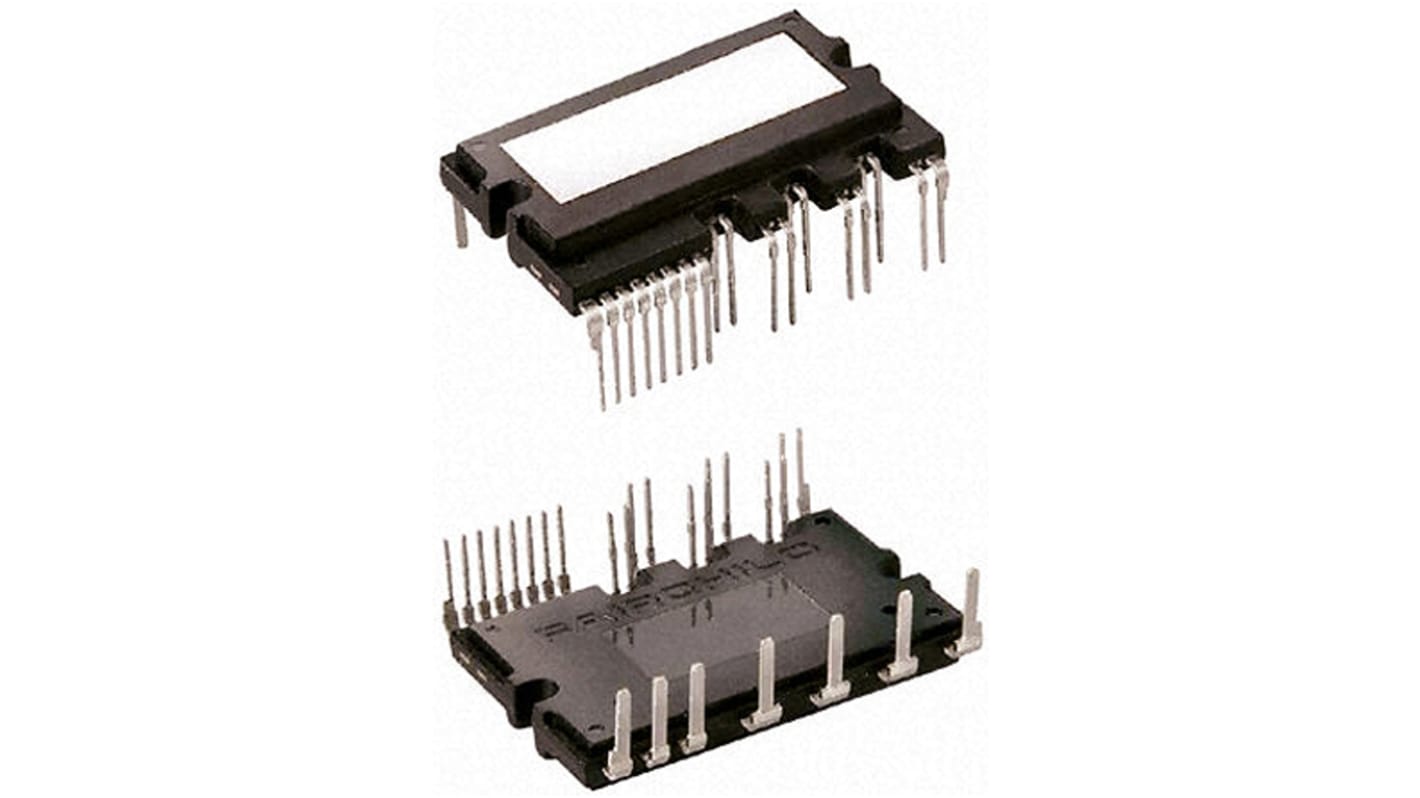

onsemi FSBB30CH60CT, AC Induction, BLDC Motor, PMSM Motor Intelligent Power Module, 600 V 30A 27-Pin, PDIP
- RS Stock No.:
- 862-9044
- Mfr. Part No.:
- FSBB30CH60CT
- Brand:
- onsemi
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
£29.16
(exc. VAT)
£34.99
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £29.16 |
| 10 - 24 | £26.89 |
| 25 - 99 | £25.69 |
| 100 - 249 | £22.69 |
| 250 + | £21.61 |
- RS Stock No.:
- 862-9044
- Mfr. Part No.:
- FSBB30CH60CT
- Brand:
- onsemi
Legislation and Compliance
Product Details
Motion SPM® 3 Series Motor Drivers, Fairchild Semiconductor
A range of advanced Smart Power Modules from Fairchild Semiconductor which provide compact high performance solutions for many inverter motor drive applications. The modules integrate optimized gate drive for the built-in power MOSFETs to minimize EMI and losses and also include multiple on-module protection features including under-voltage lockouts and thermal monitoring. The modules are suitable for driving AC Induction, BLDC (Brushless DC) and PMSM (Permanent Magnet Synchronous) motors.
Motor Controllers & Drivers, Fairchild Semiconductor
Specifications
Attribute | Value |
|---|---|
| Motor Type | AC Induction, BLDC Motor, PMSM Motor |
| Output Configuration | 3 Phase |
| Maximum IGBT Collector Current | 30A |
| Maximum Collector Emitter Voltage | 600 V |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 27 |
| Maximum Operating Supply Voltage | 450 V |
| Maximum Isolation Rating | 2500Vrms |
| Series | Motion SPM 3 Series |
| Dimensions | 44.2 x 27 x 5.7mm |
| Width | 27mm |
| Height | 5.7mm |
| Length | 44.2mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
