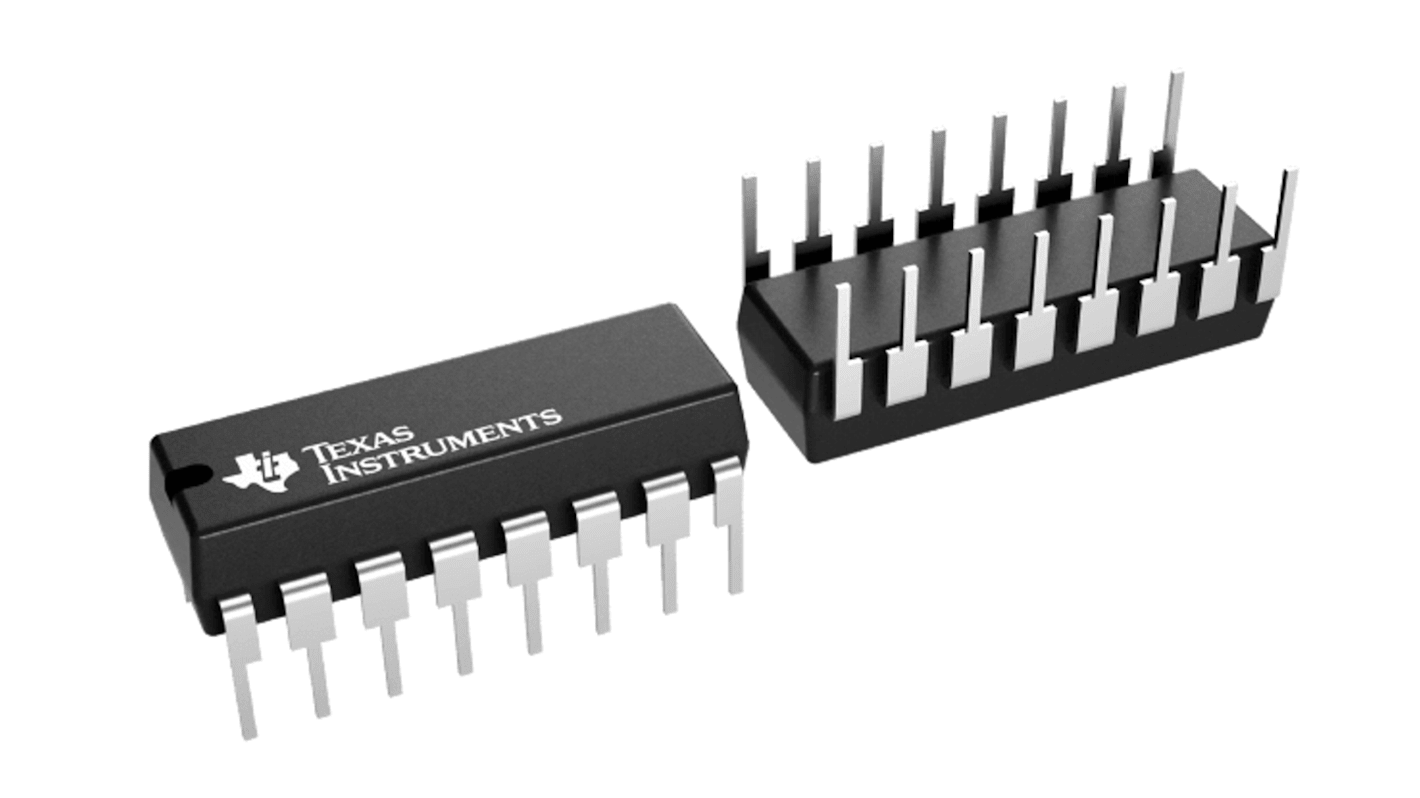

Texas Instruments, Stepper Motor Driver IC 2 A 16-Pin, PDIP
- RS Stock No.:
- 265-3576
- Mfr. Part No.:
- UC3770BN
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 tube of 25 units)*
£191.25
(exc. VAT)
£229.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 125 unit(s) shipping from 03 June 2026
- Plus 125 unit(s) shipping from 17 June 2026
- Plus 125 unit(s) shipping from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 50 | £7.65 | £191.25 |
| 75 - 275 | £6.662 | £166.55 |
| 300 + | £6.496 | £162.40 |
*price indicative
- RS Stock No.:
- 265-3576
- Mfr. Part No.:
- UC3770BN
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Motor Driver IC | |
| Motor Type | Stepper | |
| Configuration | Full Bridge | |
| Maximum IGBT Collector Current | 2A | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Output Current | 2A | |
| Minimum Supply Voltage | 50V | |
| Maximum Supply Voltage | 50V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Series | UC3770B | |
| Supply Current | 33mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Motor Driver IC | ||
Motor Type Stepper | ||
Configuration Full Bridge | ||
Maximum IGBT Collector Current 2A | ||
Package Type PDIP | ||
Pin Count 16 | ||
Output Current 2A | ||
Minimum Supply Voltage 50V | ||
Maximum Supply Voltage 50V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Series UC3770B | ||
Supply Current 33mA | ||
Automotive Standard No | ||
