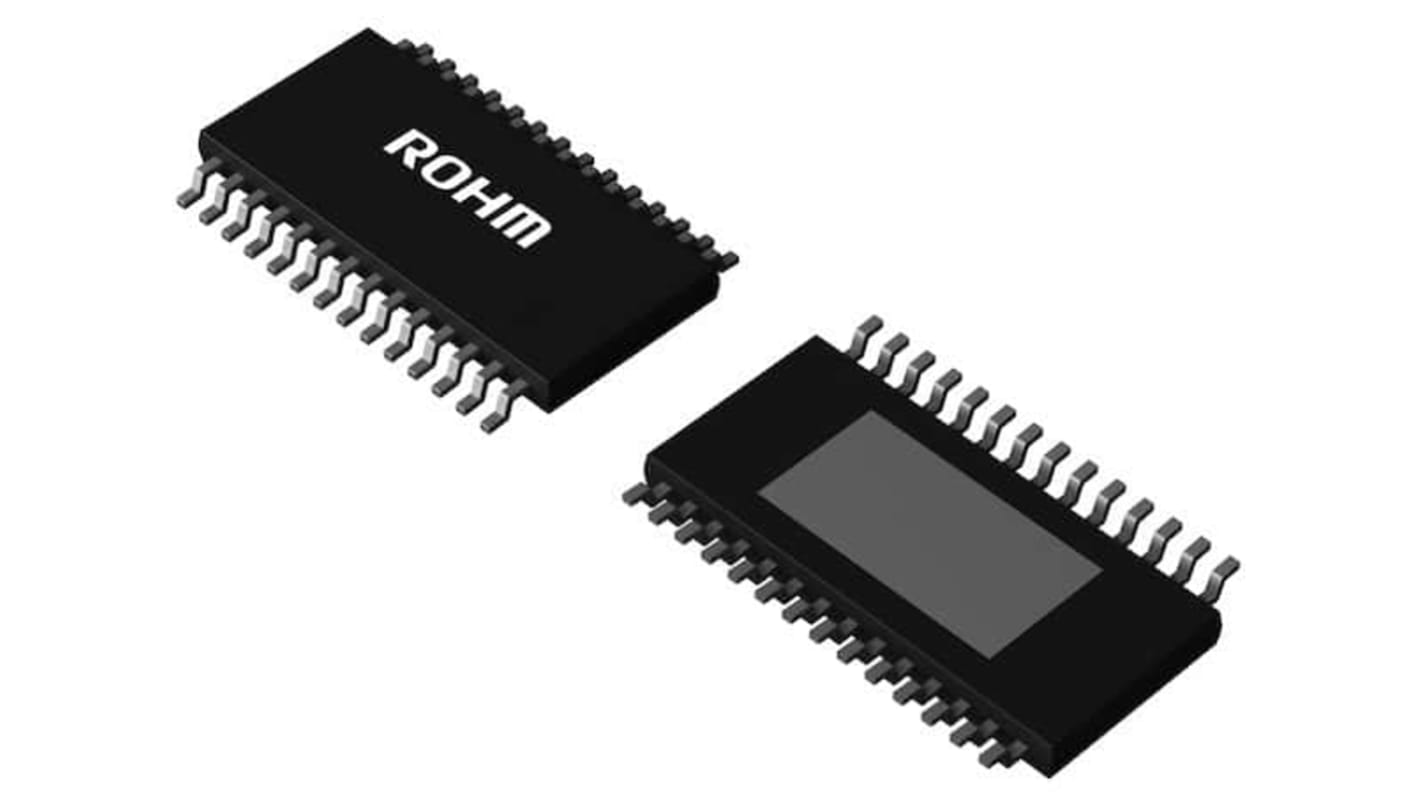

ROHM BD68720EFV-E2, Stepper Stepper Motor Driver 28-Pin, HTSSOP-B28
- RS Stock No.:
- 264-3667
- Mfr. Part No.:
- BD68720EFV-E2
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£2,445.00
(exc. VAT)
£2,935.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.978 | £2,445.00 |
*price indicative
- RS Stock No.:
- 264-3667
- Mfr. Part No.:
- BD68720EFV-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Stepper Motor Driver | |
| Motor Type | Stepper | |
| Mount Type | PCB | |
| Package Type | HTSSOP-B28 | |
| Pin Count | 28 | |
| Output Current | 2.5A | |
| Maximum Supply Voltage | 36V | |
| Minimum Supply Voltage | 19V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | BD68720EFV | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Stepper Motor Driver | ||
Motor Type Stepper | ||
Mount Type PCB | ||
Package Type HTSSOP-B28 | ||
Pin Count 28 | ||
Output Current 2.5A | ||
Maximum Supply Voltage 36V | ||
Minimum Supply Voltage 19V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series BD68720EFV | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The ROHM stepper motor driver is a bipolar low-consumption driver that driven by PWM current. Rated power supply voltage of the device is 36 V, and rated output current is 2.0 A. PARA-IN driving mode is adopted for input interface, and excitation mode is
Freely timing excitation mode switch
Under voltage lock out circuit
Adjacent pins short protection
