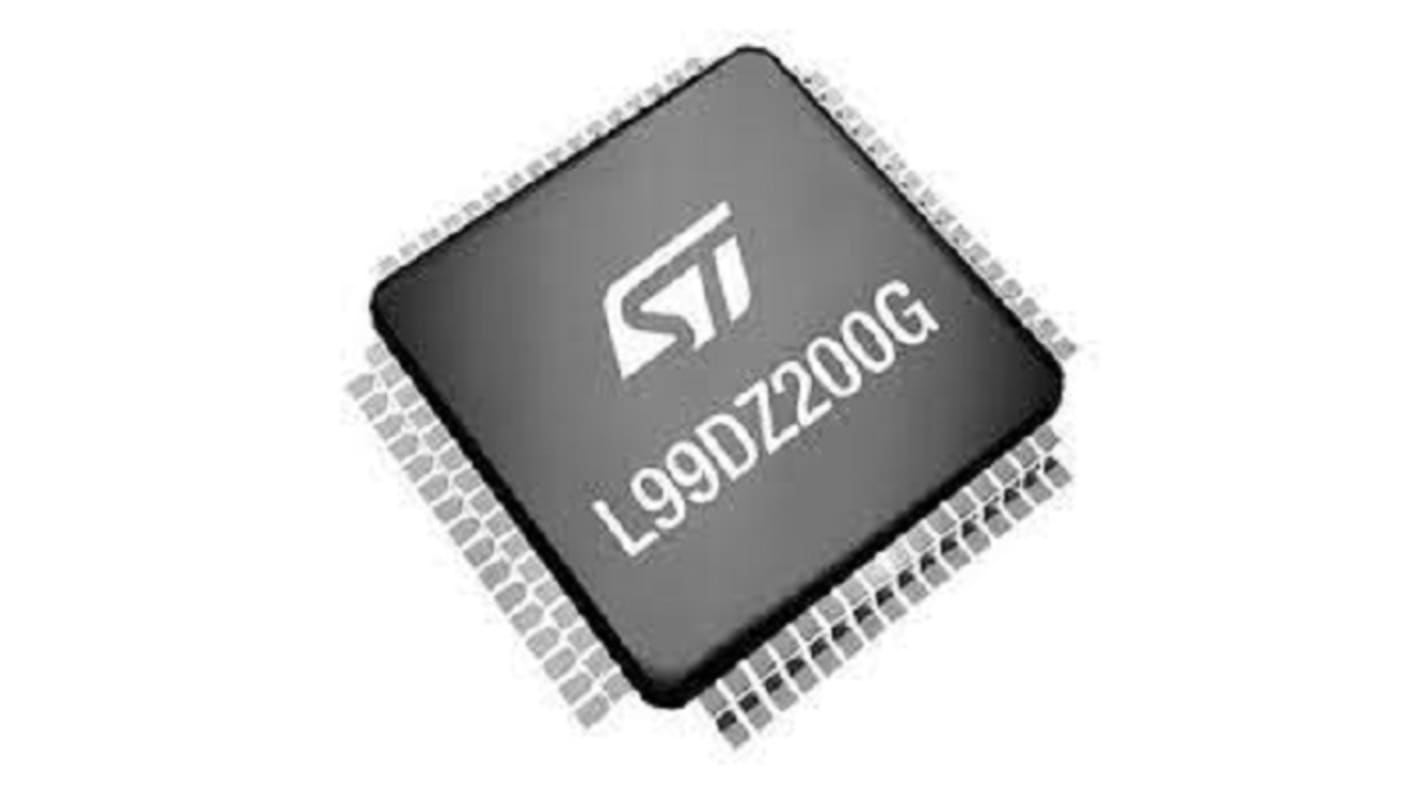

STMicroelectronics L99DZ200GTR, DC Dual H Bridge Driver 64-Pin, 64-LQFP
- RS Stock No.:
- 234-8877
- Mfr. Part No.:
- L99DZ200GTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£3,859.00
(exc. VAT)
£4,631.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £3.859 | £3,859.00 |
*price indicative
- RS Stock No.:
- 234-8877
- Mfr. Part No.:
- L99DZ200GTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Motor Type | DC | |
Output Configuration | H Bridge | |
Maximum Supply Voltage | 28 V | |
Package Type | 64-LQFP | |
Pin Count | 64 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Motor Type DC | ||
Output Configuration H Bridge | ||
Maximum Supply Voltage 28 V | ||
Package Type 64-LQFP | ||
Pin Count 64 | ||
The STMicroelectronics door zone systems IC providing electronic control modules with enhanced power management power supply functionality, including various standby modes, as well as LIN and HS CAN physical communication layers. The two low-drop voltage regulators of the device supply the system microcontroller and external peripheral loads such as sensors and provide enhanced system standby functionality with programmable local and remote wake-up capability. In addition 5 high-side drivers to supply LEDs, 2 high-side drivers to supply bulbs increase the system integration level.
Fully protected driver for external high-side MOSFET
Control block for electro-chromic element
One 5 V voltage regulators for microcontroller supply
One 5 V voltage tracker for peripheral supply
A/D conversion of supply voltages and internal temperature sensors
Embedded and programmable VS duty cycle adjustment for LED driver outputs
Generator Mode for Power Trunk/Tailgate applications
Configurable window watchdog
Control block for electro-chromic element
One 5 V voltage regulators for microcontroller supply
One 5 V voltage tracker for peripheral supply
A/D conversion of supply voltages and internal temperature sensors
Embedded and programmable VS duty cycle adjustment for LED driver outputs
Generator Mode for Power Trunk/Tailgate applications
Configurable window watchdog
